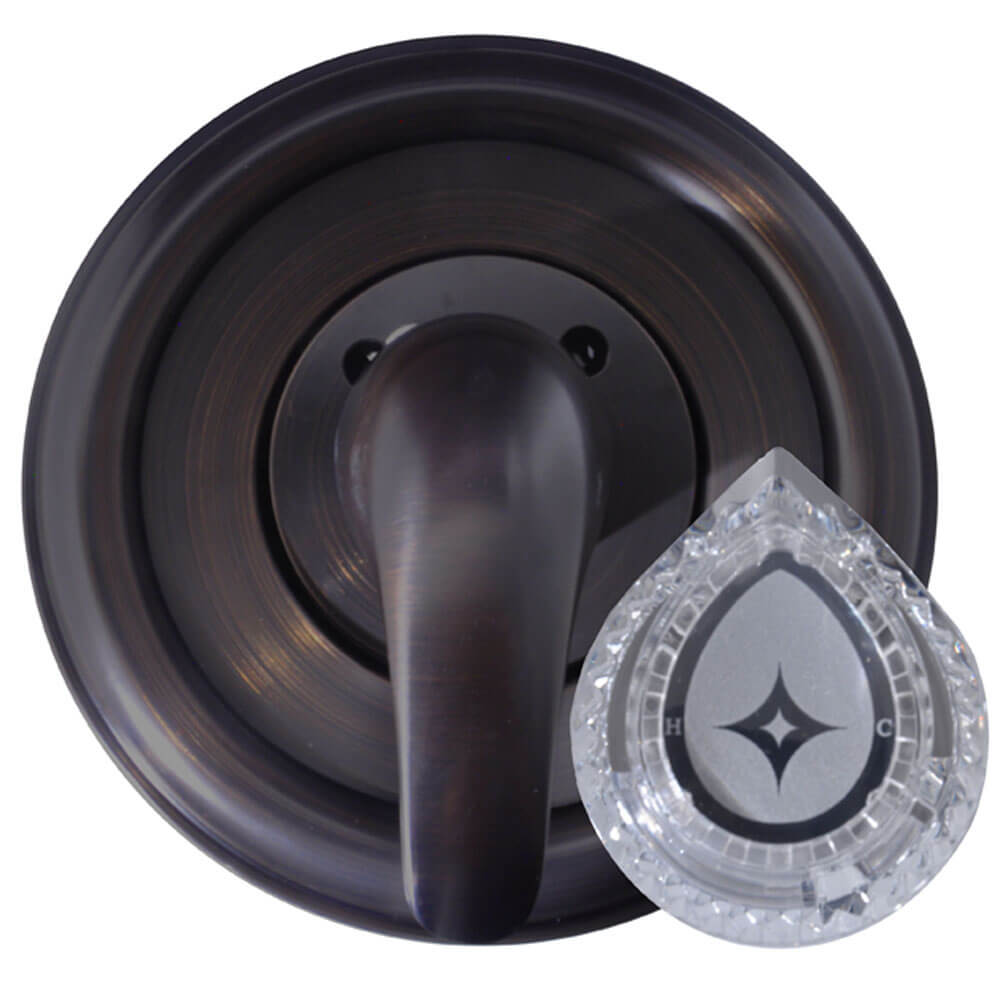

Tub/Shower Trim Kit for Moen in Oil Rubbed Bronze
Tub/Shower Trim Kit for Moen in Oil Rubbed Bronze
Tub/Shower Trim Kit for Moen in Oil Rubbed Bronze

Tub/Shower Trim Kit for Moen in Oil Rubbed Bronze

Replacing the trim on your bathroom fixtures is an easy do-it-yourself project. This Danco Trim Kit for Moen Tub/Shower Faucets allows you to update without replacing the valve. It features compatibility and includes adapters to fit Moentrol and Posi-Temp cartridge style faucets. The Trim Kit offers you a choice of design between a clear acrylic handle and 1 oil rubbed bronze finished metal handle. The plastic construction provides durability while the stainless steel material provides reliable performance.

Model # 10561
Unavailable
Danco
Not sure on the fit? Find out here Stem Finder Project Part Finder

Available at

Homedepot Lowes Amazon menards True Value
Add to My Project

Create a new project list

Categories: , ,

Product Description

Replacing the trim on your bathroom fixtures is an easy do-it-yourself project. This Danco Trim Kit for Moen Tub/Shower Faucets allows you to update without replacing the valve. It features compatibility and includes adapters to fit Moentrol and Posi-Temp cartridge style faucets. The Trim Kit offers you a choice of design between a clear acrylic handle and 1 oil rubbed bronze finished metal handle. The plastic construction provides durability while the stainless steel material provides reliable performance.

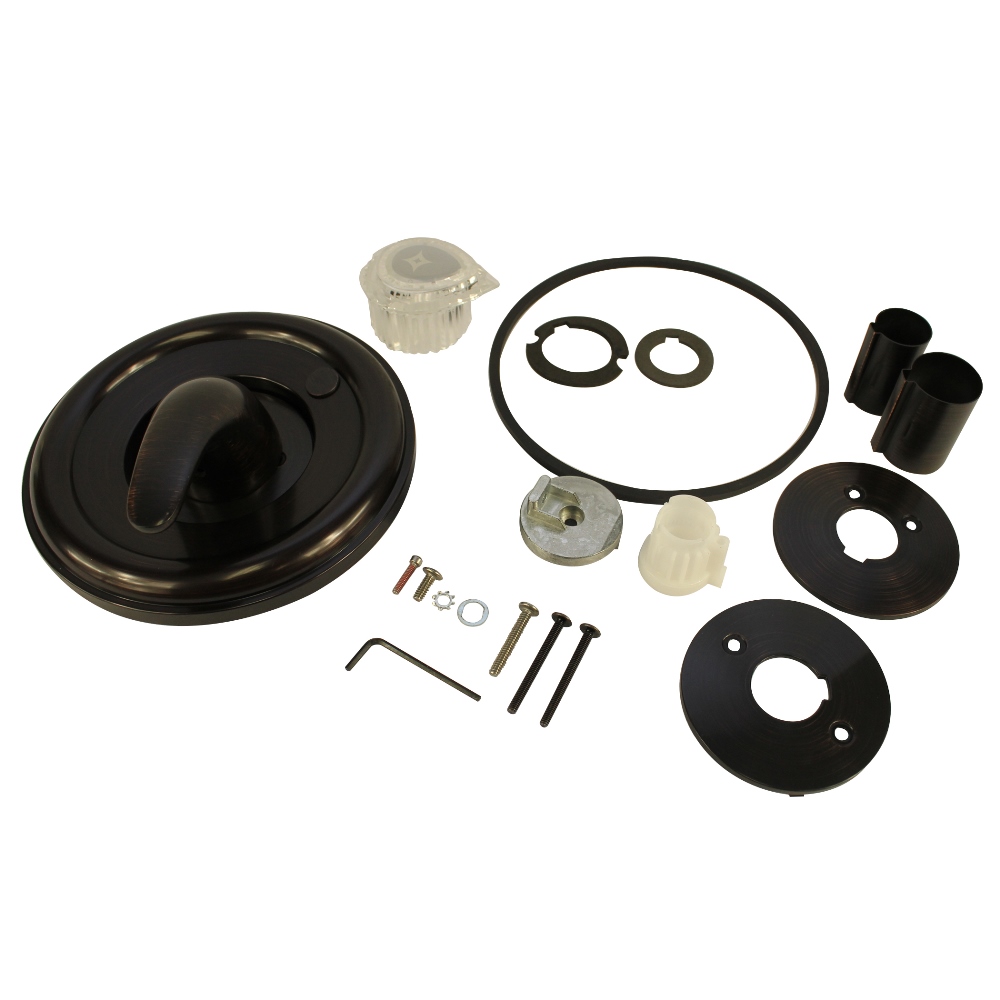

  • Durable plastic, acrylic and stainless steel construction
  • Replaces tub/shower valve trim
  • Includes adapters to fit most Moen tub/shower faucets
  • Compatible with Moentrol and Posi-Temp cartridge style faucets
    • Replaces Moentrol 220, 240, 2600 & 2700 series with and without diverters
    • Replaces Moen Posi-Temp series 2300 with and without diverters
  • Includes 1 clear acrylic handle and 1 oil rubbed bronze finished metal handle
    • Metal handle used only for valves without diverters
    • Acrylic handle: 2.75 in. x 2.35 in. x 1.6 in.
    • Metal handle: 4 in. x 2-1/16 in. x 2-3/8 in.
  • Oil Rubbed Bronze finish will give an attractive and modern look to your bathroom
  • Gives a clean and finished look to your tub/shower
  • Replaces existing kits 28951, 28951, 28961, 89273 and 89275
  • Installs with simple household tools making this an easy do-it-yourself project

Note: To properly install this product, you need a minimum of a 3-1/2 inch opening in the wall for the offset portion of the trim plate to sit back in, or else it will stick out from the wall.

Specifications

  • PKG Height (in.)10.75
  • PKG Width (in.)8.25
  • PKG Length (in.)3.81
  • PKG Weight (lb.)1.70
  • OEM BrandMoen
  • ApplicationTub / Shower
  • Product Height(in).7.50
  • Product Width(in).7.50
  • Product Length(in).0.00
  • Product Outer Diameter (in.)0.00
  • Product Inner Diameter (in.)0.00
  • MaterialPlastic
  • Product TypeTrim Kit

Reviews

There are no reviews yet.

Be the first to review “Tub/Shower Trim Kit for Moen in Oil Rubbed Bronze”

How to video

  View Instructions 10561 Download Instructions

Step-by-step instructions

Leaky tub and shower faucets are not on our list of favorite things. But they're relatively simple to fix yourself. With a few tools and the right Danco replacement part, you can fix that leaky faucet yourself. Tools and supplies required: Phillips Screwdriver, Cartridge Puller, Pliers, Needle Nose Pliers, Fine Sandpaper or Steel Wool, Silicone Grease
1
step-1

The easiest way to remove the old Cartridge is to use a Cartridge Puller. Make sure to follow the instructions for the Cartridge Puller, which can be purchased at your local home improvement store. Because Cartridges are unique to specific type of Faucets, you will want to take your old Cartridge to your local home improvement store and use the Perfect Match locator system from Danco or use the online Stem Finder. This system makes it easy to find your replacement.

2
step-2

Next, remove the Temperature Limit Stop, Key Stop, Stop Tube, and the Trim Plate (as needed to access Cartridge).

3
step-3

Remove the Retainer Clip carefully as not to drop it behind wall.

4
step-4

The easiest way to remove the old Cartridge is to use a Cartridge Puller. Make sure to follow the instructions for the Cartridge Puller, which can be purchased at your local home improvement store. Because Cartridges are unique to specific type of Faucets, you will want to take your old Cartridge to your local home improvement store and use the Perfect Match locator system from Danco or use the online Stem Finder. This system makes it easy to find your replacement.

5
step-5

Using Silicone Grease, lubricate the inside of the Valve Body about 1”. Then lubricate the Exterior Rubber Components on the Cartridge with Silicone Grease as well.

6
step-6

Insert the new Cartridge, Hot inlet Left Side, Cold inlet Right Side into the Valve Body with the tab stamped “HC” on top and with the Stem Notch down.

7
step-7

Reinstall Trim Plate with original Screws.

8
step-8

Reinstall the Retainer Clip, Stop Tube, Key Stop, and the Temperature Limit Stop, in that order.

9
step-9

Slide the Handle onto the Stem or Handle Adapter onto the Stem. Do not use Handle Screws at this point. Turn the water supply back on and test for leaks and ensure the hot water temperature is adequate. Be sure not to exceed the maximum temperature allowed by local plumbing code. Finally, secure the Handle with the Set Screw and your project is complete.
