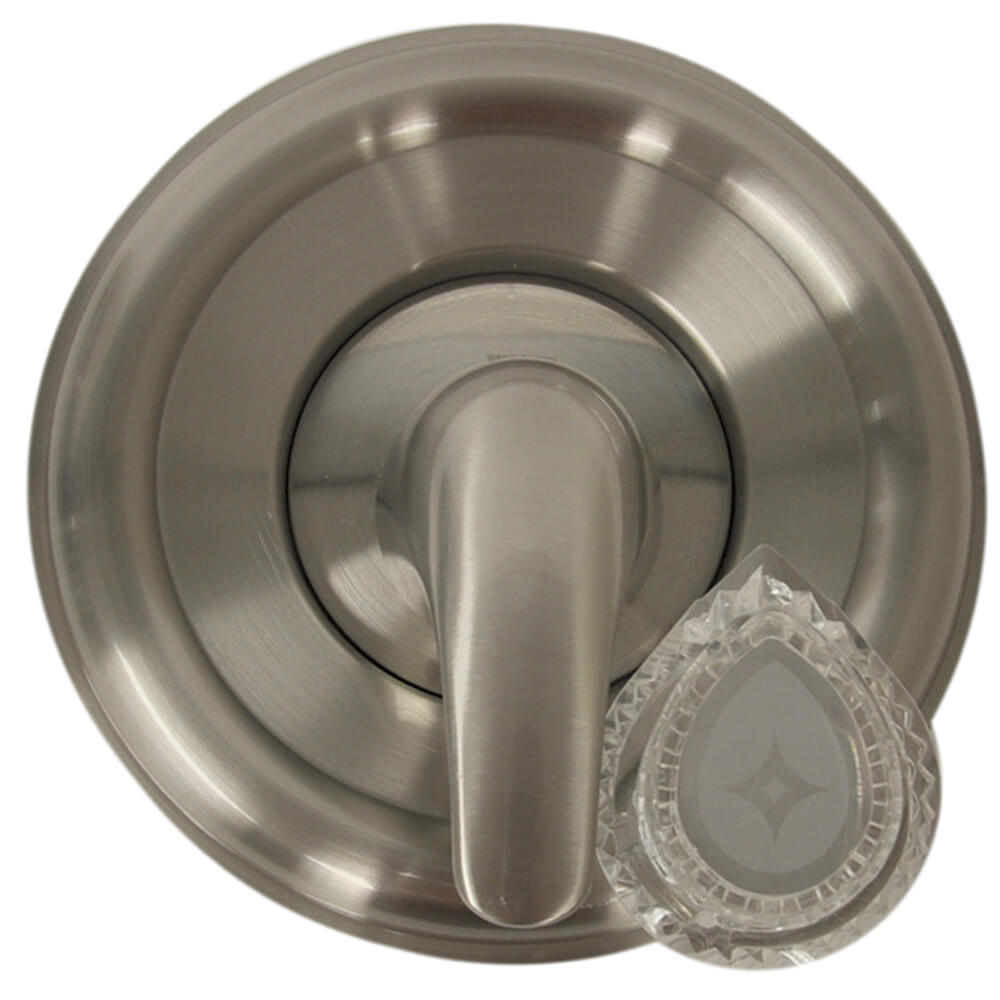

Tub/Shower Trim Kit for Moen in Brushed Nickel

Replacing the trim on your bathroom fixtures is an easy do-it-yourself project. This Danco Trim Kit for Moen Tub and Shower Faucets allows you to update without replacing the valve. It features compatibility and includes adapters to fit regular and Posi-Temp cartridge style faucets. The Trim Kit offers you a choice of design between a clear acrylic handle and a brushed nickel-finished metal handle. The plastic construction provides durability and the stainless steel material provides reliable performance.

Model # 10002
Unavailable
Danco
1.89 out of 5 based on 9 customer ratings
9 customer reviews Write a review

Available at

Create a new project list

Product Description

Replacing the trim on your bathroom fixtures is an easy do-it-yourself project. This Danco Trim Kit for Moen Tub/Shower Faucets allows you to update without replacing the valve. It features compatibility and includes adapters to fit Moentrol and Posi-Temp cartridge style faucets. The Trim Kit offers you a choice of design between a clear acrylic handle and a brushed nickel-finished metal handle. The plastic construction provides durability while the stainless steel material provides reliable performance.

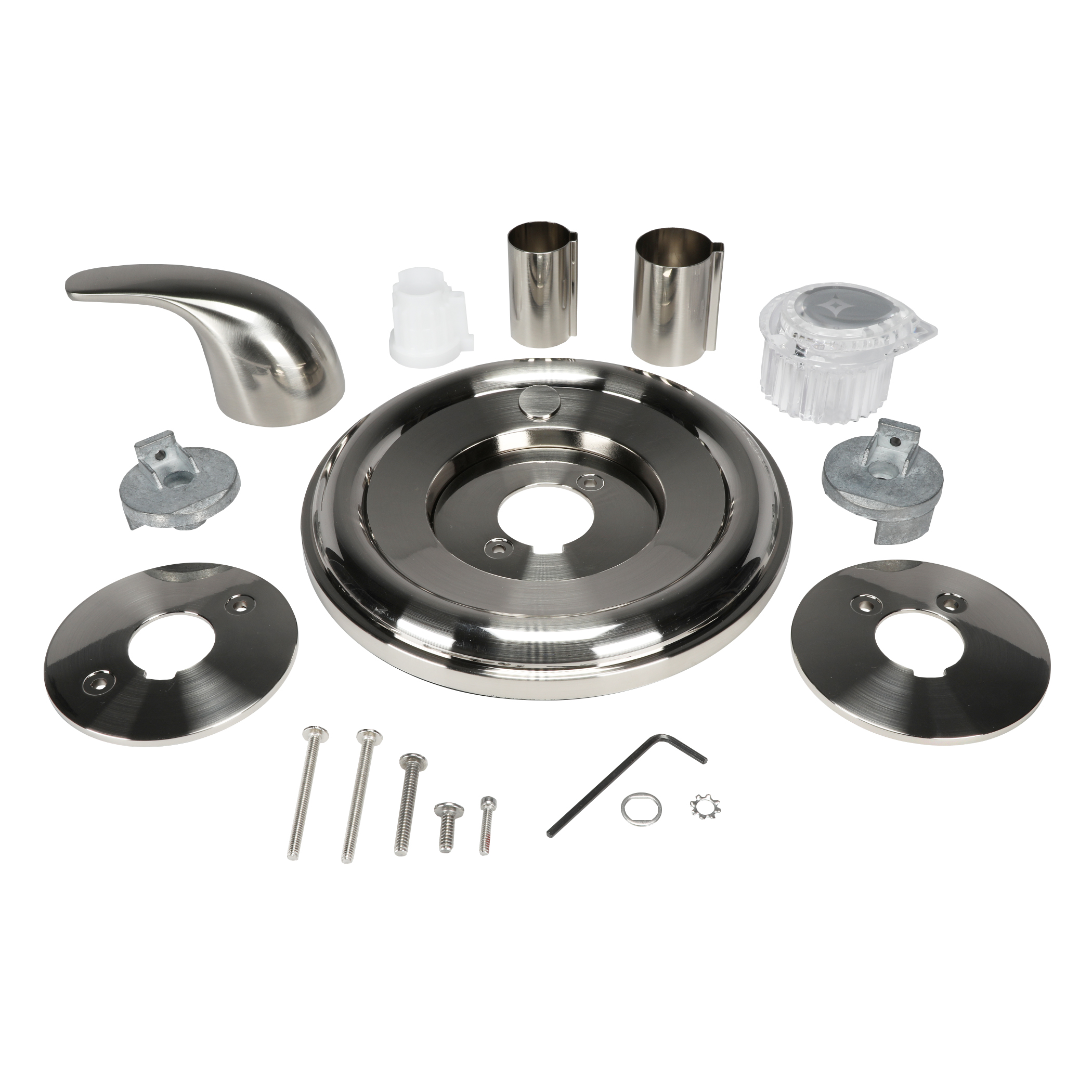

  • Durable plastic, acrylic and stainless steel construction
  • Replaces tub/shower valve trim

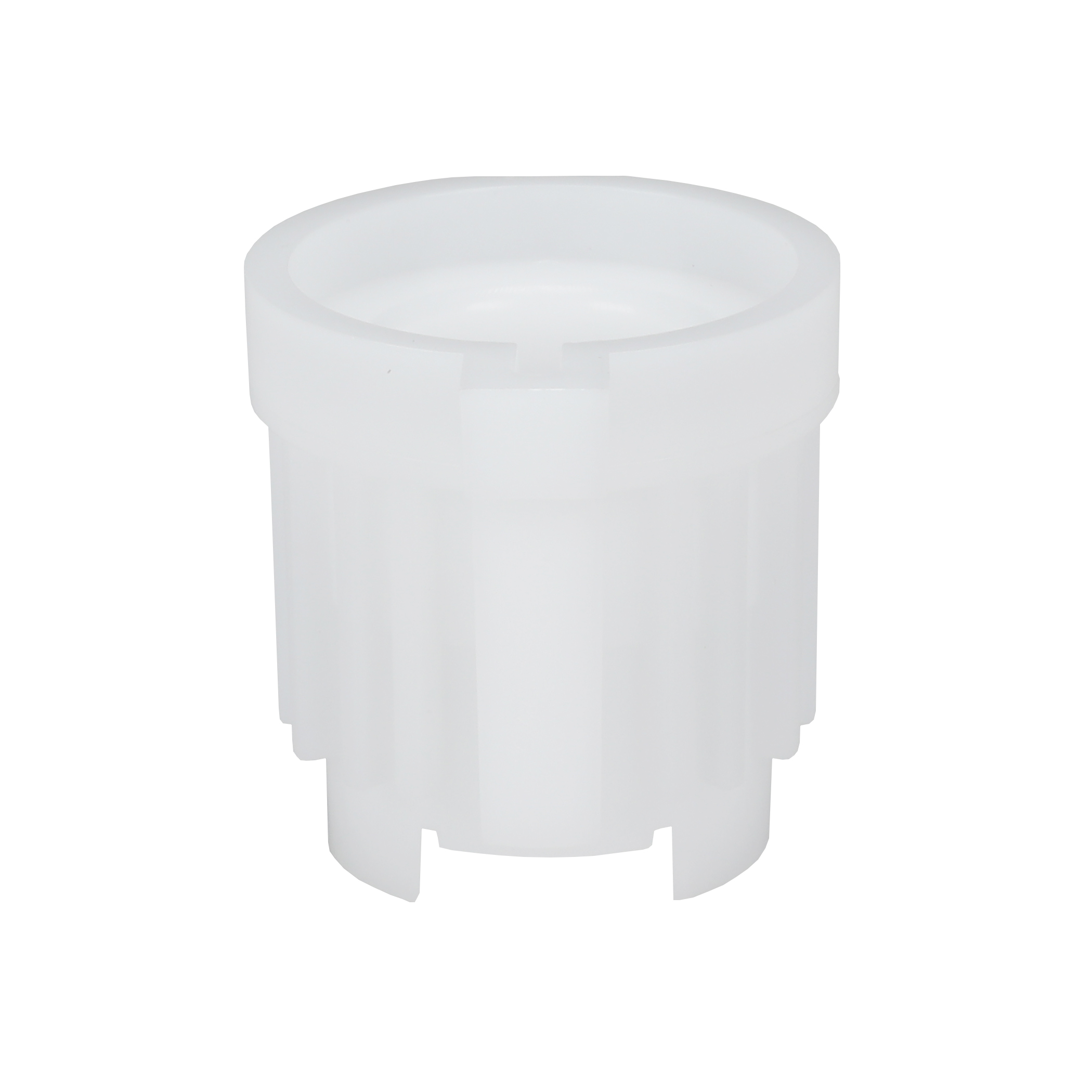

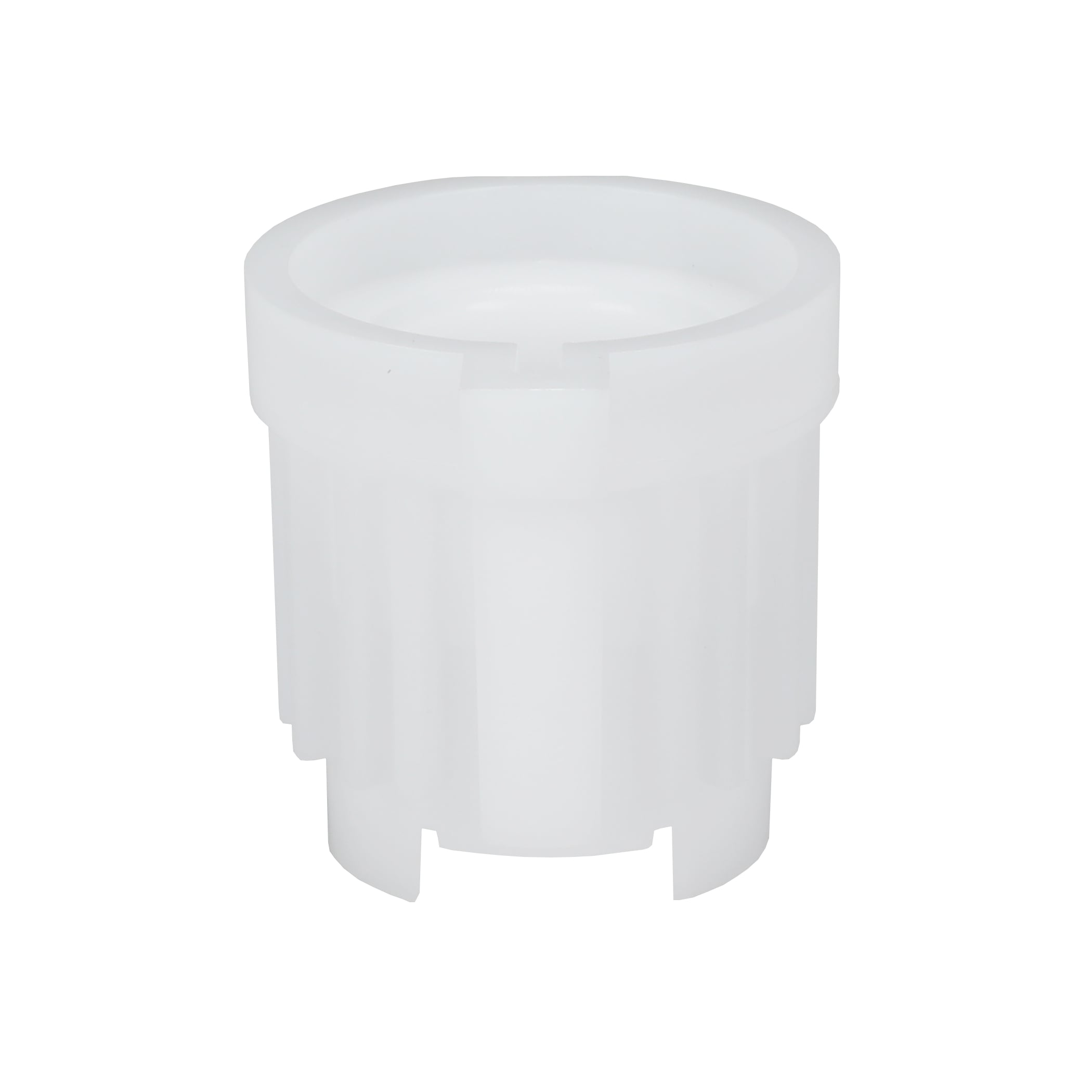

  • Includes adapters to fit most Moen tub/shower faucets
  • Compatible with Moentrol and Posi-Temp cartridge style faucets
    • Replaces Moentrol 220, 240, 2600 & 2700 series with and without diverters
    • Replaces Moen Posi-Temp series 2300 with and without diverters

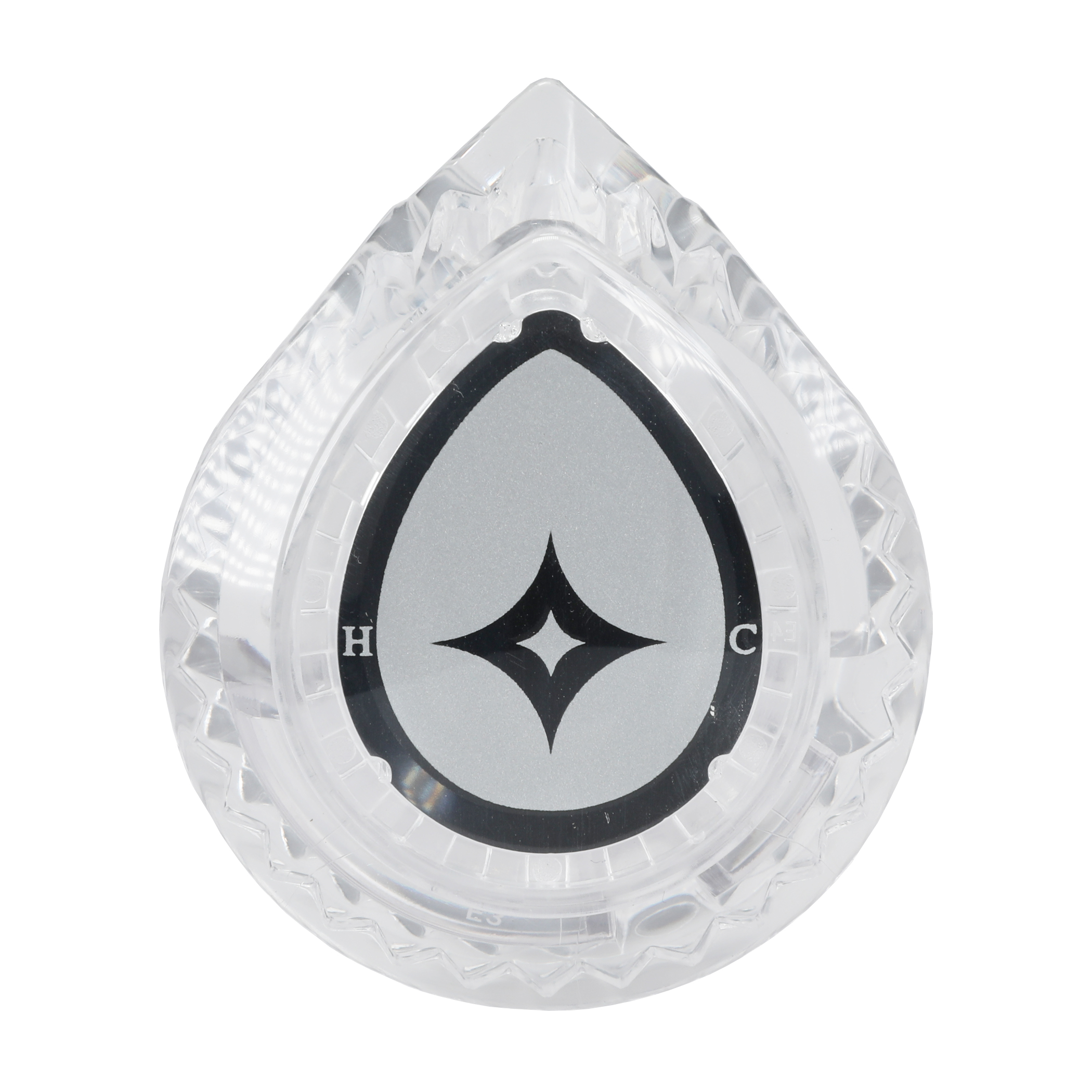

  • Includes 1 clear acrylic handle and 1 brushed nickel-finished metal handle
    • Metal handle used only for valves without diverters

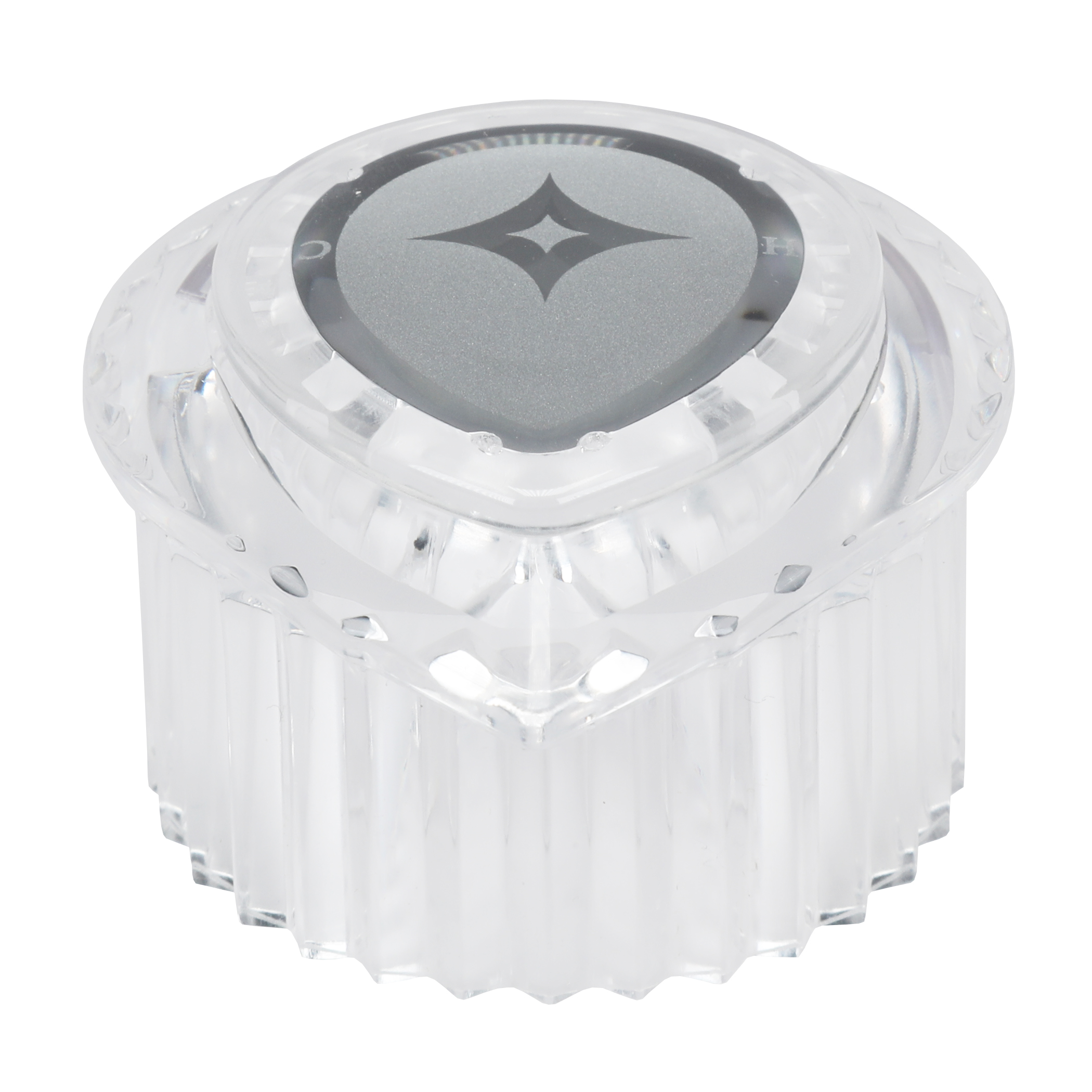

    • Acrylic handle: 2.75 in. x 2.35 in. x 1.6 in.

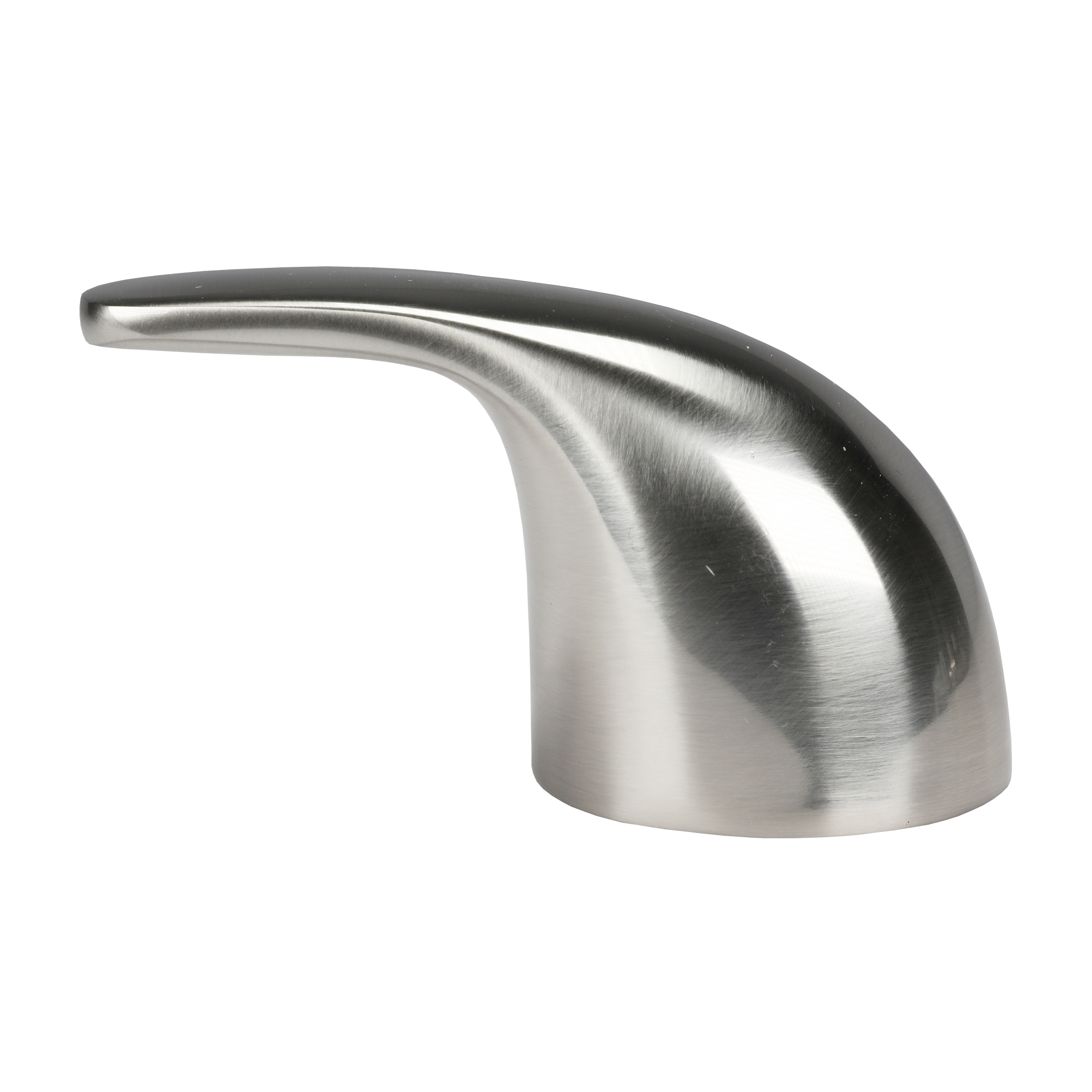

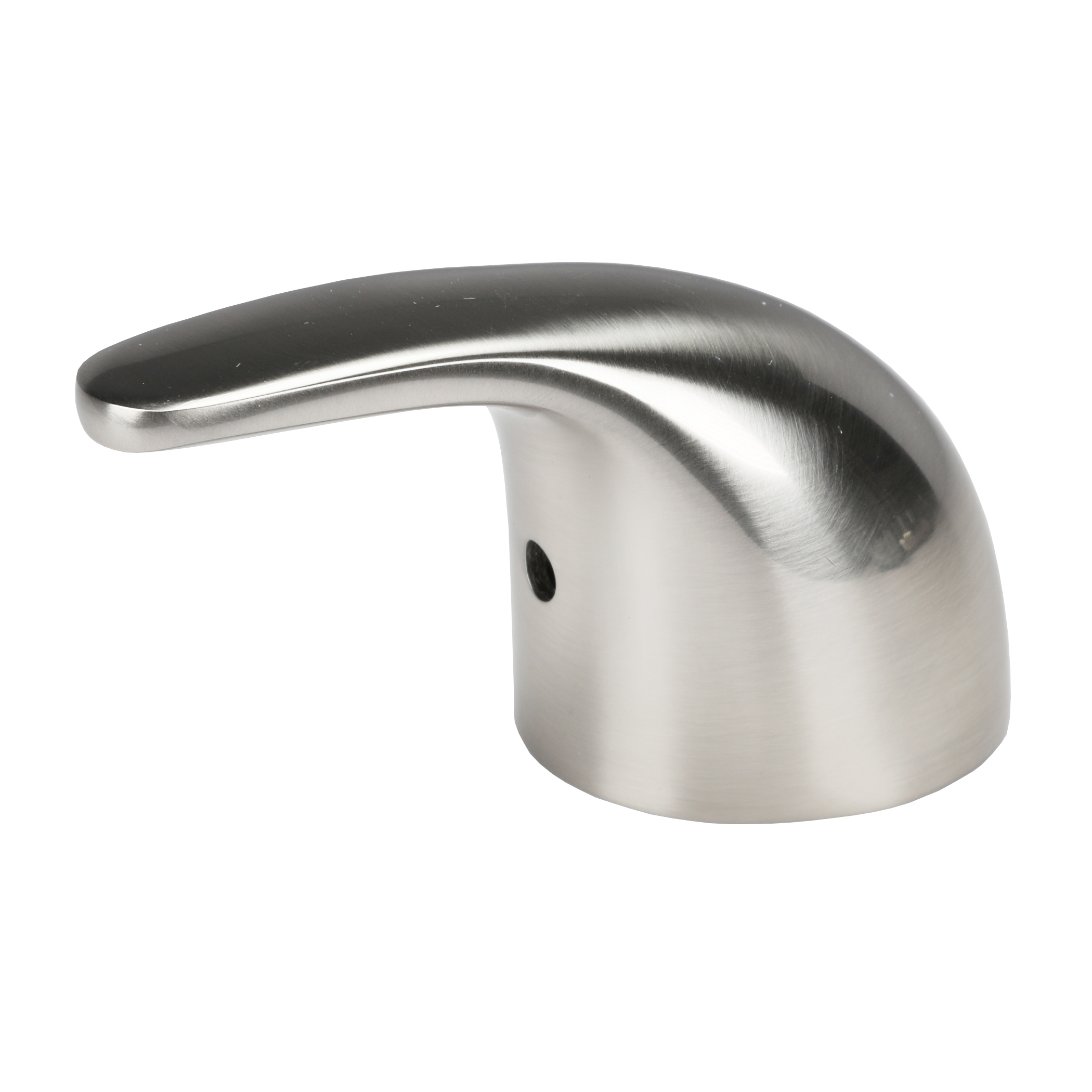

    • Metal handle: 4 in. x 2-1/16 in. x 2-3/8 in.
  • Brushed nickel finish will give a touch of elegance to your bathroom
  • Gives a clean and finished look to your tub/shower
  • Replaces existing kits 28951, 28951, 28961, 89273 and 89275
  • Installs with simple household tools making this an easy do-it-yourself project

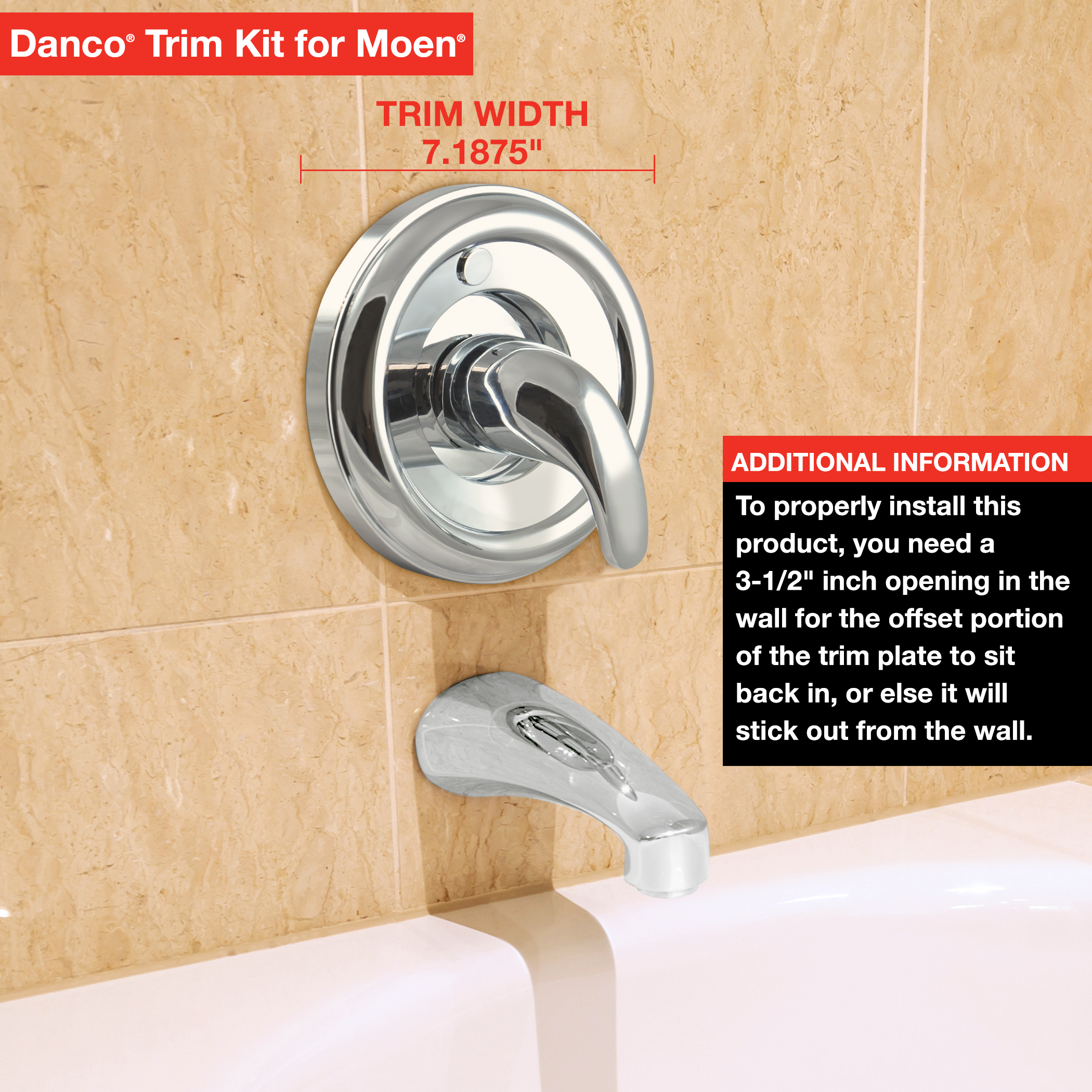

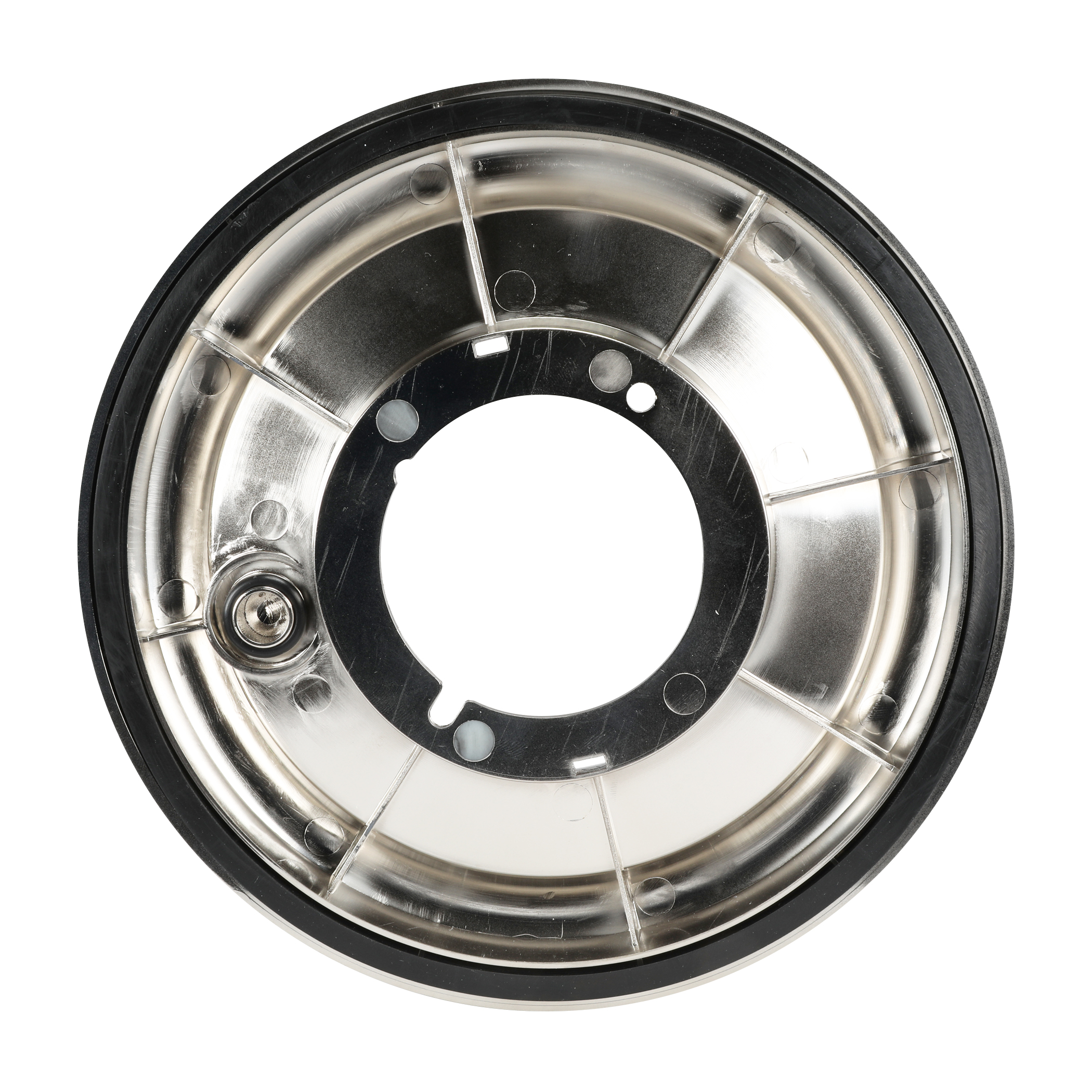

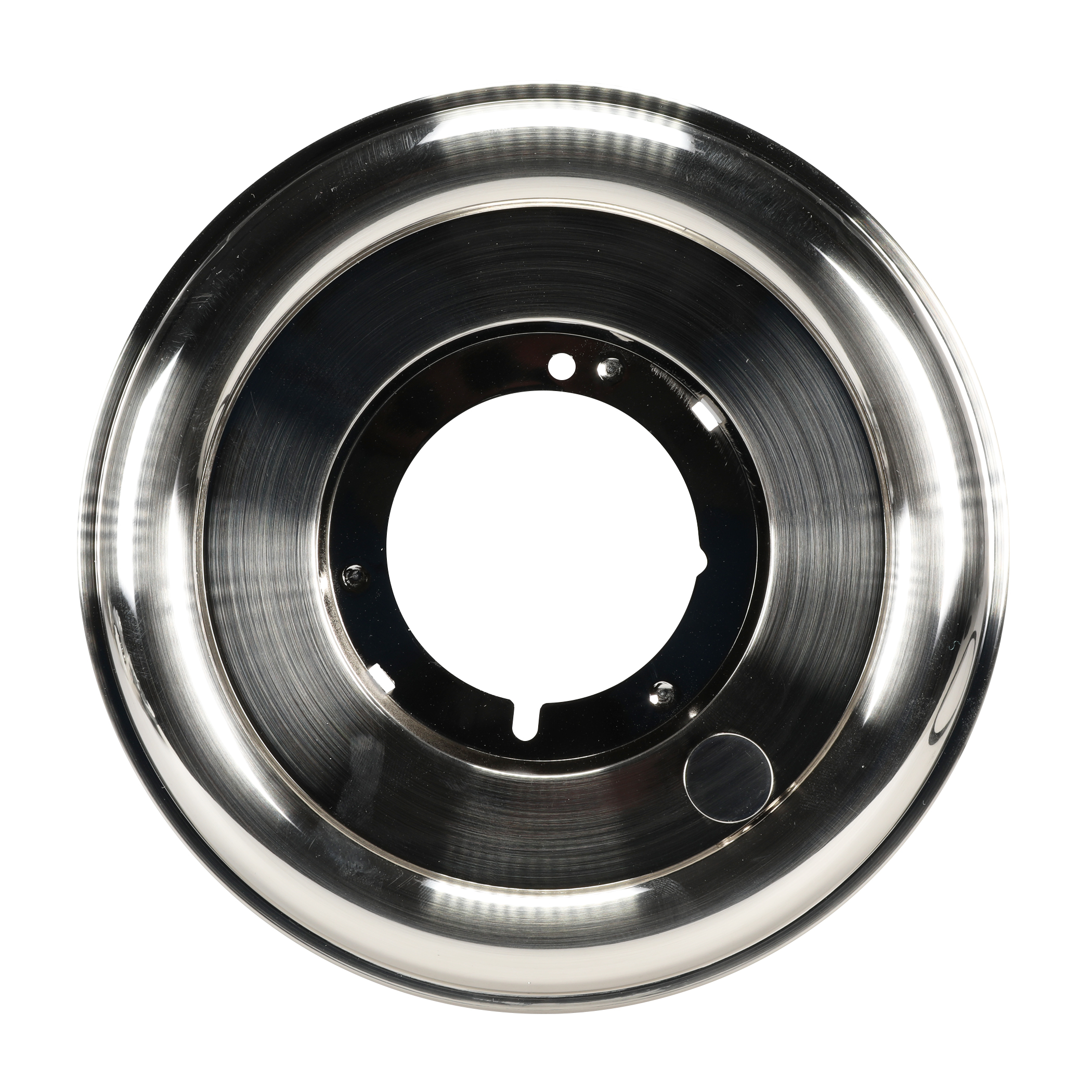

Note: To properly install this product, you need a minimum of a 3-1/2 inch opening in the wall for the offset portion of the trim plate to sit back in, or else it will stick out from the wall.

Specifications

  • PKG Height (in.)10.75
  • PKG Width (in.)8.25
  • PKG Length (in.)3.81
  • PKG Weight (lb.)1.81
  • OEM BrandMoen
  • ApplicationTub / Shower
  • Product Height(in).7.50
  • Product Width(in).7.50
  • Product Length(in).0.00
  • Product Outer Diameter (in.)0.00
  • Product Inner Diameter (in.)0.00
  • MaterialPlastic
  • Product TypeTrim Kit

9 reviews for Tub/Shower Trim Kit for Moen in Brushed Nickel

Sort by
  1. 1 out of 5

    Bought the Universal Kit 10008 Brushed Nickle, now apparently 10002, from Home Depot in February. Now the plating is coming off the handle by the set screw. Can not find a replacement without buying a whole Kit

    • Danco

      Hi Paul, Unfortunately, we do not sell the individual parts. If you contact our Technical Support team they should be able to help you with getting the correct screws. We have found that the screws that come with the trim kit are normally not long enough to hold the over plate...Read More

  2. 4 out of 5

    Just installed today, product work great. I think some of the negative reviews had to do with installation errors.

  3. 5 out of 5

    Just bought this today at HD. I had not read all these negative reviews before buying, but I got it hoping it would work with my old Moen shower valve that was leaking. There were a lot of pieces included (they give you parts for 2-3 different configurations/valve setups) so i...Read More

  4. 1 out of 5

    Bought this today, installed this today and then needed to remove (doing whole bathroom remodel and needed plumbing adjustment). The faucet can not be removed after placing and I just wasted all that money to use a hacksaw and have to remove, now I have to buy an entirely new ...Read More

    • Danco

      Thank you for choosing Danco products. We apologize for the inconvenience you have experienced. Could please call 800-523-5135 option #2 during our business hours (Monday – Friday 8 am – 5 pm CST) so we can better assist you to with the issue you are having, it would be...Read More

  5. 1 out of 5

    Product was not usable because it will not fit tightly against the shower wall. There’s about a 3/8″ gap which would allow water behind the shower wall. Because of the way it’s packaged, once opened it cannot be repackaged for return.

    • Danco

      Hi Steve,
      Thank you for your feedback. We are sorry to hear that this trim kit for Moen did not work for you. If you could reach out to our Customer Service they will be able to help you. They can be reached at 800-523-5135 (option 2), or if you prefer you can email them...Read More

  6. 1 out of 5

    I tried it on two different showers and the face place will not come close to sealing against the shower wall. Would allow water in behind the shower wall. The way it’s packaged I had to tear apart the packaging, is it returnable to Lowe’s without original packaging?

    • Danco

      Hi Steve,
      Thank you for taking the time to contact us. If you are not able to return the product please reach out to our Product Support team as this product has a one year warranty. They can be reached at 800-523-5135 (option 2), or if you prefer you can email them at <...Read More

  7. 2 out of 5

    I just bought this item from Home Depot and had the exact same issue as above in regards to the handle. The handle wouldn’t tighten and now the screw is stripped. So I have a loose handle and a screw that I can neither tighten nor remove. Not very happy.

  8. 1 out of 5

    I had the same problem. I bought this at Lowes and tried to install but the middle plate would not snap in per directions and holes did not line up.

    • Danco

      Good Afternoon Jon,

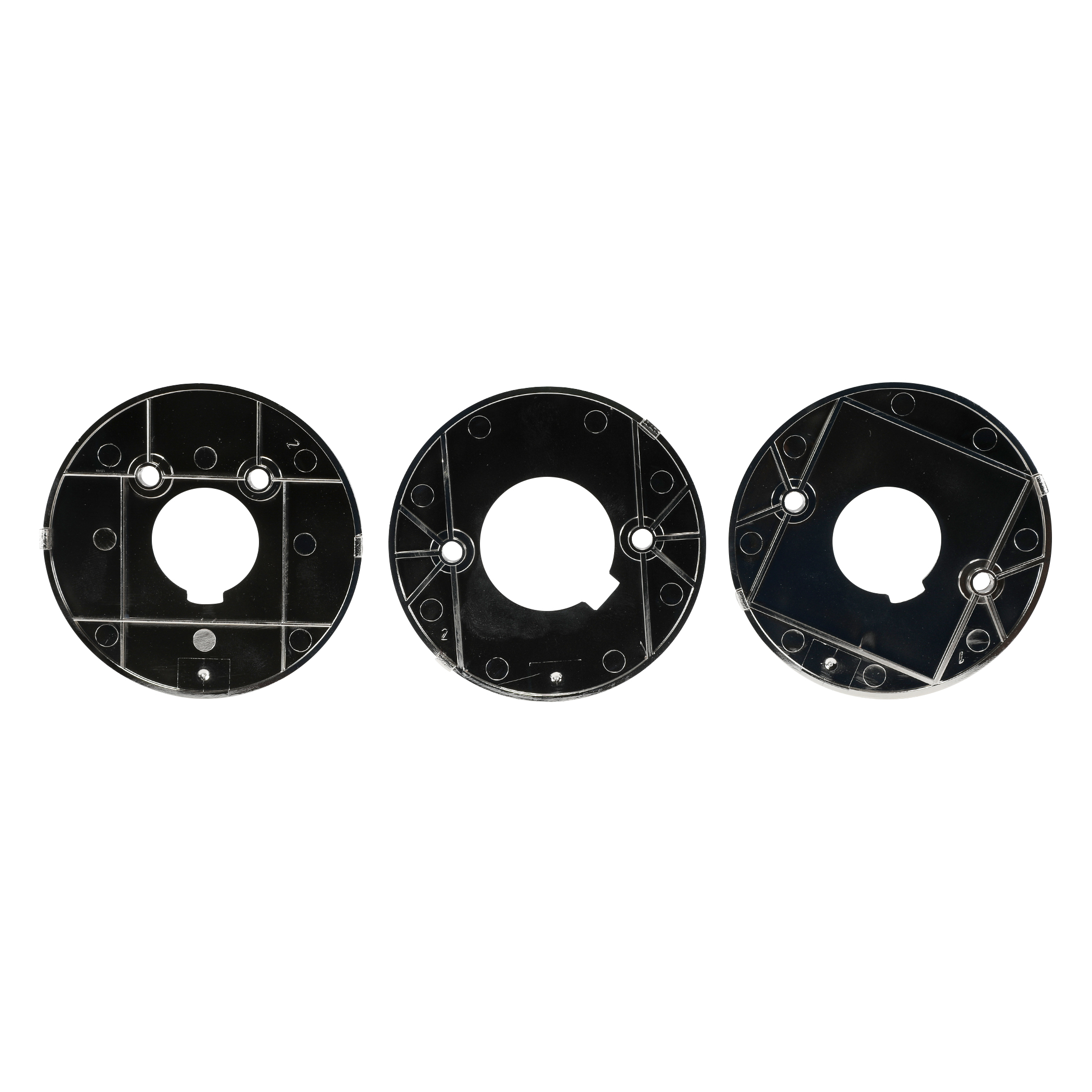

      Thank you for reaching out to us to let us know of the experience you encountered. There are 3 different inner changeable small face plates. You may need to match up one of these face plates with your pre-existing holes. If none of these face plates w...Read More

  9. 1 out of 5

    I had read a number of negative on line reviews but chose to purchase this product any way. This product is incredibly cheap plastic. It is very poor quality. To make things worse I called Danco support prior to purchasing to make sure that it would fit my application (i.e...Read More

    • Danco

      Good Afternoon David,
      Thank you for choosing Danco products. We apologize for the inconvenience you have experienced. We will review your concern with our Product Support and Product Management teams. We believe you should be able to return the product to Home Depot, as ...Read More

Add a review

How to video

  View Instructions 10002 Download Instructions

Step-by-step instructions

Leaky tub and shower faucets are not on our list of favorite things. But they're relatively simple to fix yourself. With a few tools and the right Danco replacement part, you can fix that leaky faucet yourself. Tools and supplies required: Phillips Screwdriver, Cartridge Puller, Pliers, Needle Nose Pliers, Fine Sandpaper or Steel Wool, Silicone Grease
1
step-1

The easiest way to remove the old Cartridge is to use a Cartridge Puller. Make sure to follow the instructions for the Cartridge Puller, which can be purchased at your local home improvement store. Because Cartridges are unique to specific type of Faucets, you will want to take your old Cartridge to your local home improvement store and use the Perfect Match locator system from Danco or use the online Stem Finder. This system makes it easy to find your replacement.

2
step-2

Next, remove the Temperature Limit Stop, Key Stop, Stop Tube, and the Trim Plate (as needed to access Cartridge).

3
step-3

Remove the Retainer Clip carefully as not to drop it behind wall.

4
step-4

The easiest way to remove the old Cartridge is to use a Cartridge Puller. Make sure to follow the instructions for the Cartridge Puller, which can be purchased at your local home improvement store. Because Cartridges are unique to specific type of Faucets, you will want to take your old Cartridge to your local home improvement store and use the Perfect Match locator system from Danco or use the online Stem Finder. This system makes it easy to find your replacement.

5
step-5

Using Silicone Grease, lubricate the inside of the Valve Body about 1”. Then lubricate the Exterior Rubber Components on the Cartridge with Silicone Grease as well.

6
step-6

Insert the new Cartridge, Hot inlet Left Side, Cold inlet Right Side into the Valve Body with the tab stamped “HC” on top and with the Stem Notch down.

7
step-7

Reinstall Trim Plate with original Screws.

8
step-8

Reinstall the Retainer Clip, Stop Tube, Key Stop, and the Temperature Limit Stop, in that order.

9
step-9

Slide the Handle onto the Stem or Handle Adapter onto the Stem. Do not use Handle Screws at this point. Turn the water supply back on and test for leaks and ensure the hot water temperature is adequate. Be sure not to exceed the maximum temperature allowed by local plumbing code. Finally, secure the Handle with the Set Screw and your project is complete.
