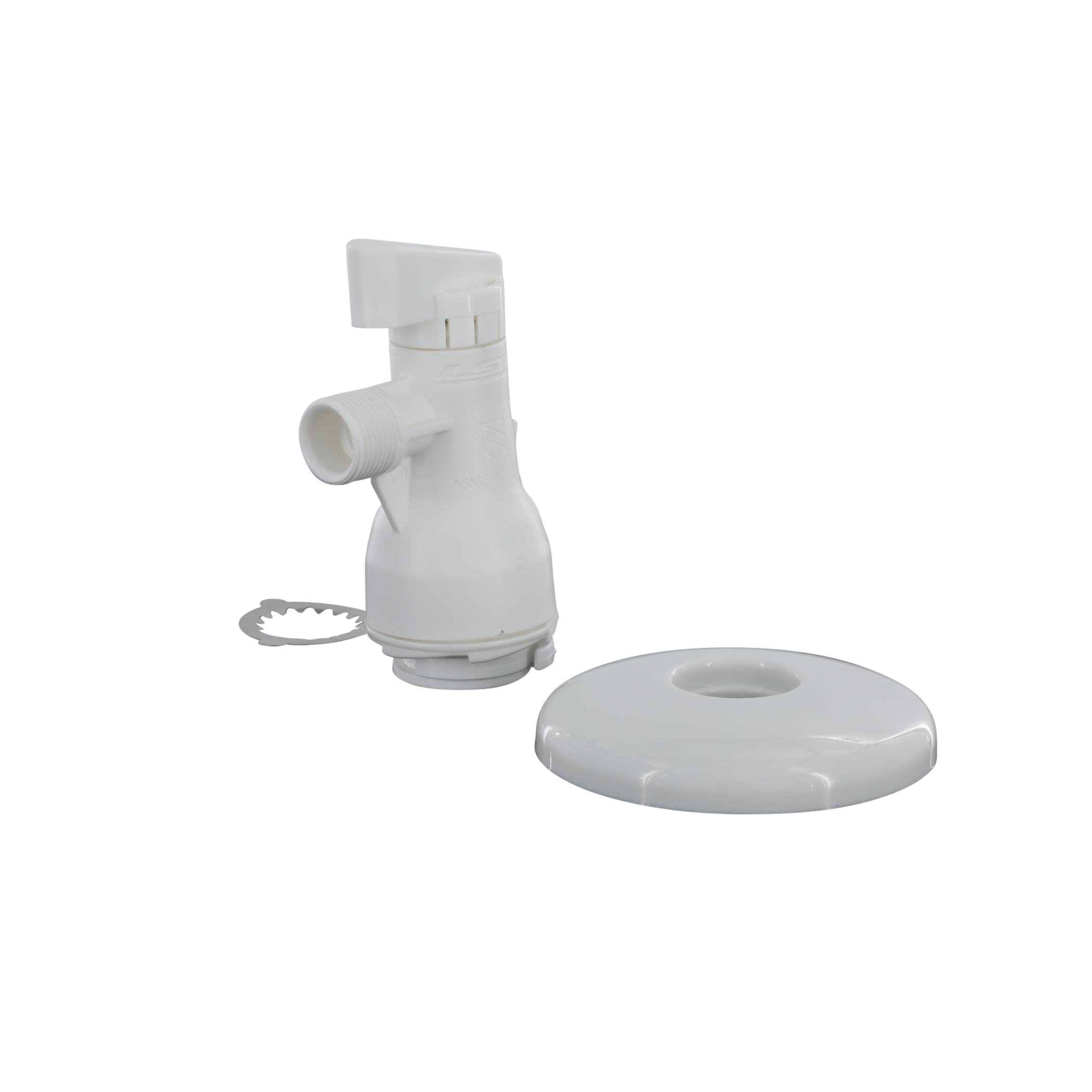

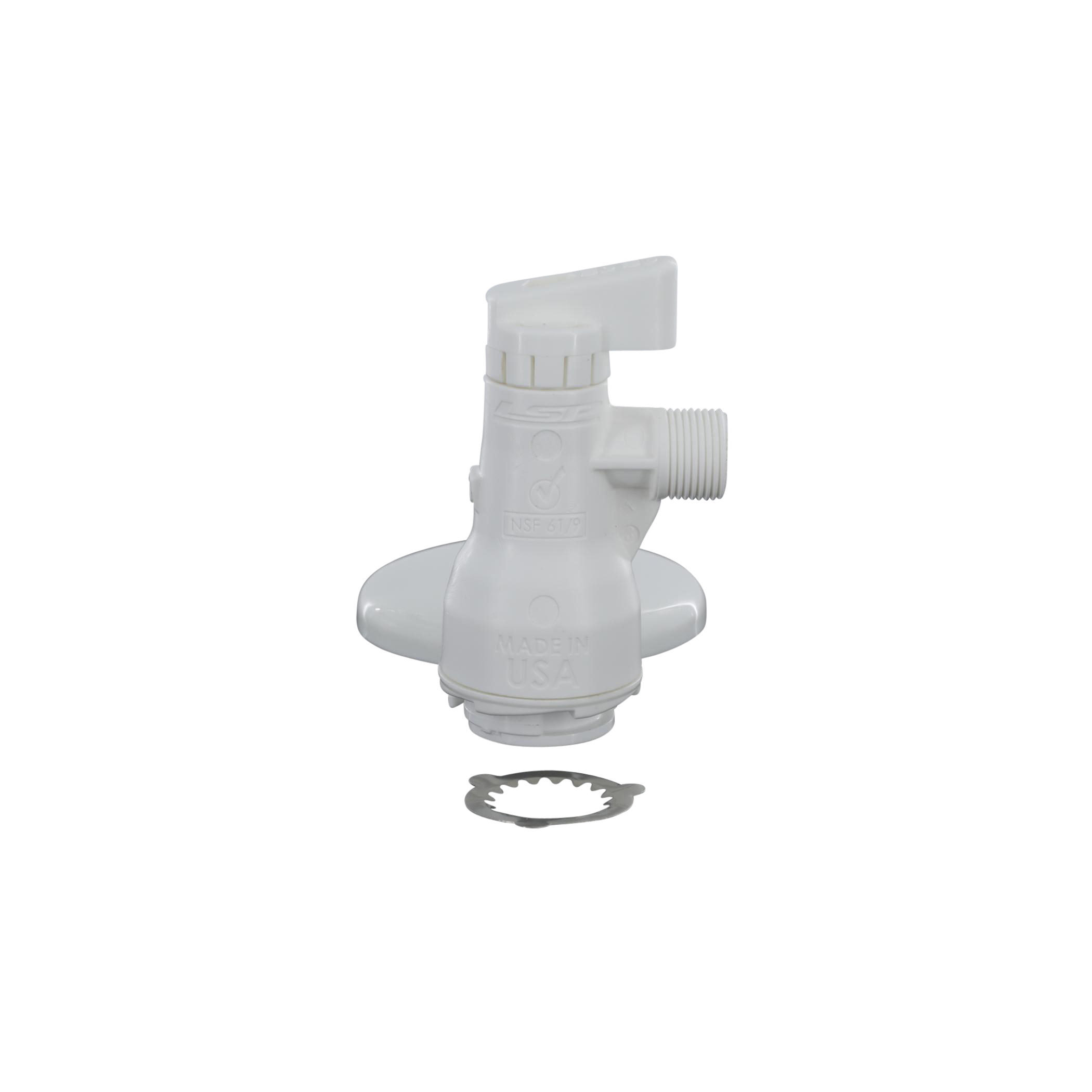

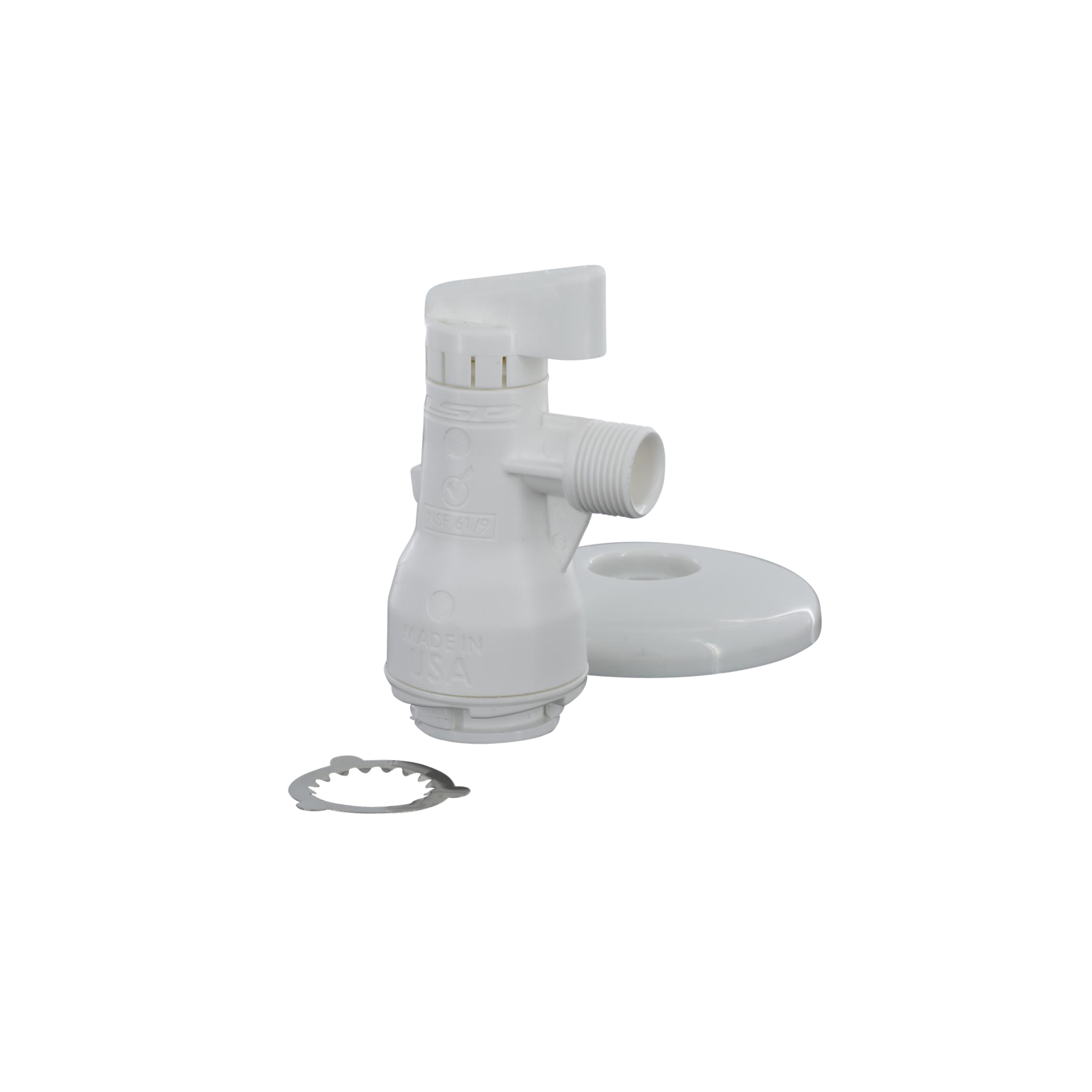

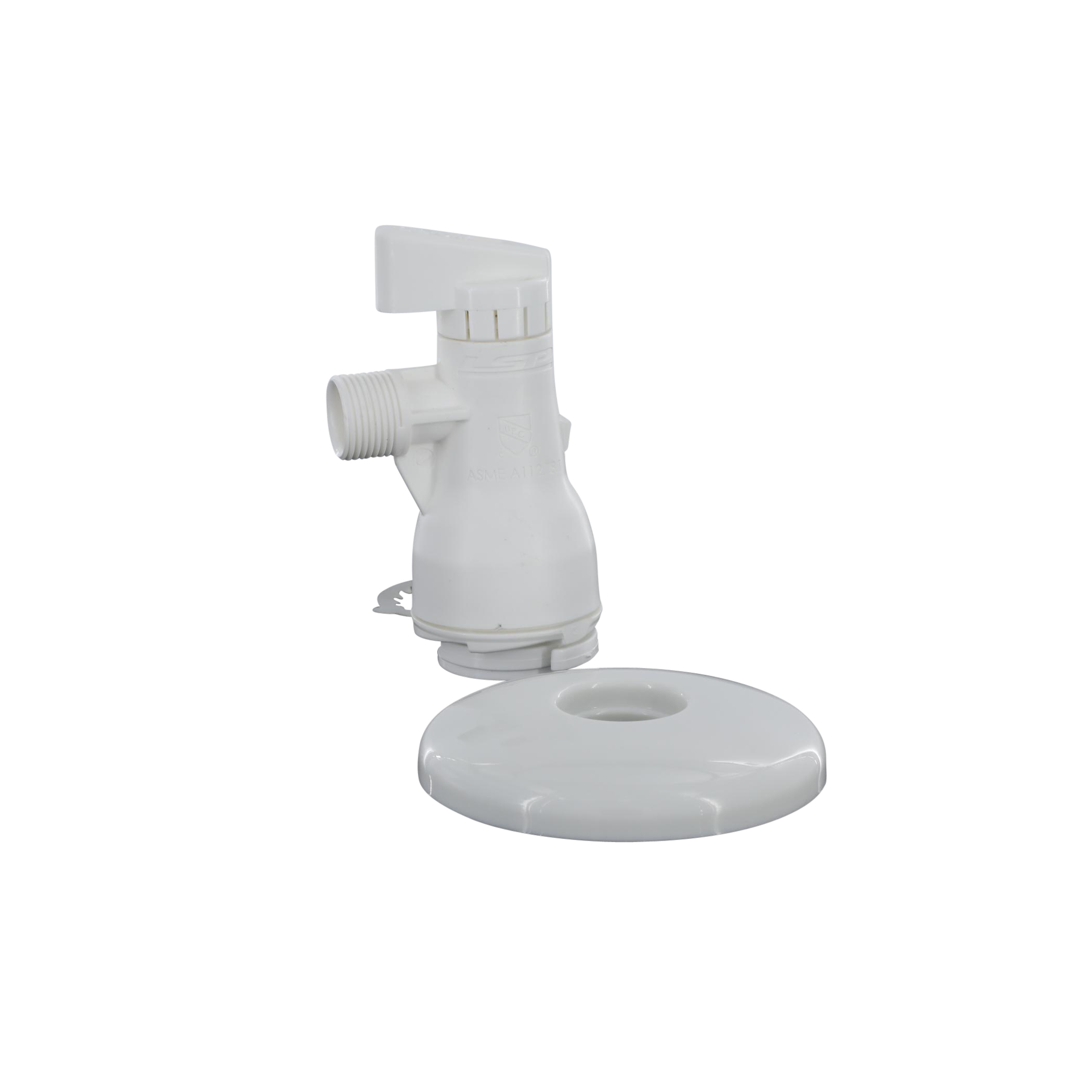

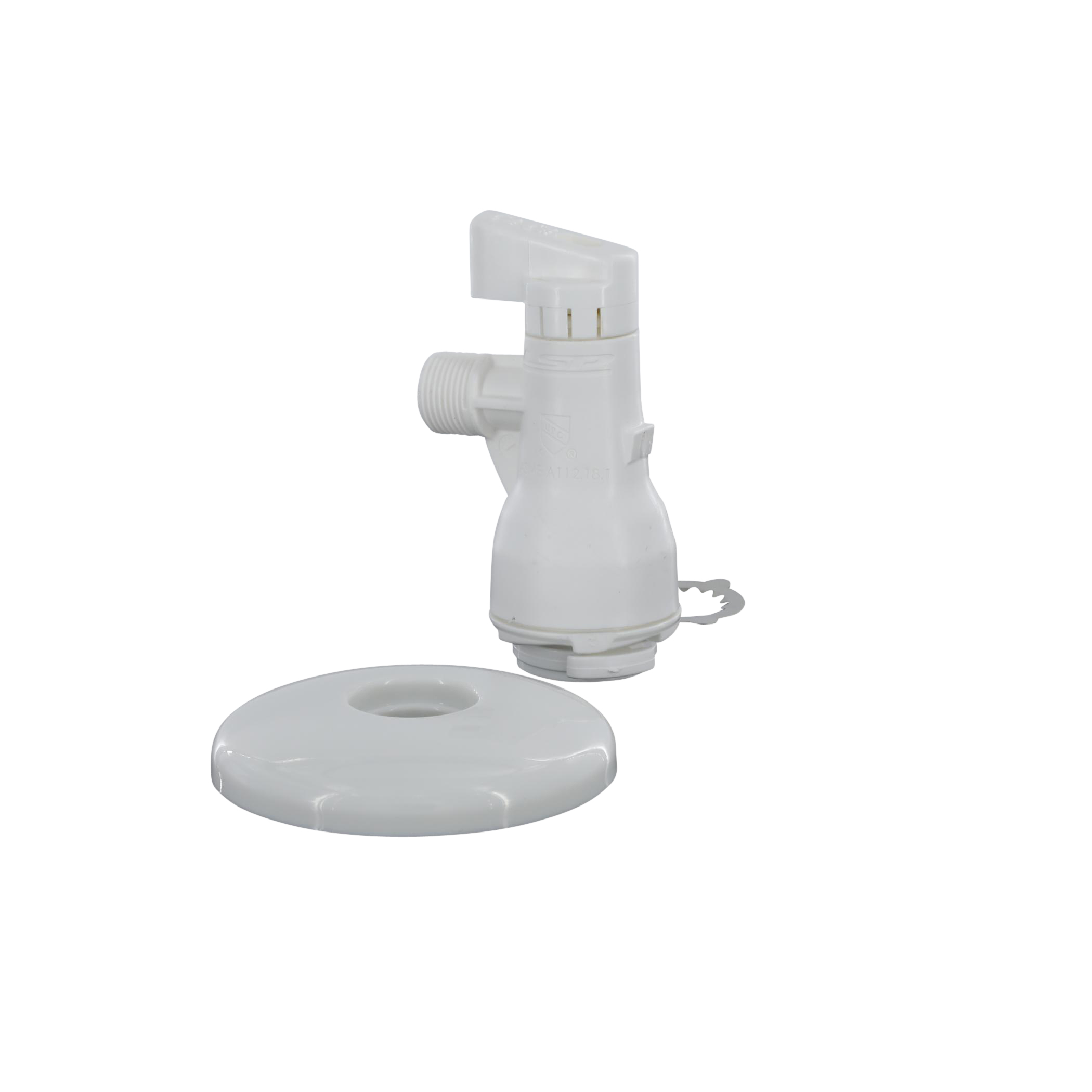

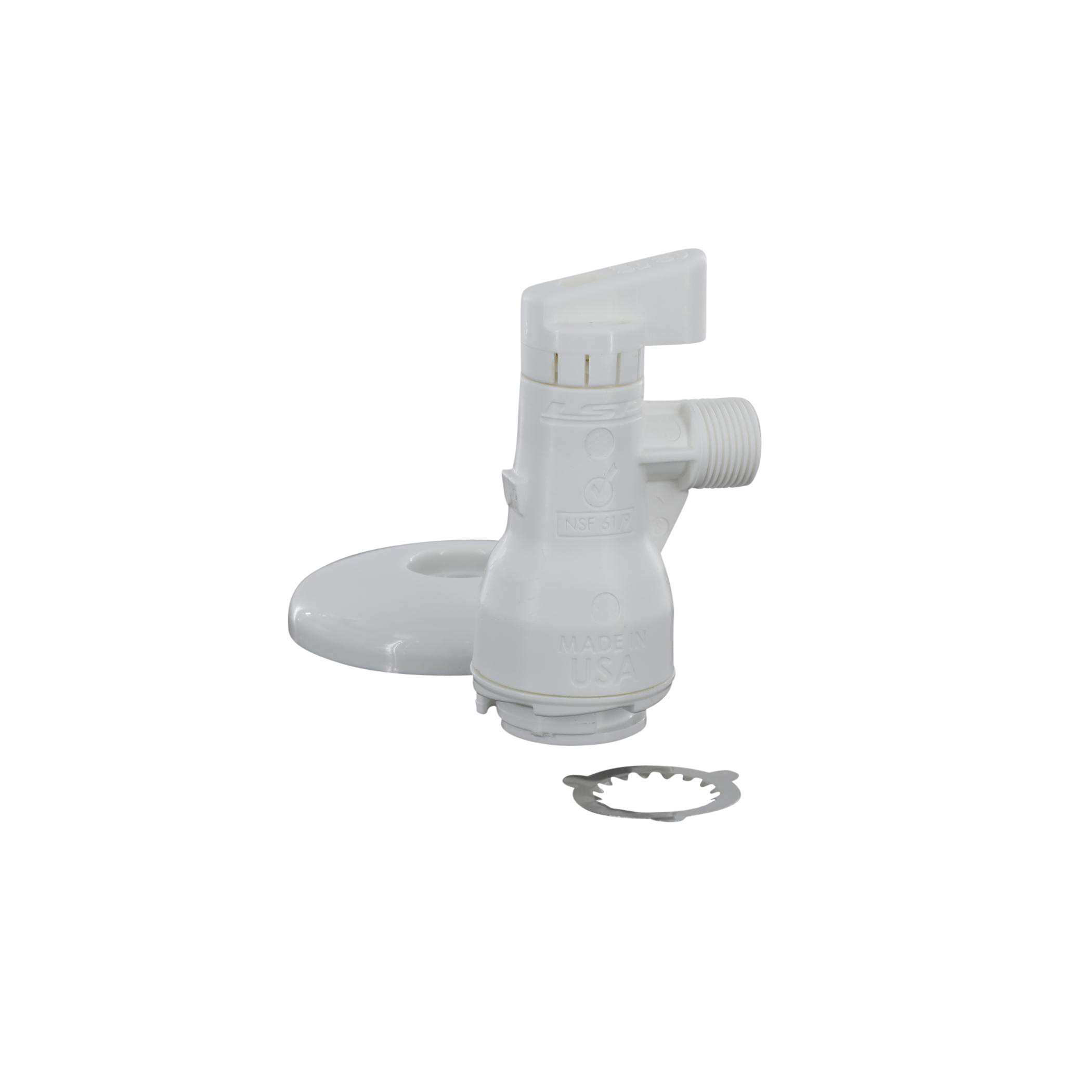

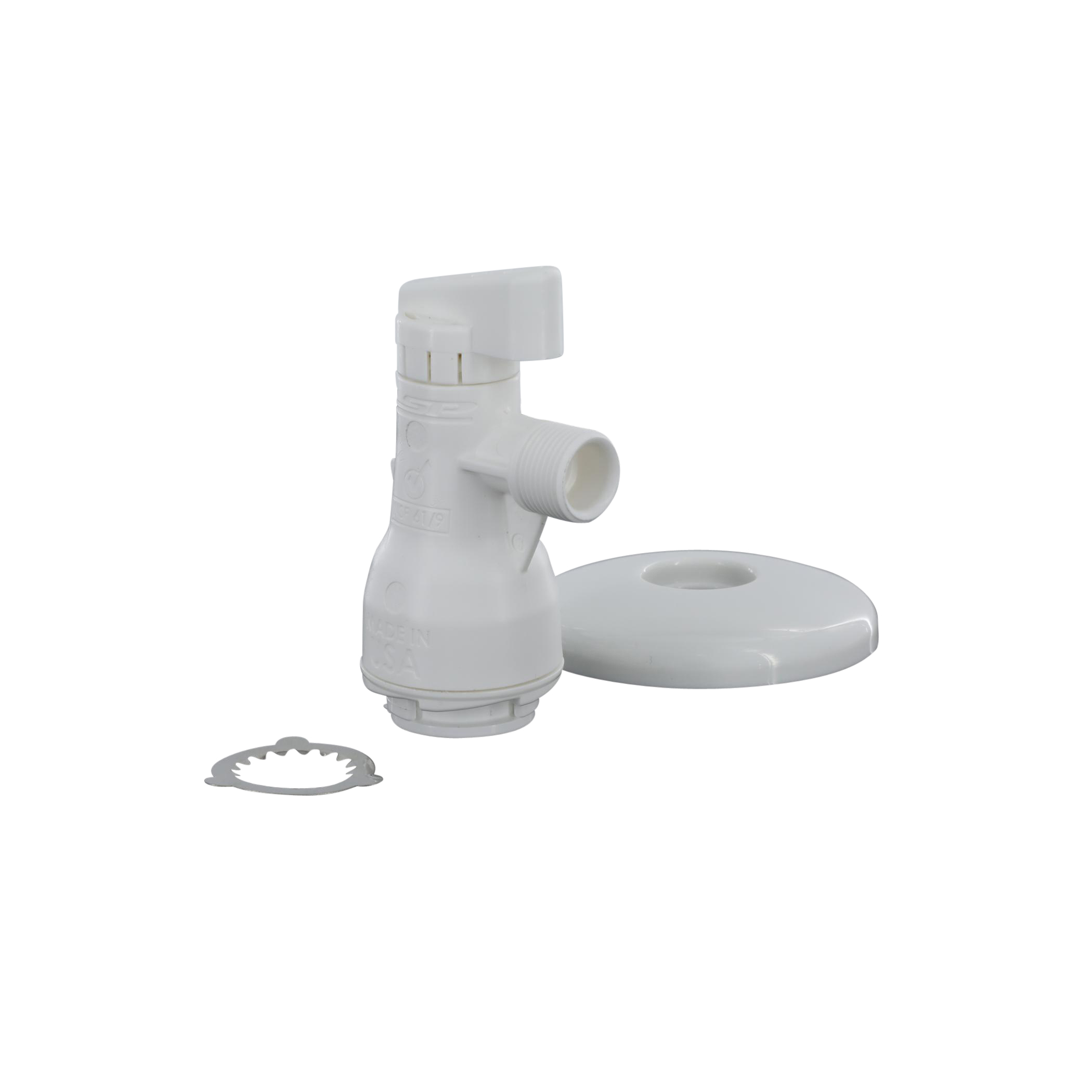

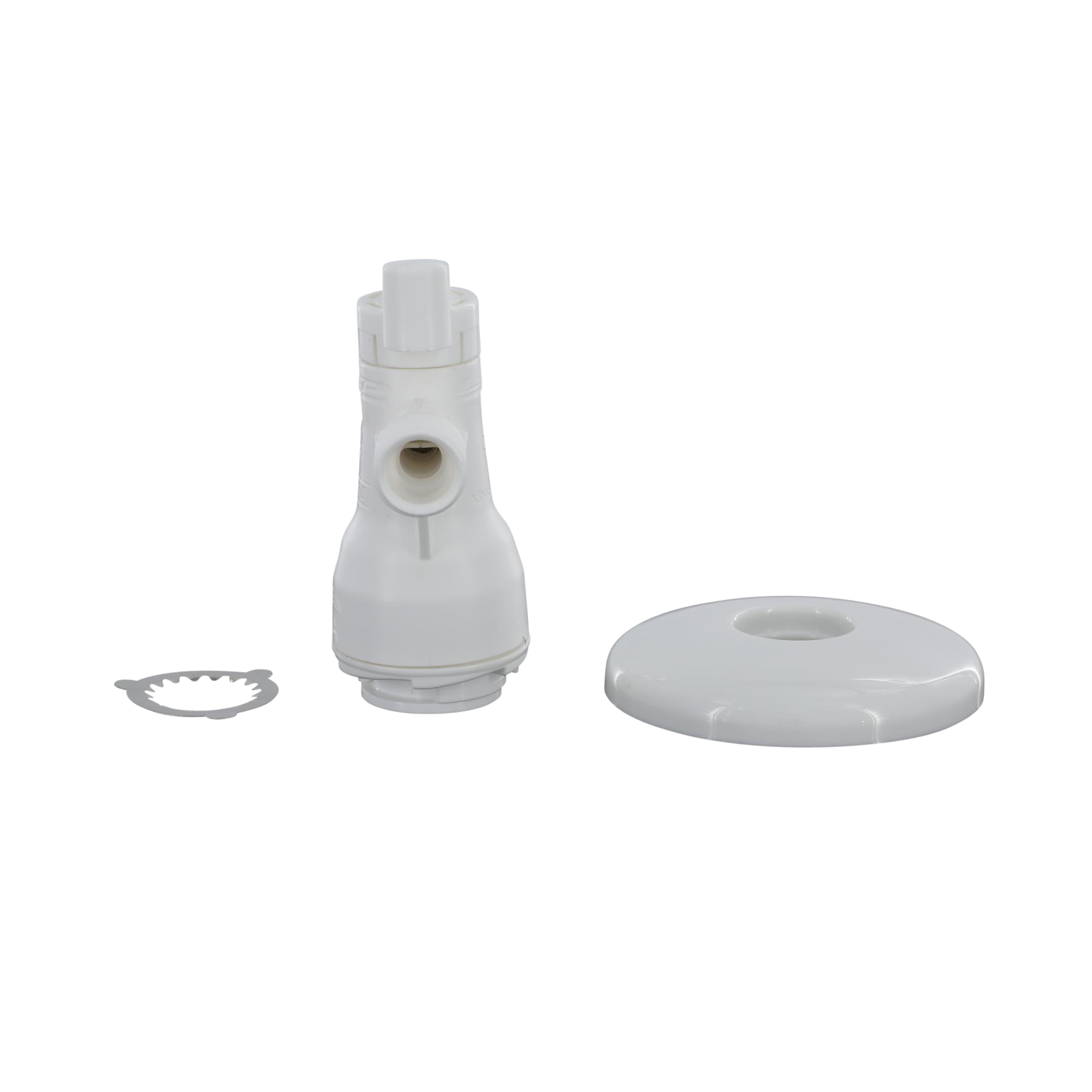

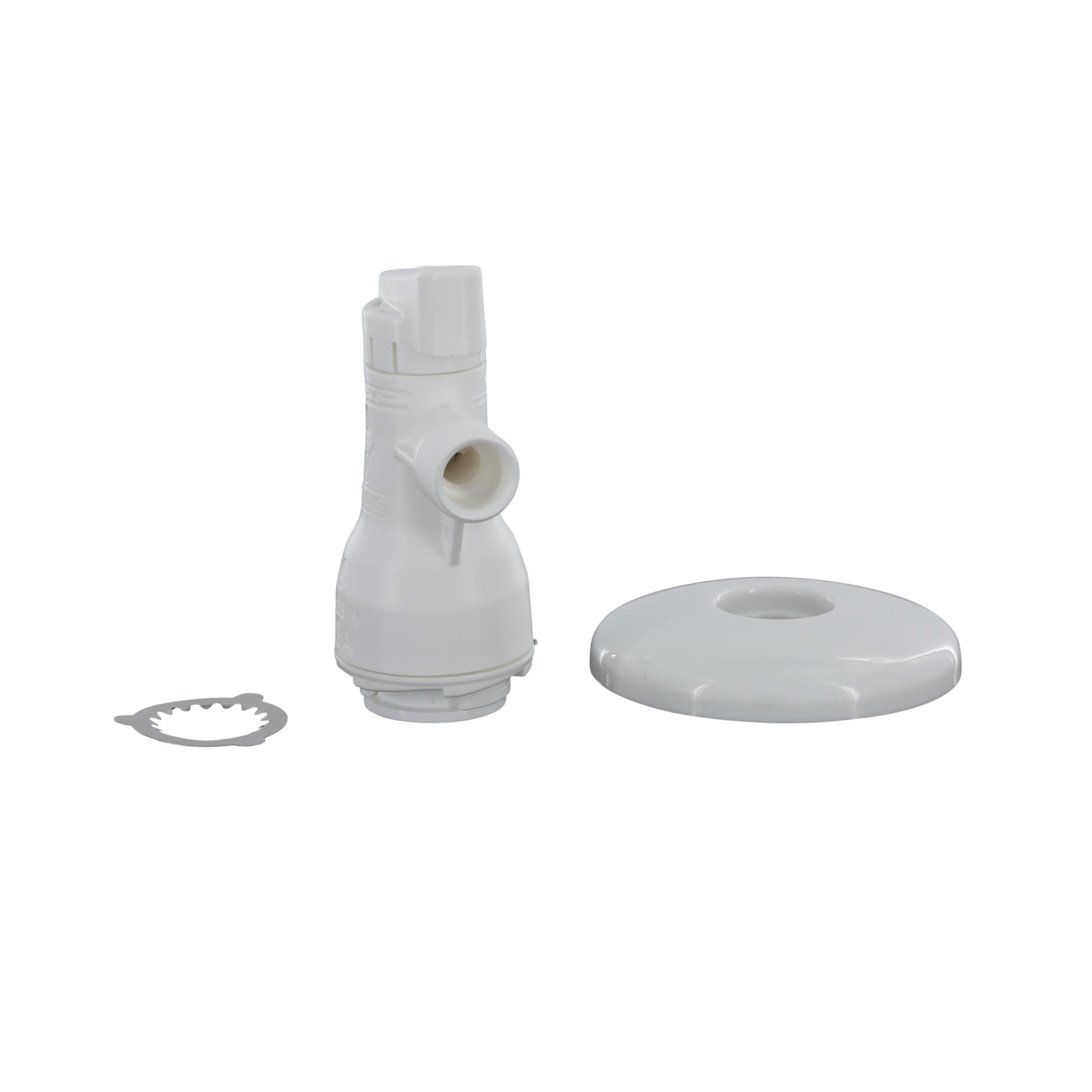

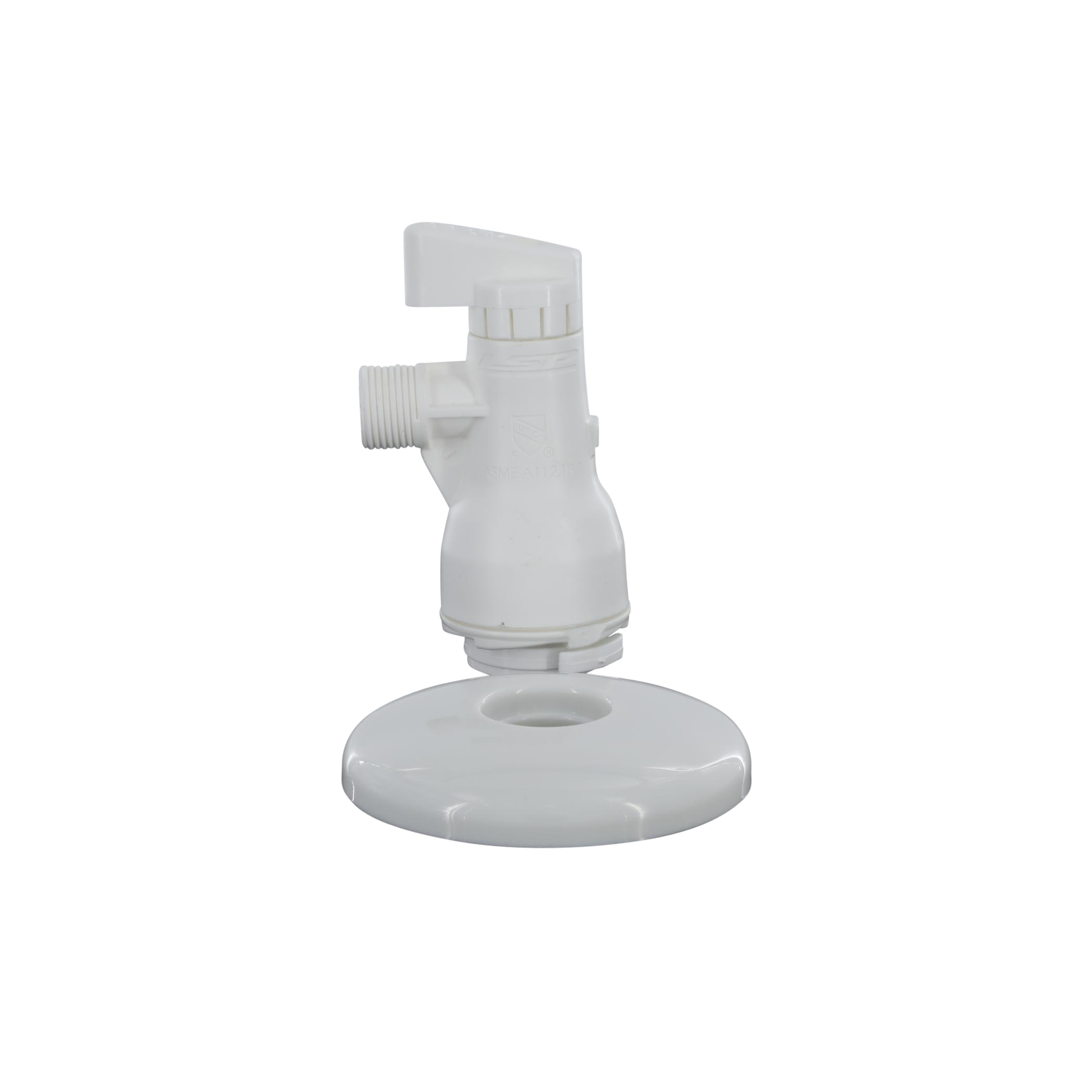

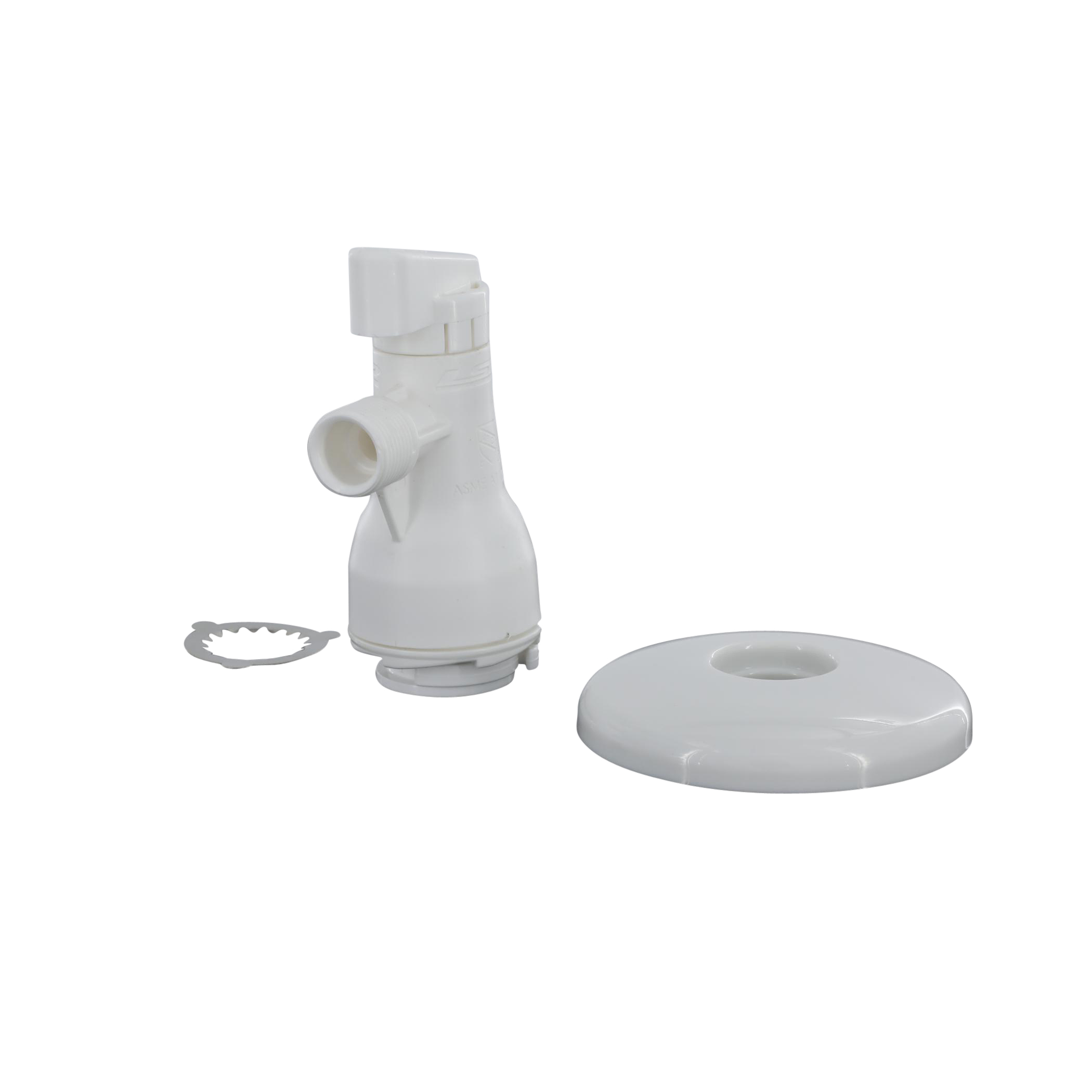

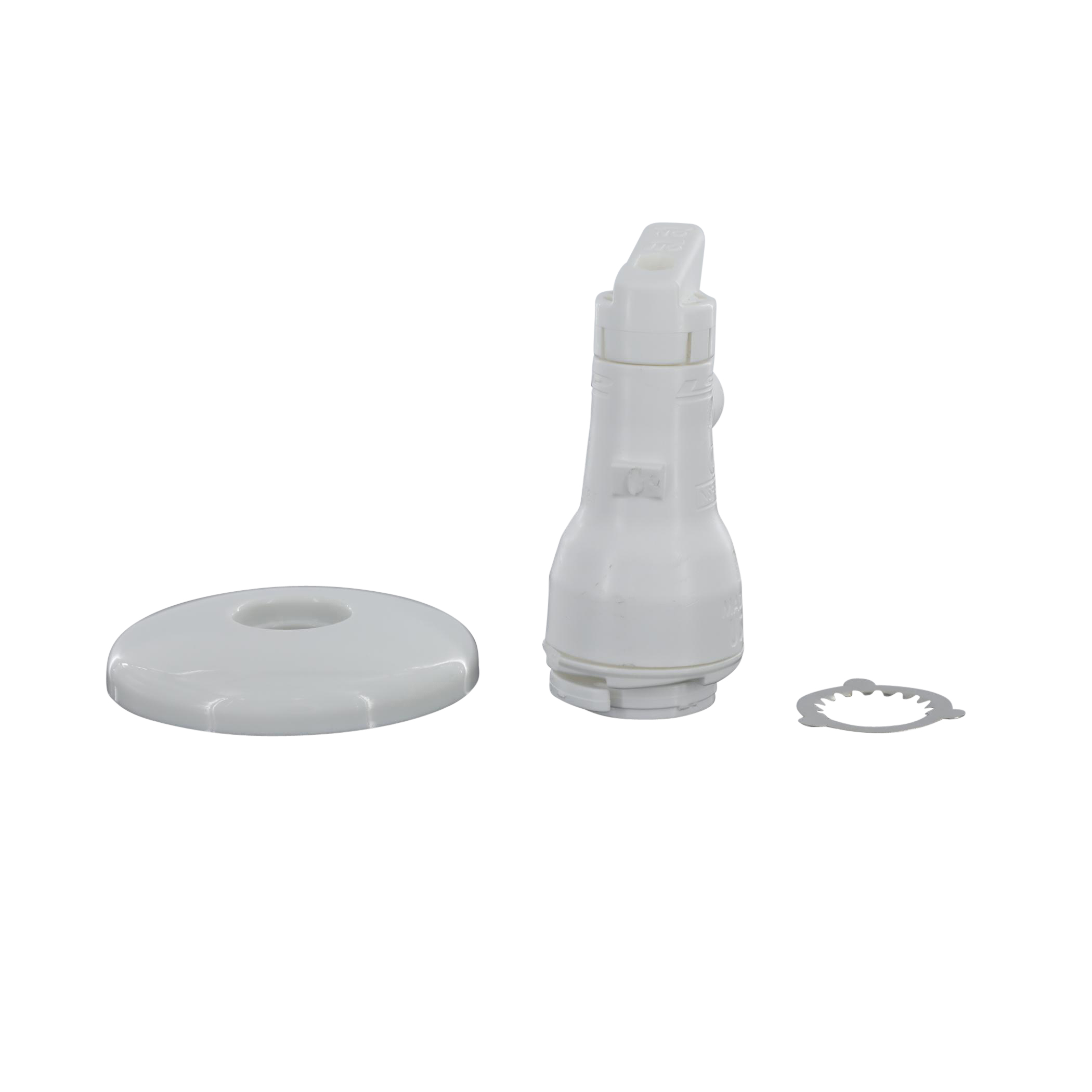

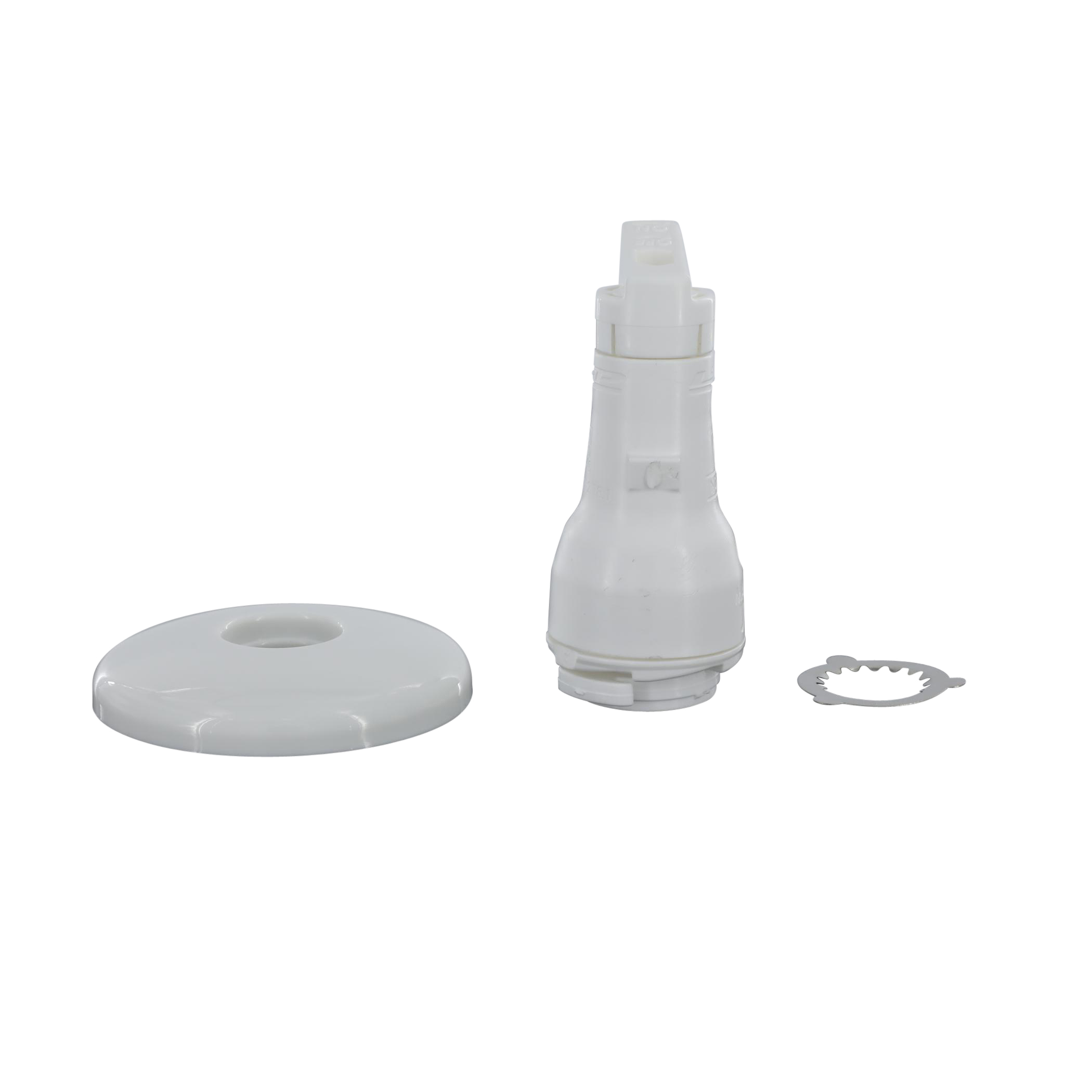

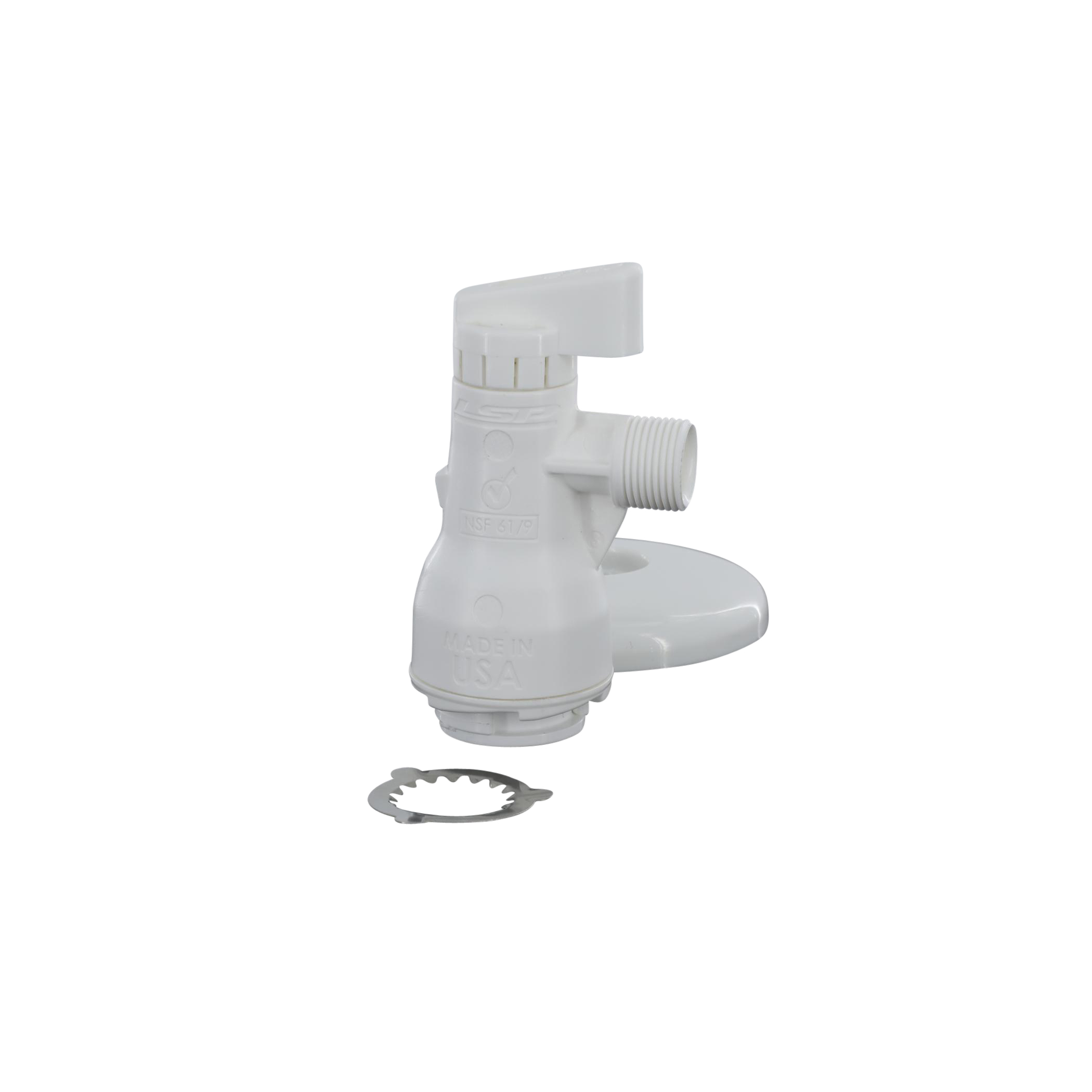

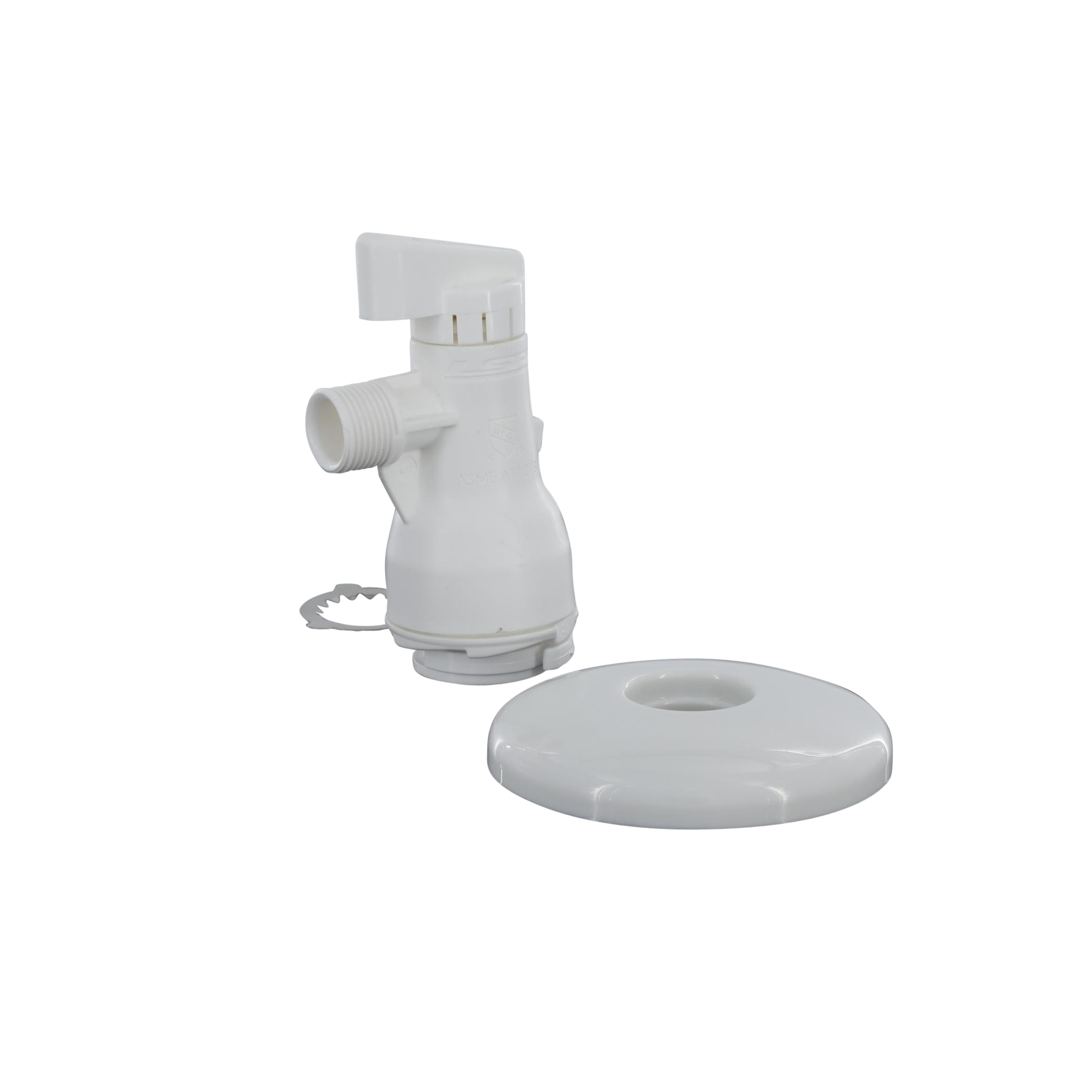

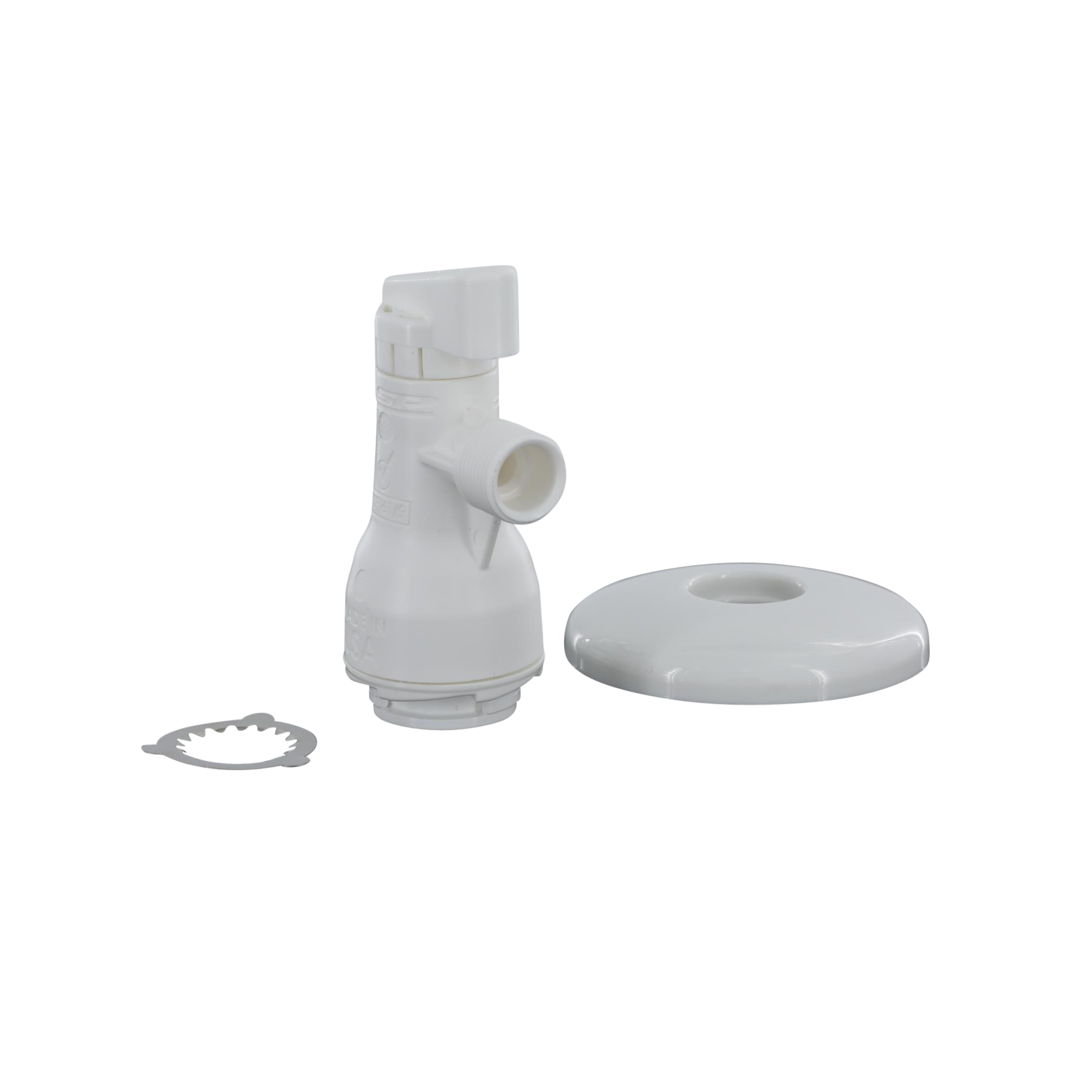

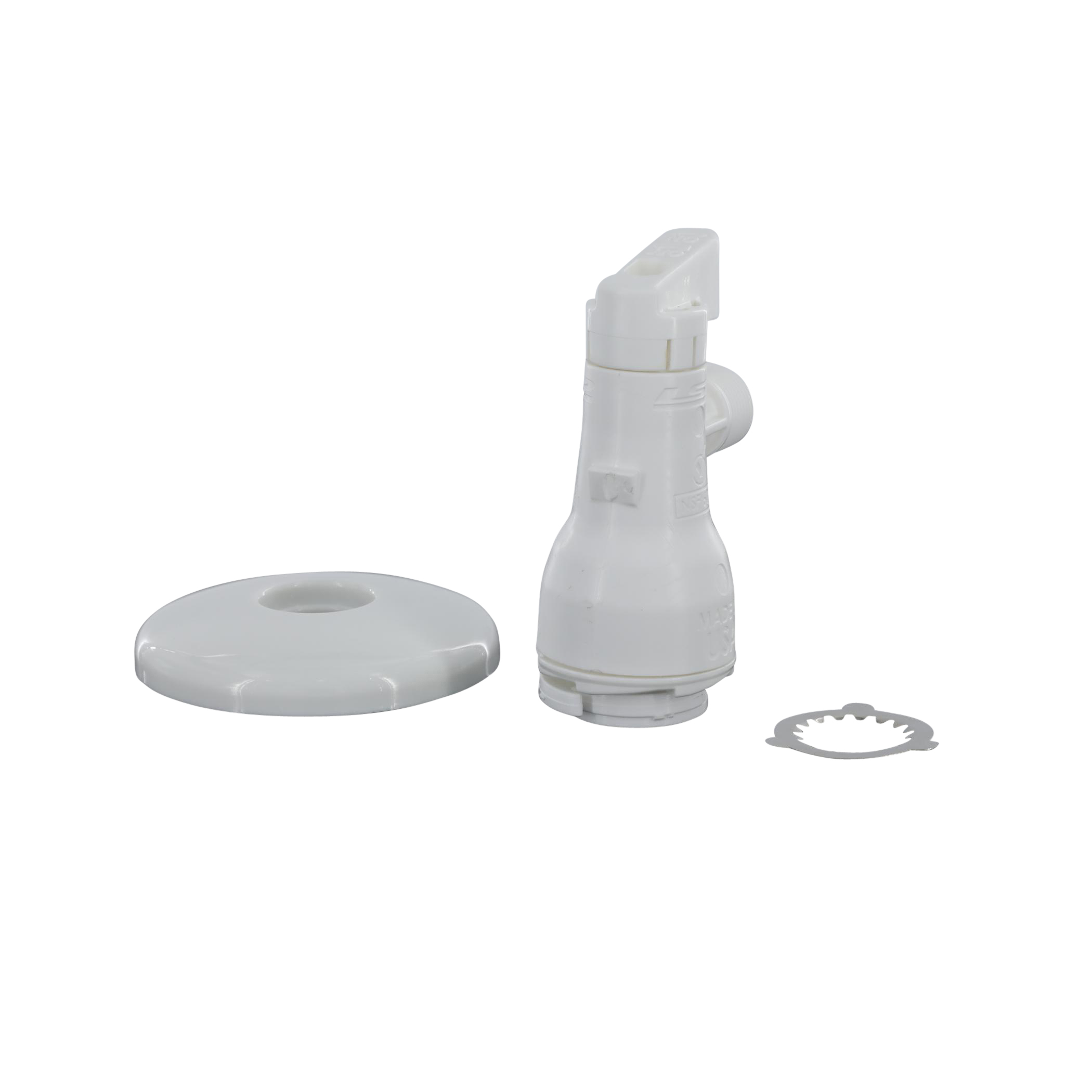

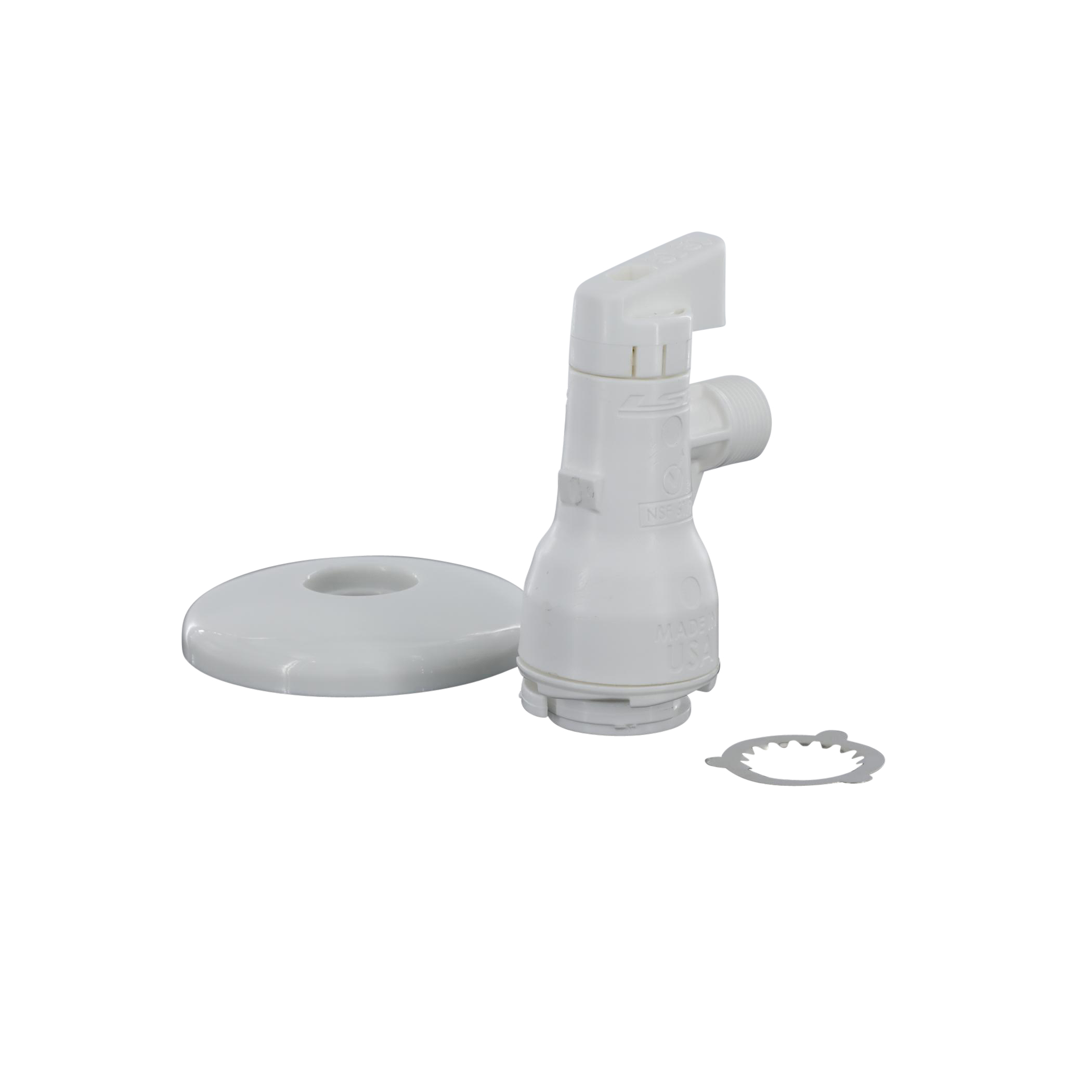

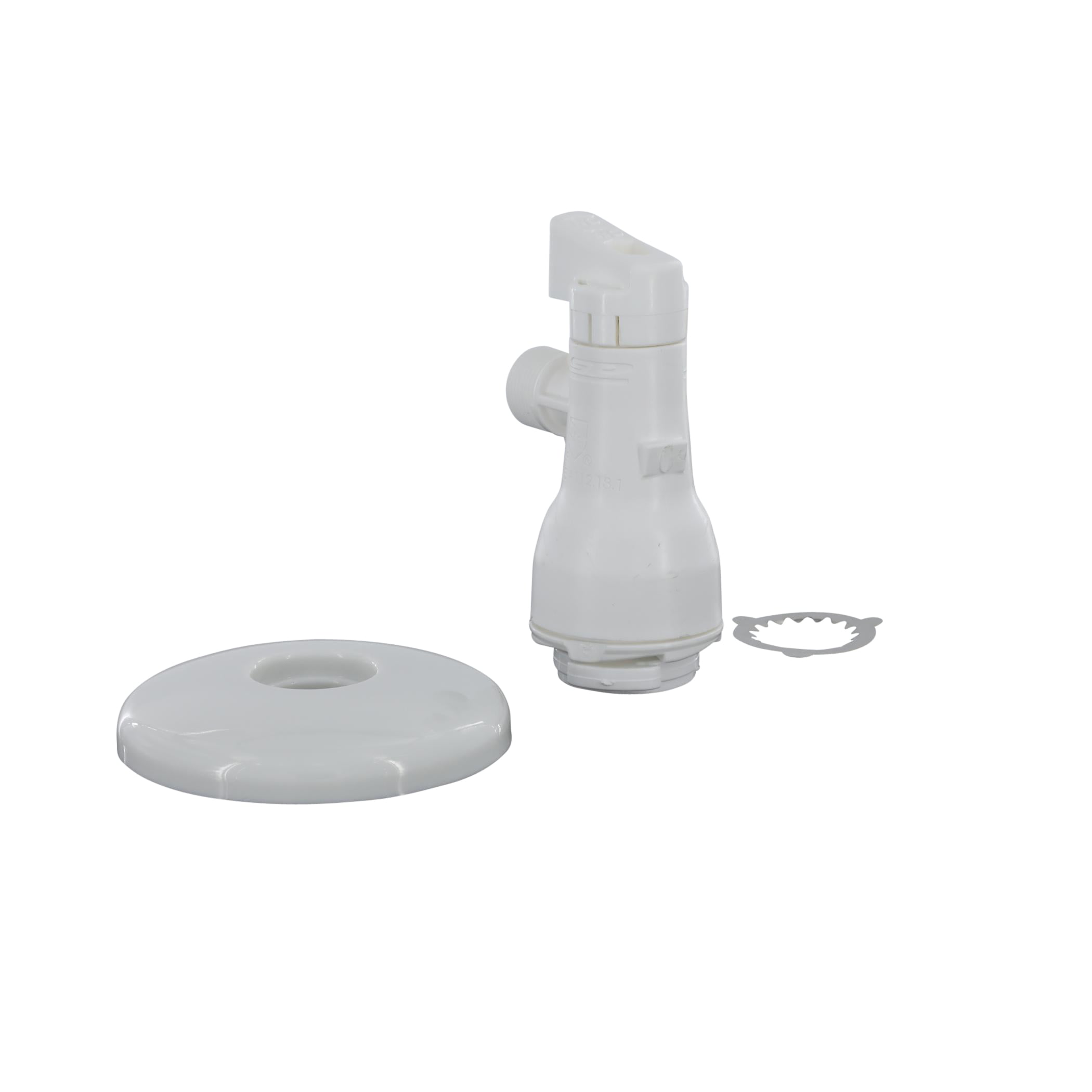

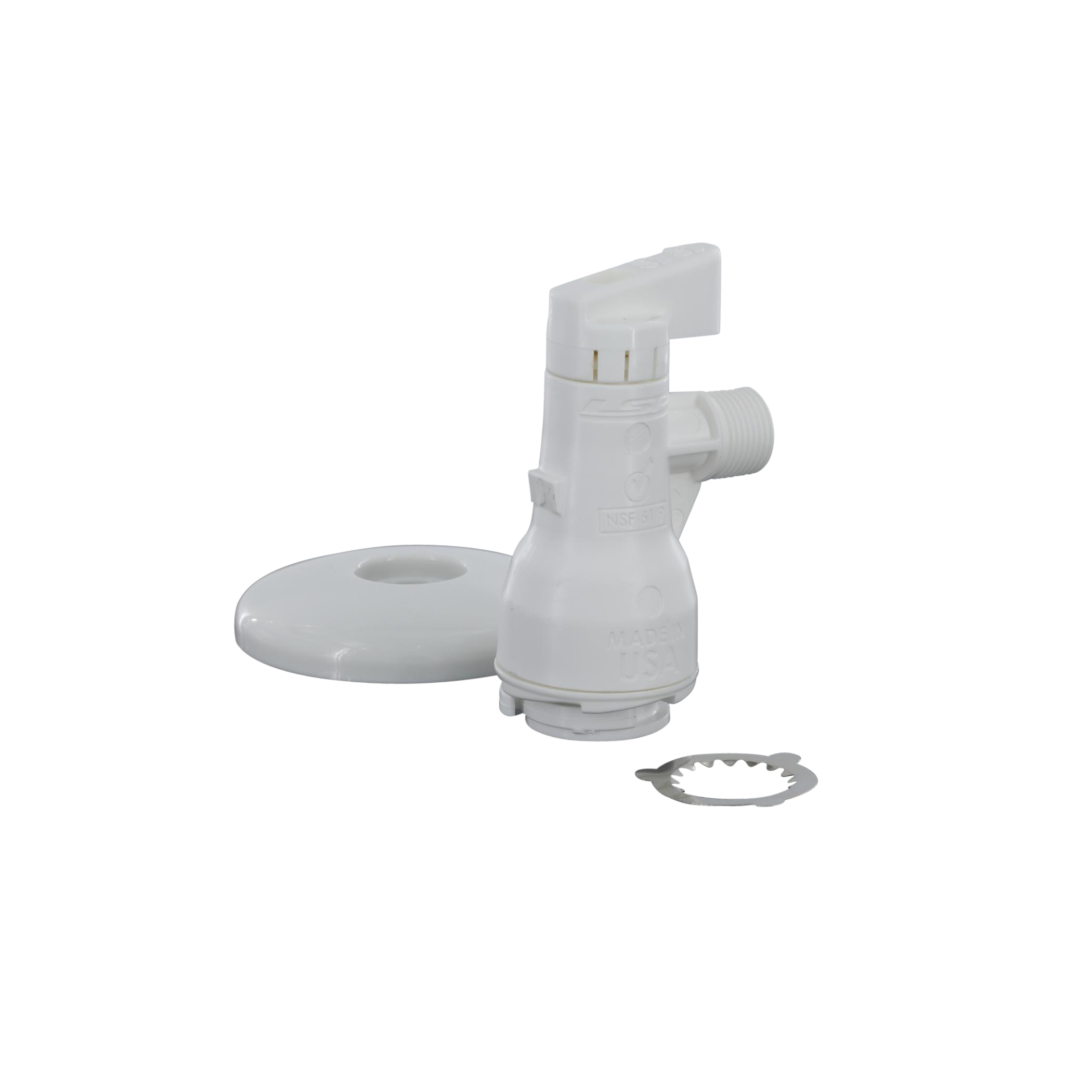

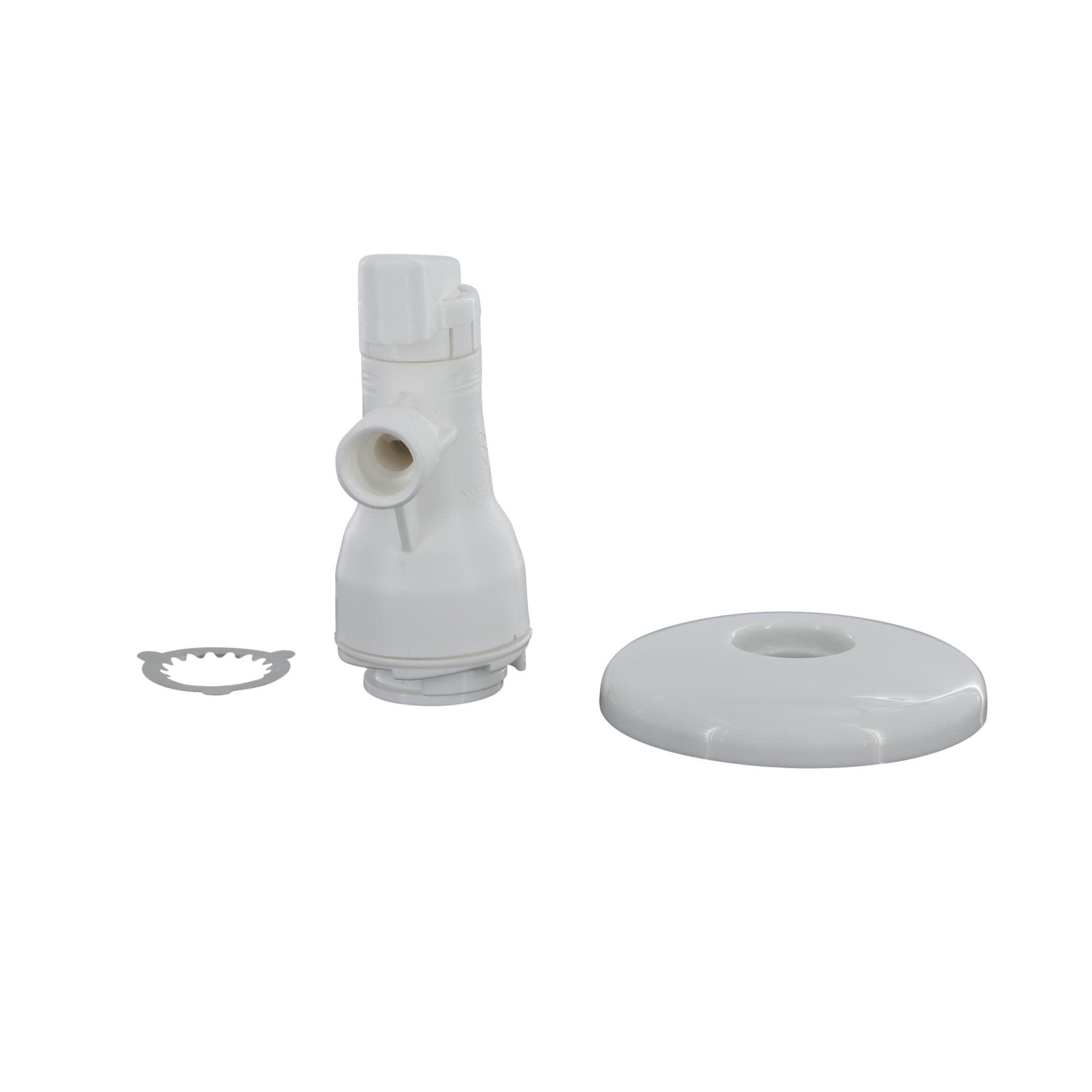

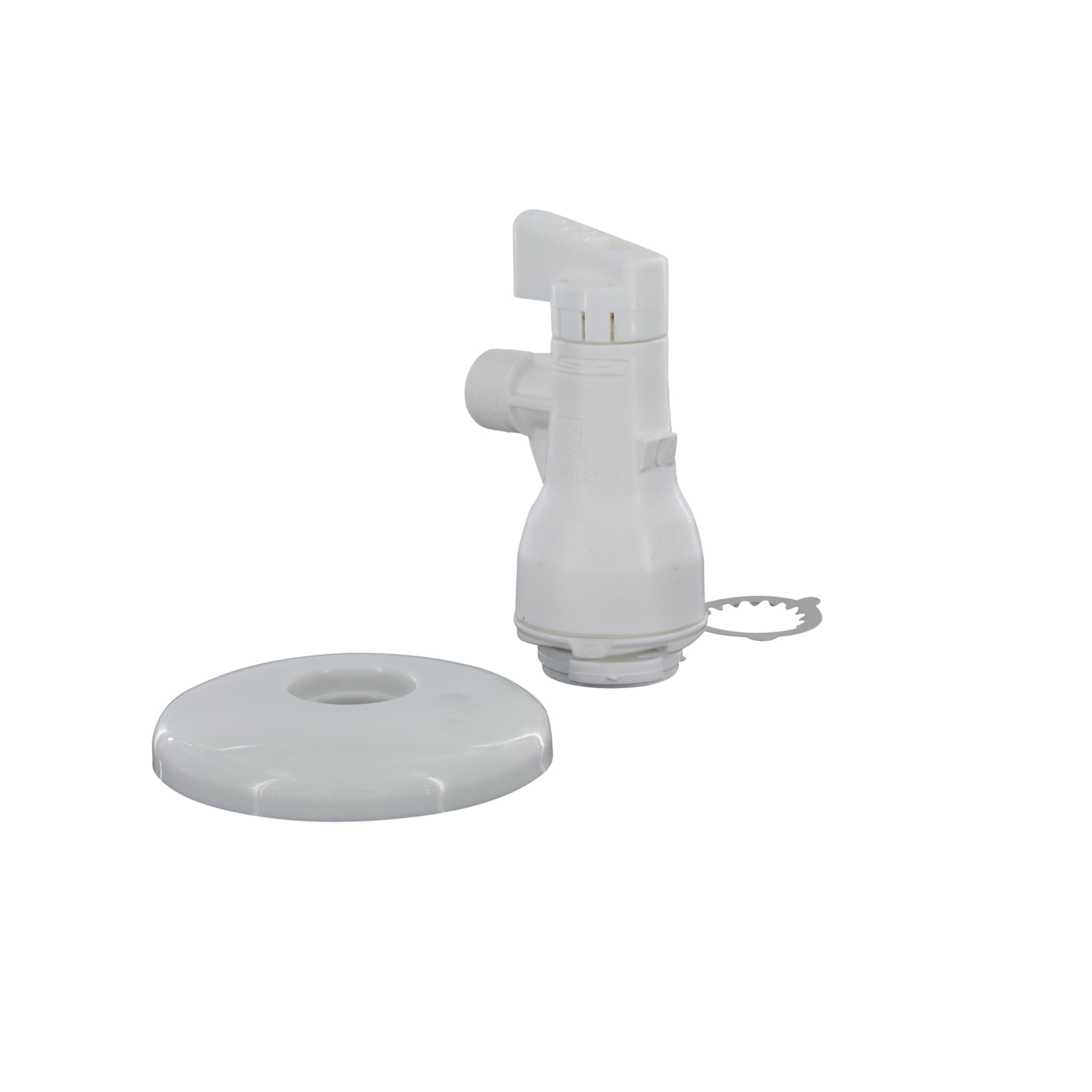

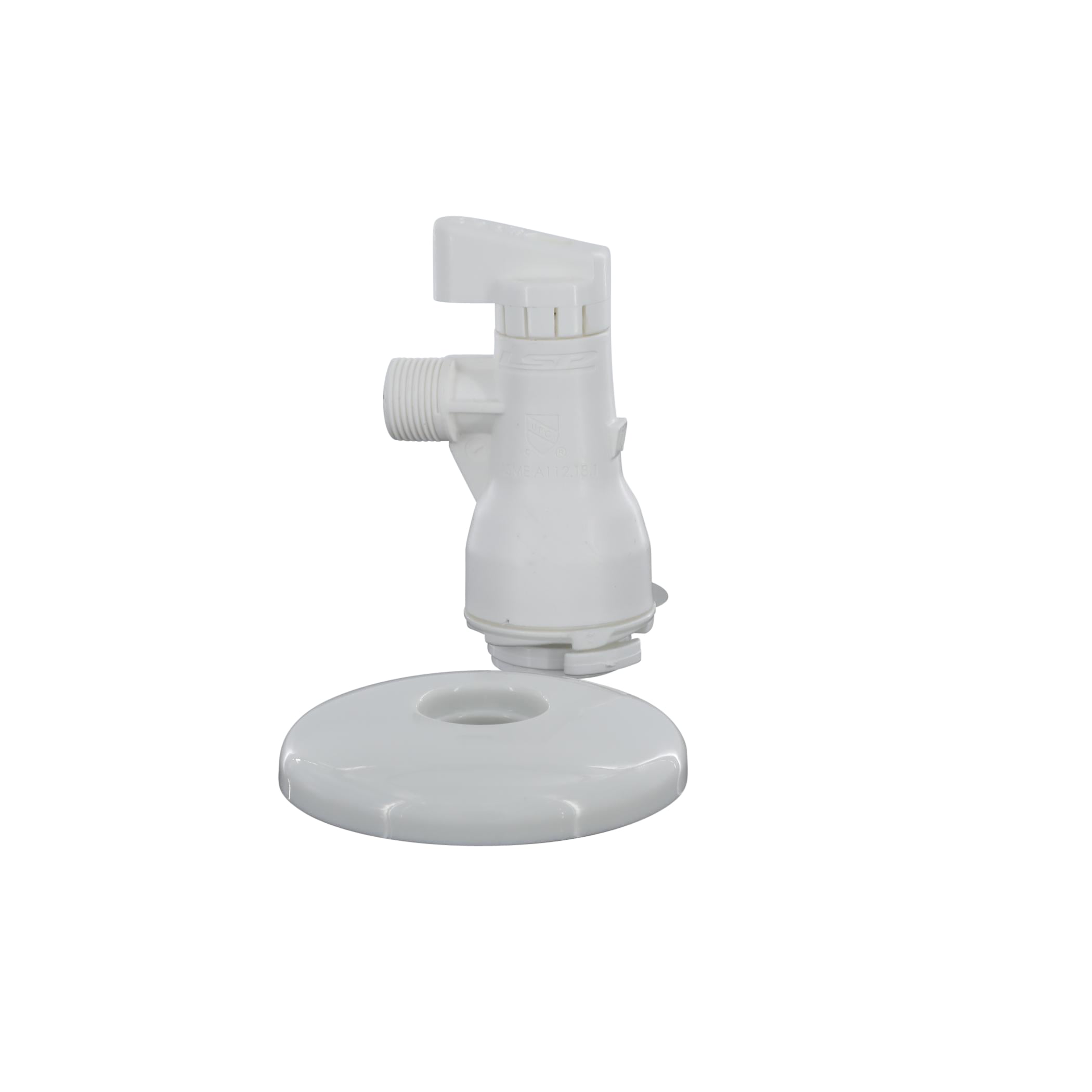

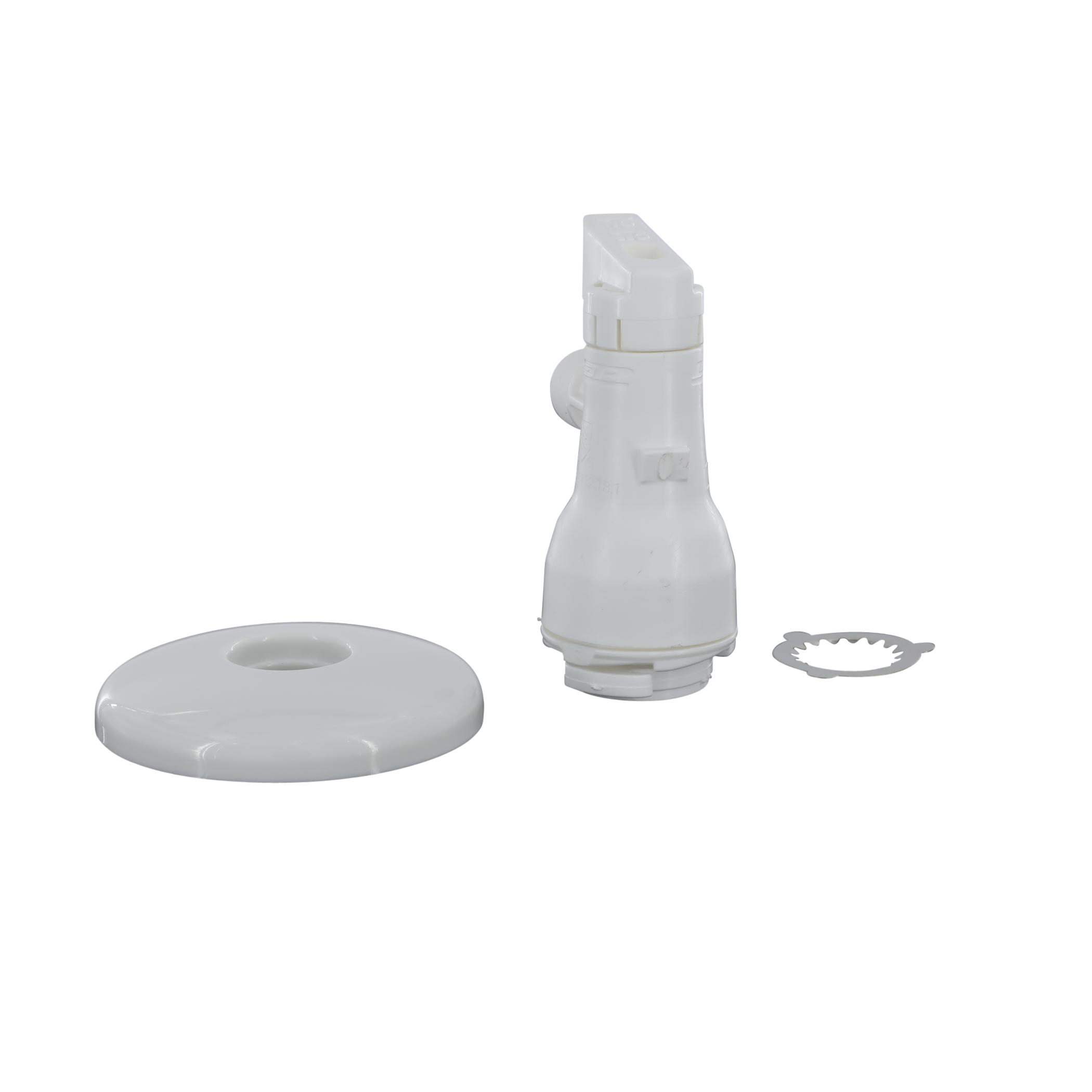

Polymer Push-On Quarter Turn Angle Stop Valve

Product Description

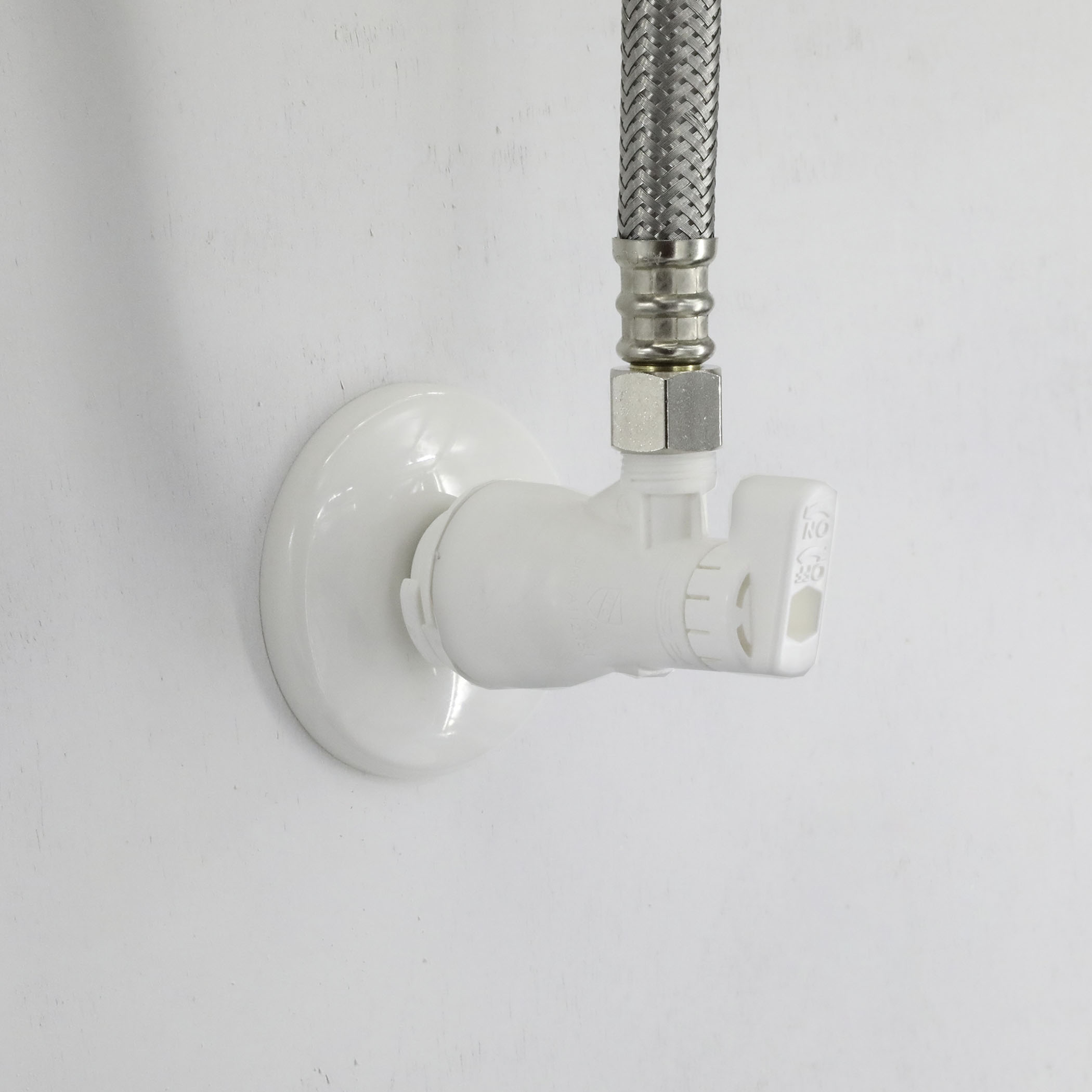

The Danco Push-On Quarter Turn Angle Stop Valve has a 1/2-inch quick push-on connect x 3/8-inch outer diameter comp outlet. It’s engineered with a polymer finish to resist chemicals, oxidation, scaling, mineral build-up, and heat resistance equipped with chloramine resistant rubber components. The Angle Stop valve is for use in potable water distribution systems and 100% leak tested. The easy use push-to-connect supply stop has an intuitive quarter (1/4-inch) turn design. The shut off water valve works with copper, PEX, CPVC and PE-RT piping. It has industry standard universally accepted release design. Most angle stop valves require tools, soldering, crimping or glue – with the Danco Angle Stop Valve all you need is to push the angle stop valve onto the pipe for a watertight seal.

• SIMPLE PUSH-TO-CONNECT INSTALLATION: The easy push-to-connect supply stop installs easily with no tools required and has a 1/4-inch turn design
• CORRISION RESISTANT: The chemical resistant engineered polymer is excellent for any oxidation, scaling, mineral build-up, and heat resistance equipped with chloramine resistant rubber components
• OPTIMAL PIPE MATERIAL COMPATIBILITY: The 1/2-inch push-to-connect x 3/8-inch OD comp outlet works with Copper, PEX, CPVC, and Copper piping
• LEAD-FREE COMPLIANT and 100% LEAK TESTED – The working temperature ranges from 40-160 degrees Fahrenheit with max working pressure of 125 PSI

Specifications

• PKG Height (in.)5.06
• PKG Width (in.)3.86
• PKG Length (in.)2.15
• PKG Weight (in.)0.096
• MaterialPlastic
• Product TypeStop Valve
