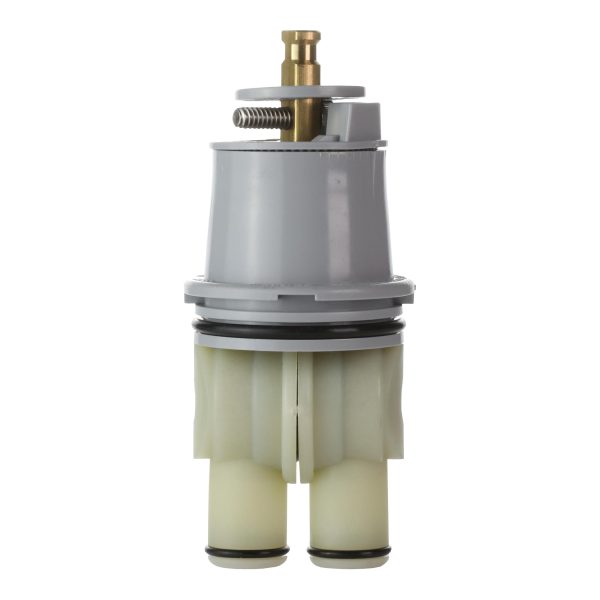

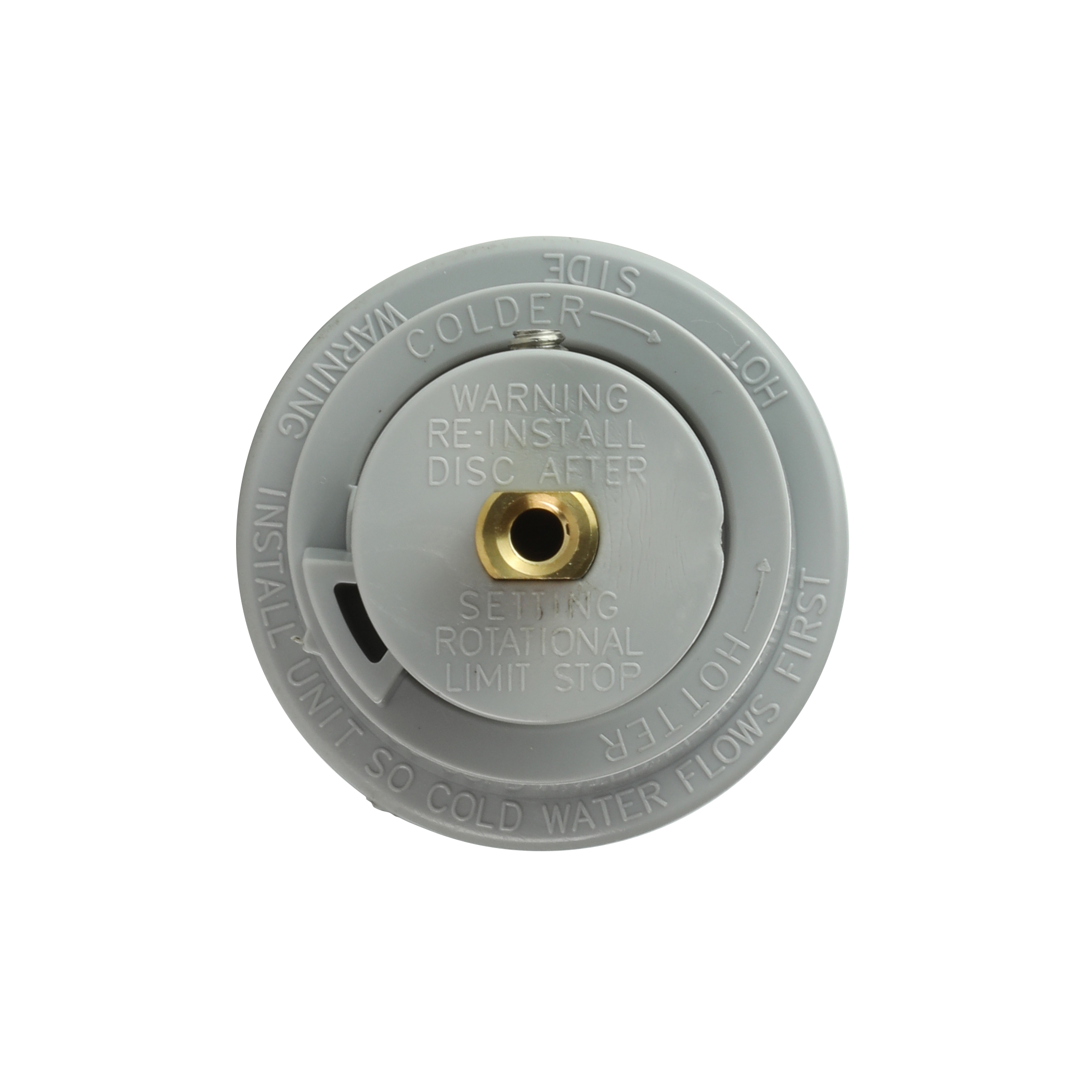

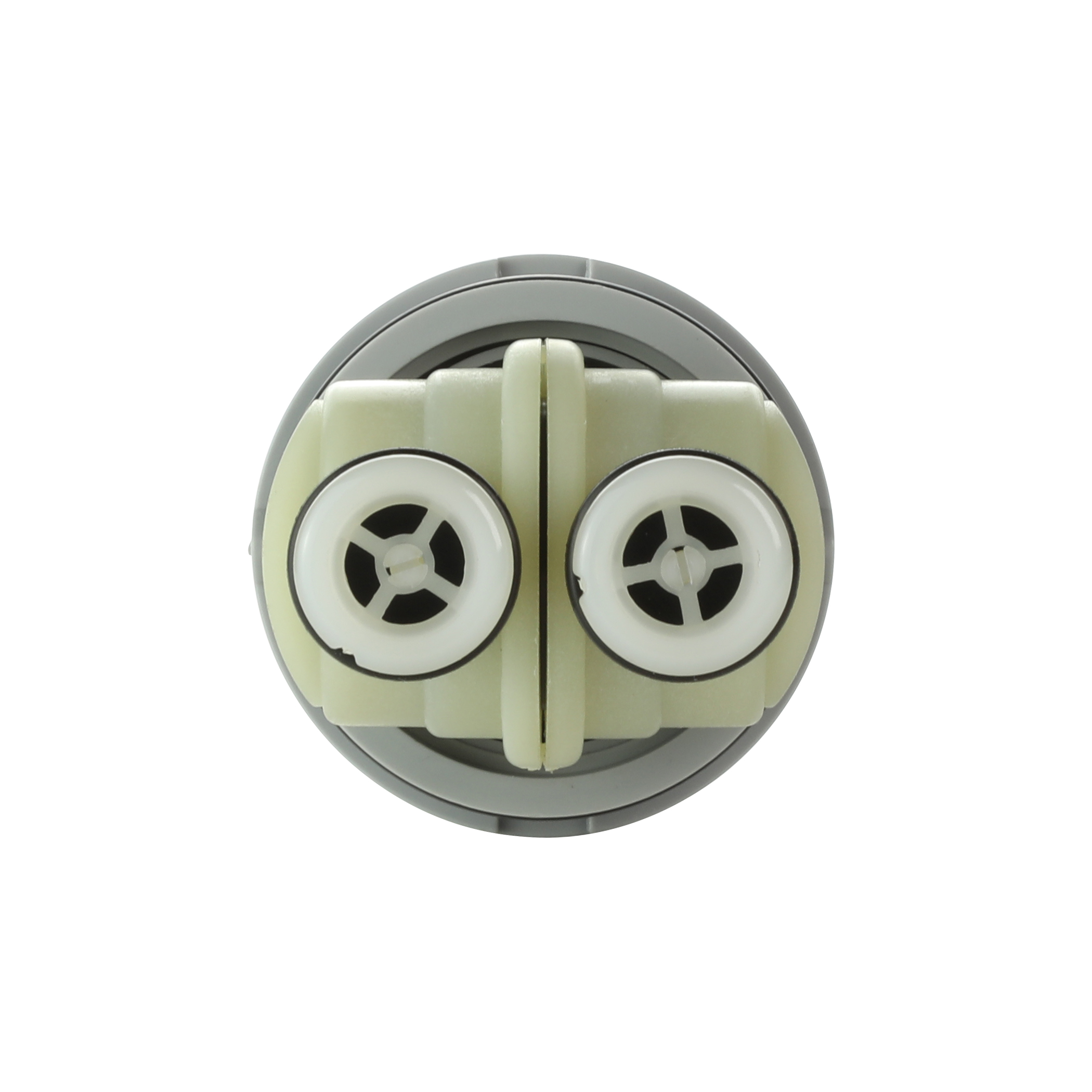

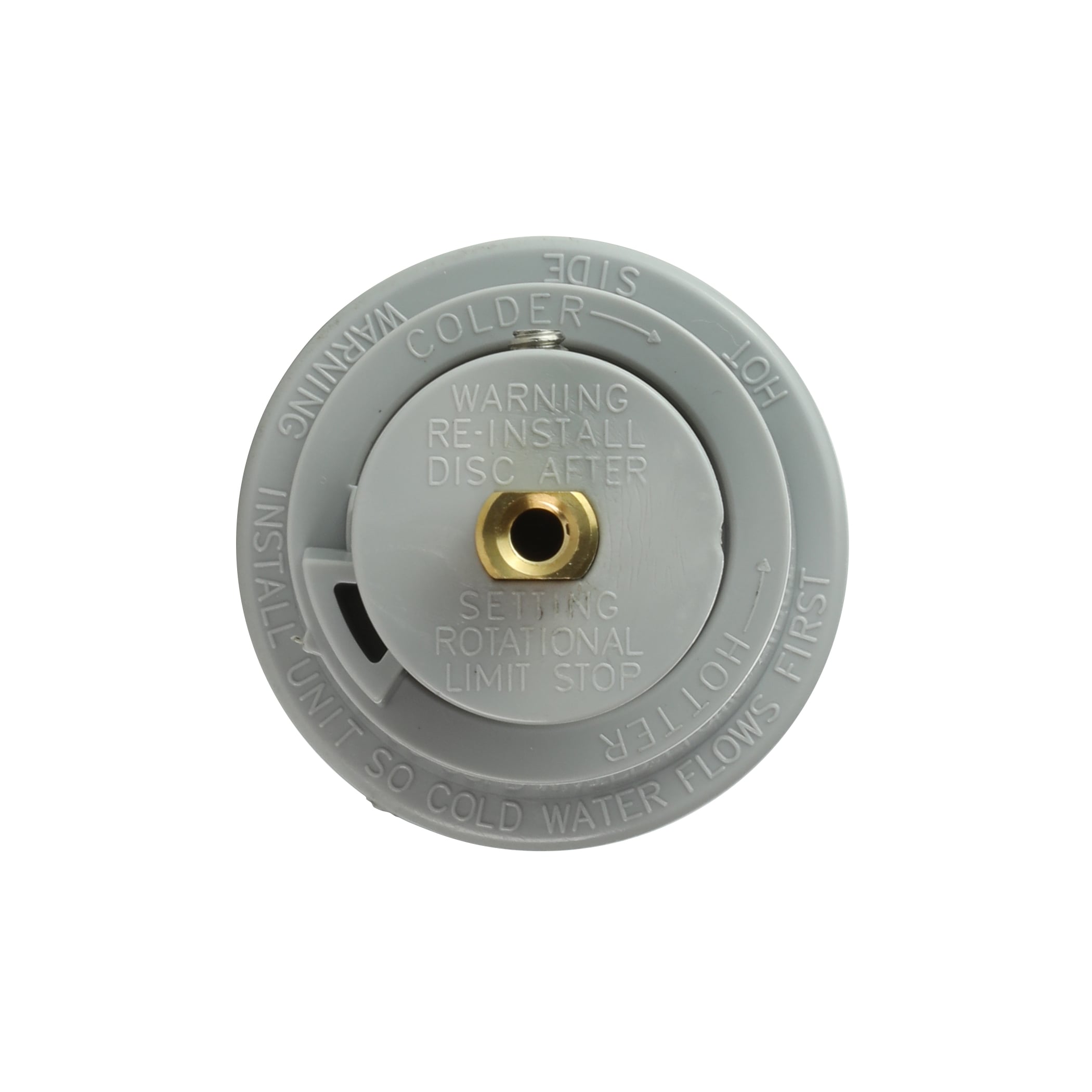

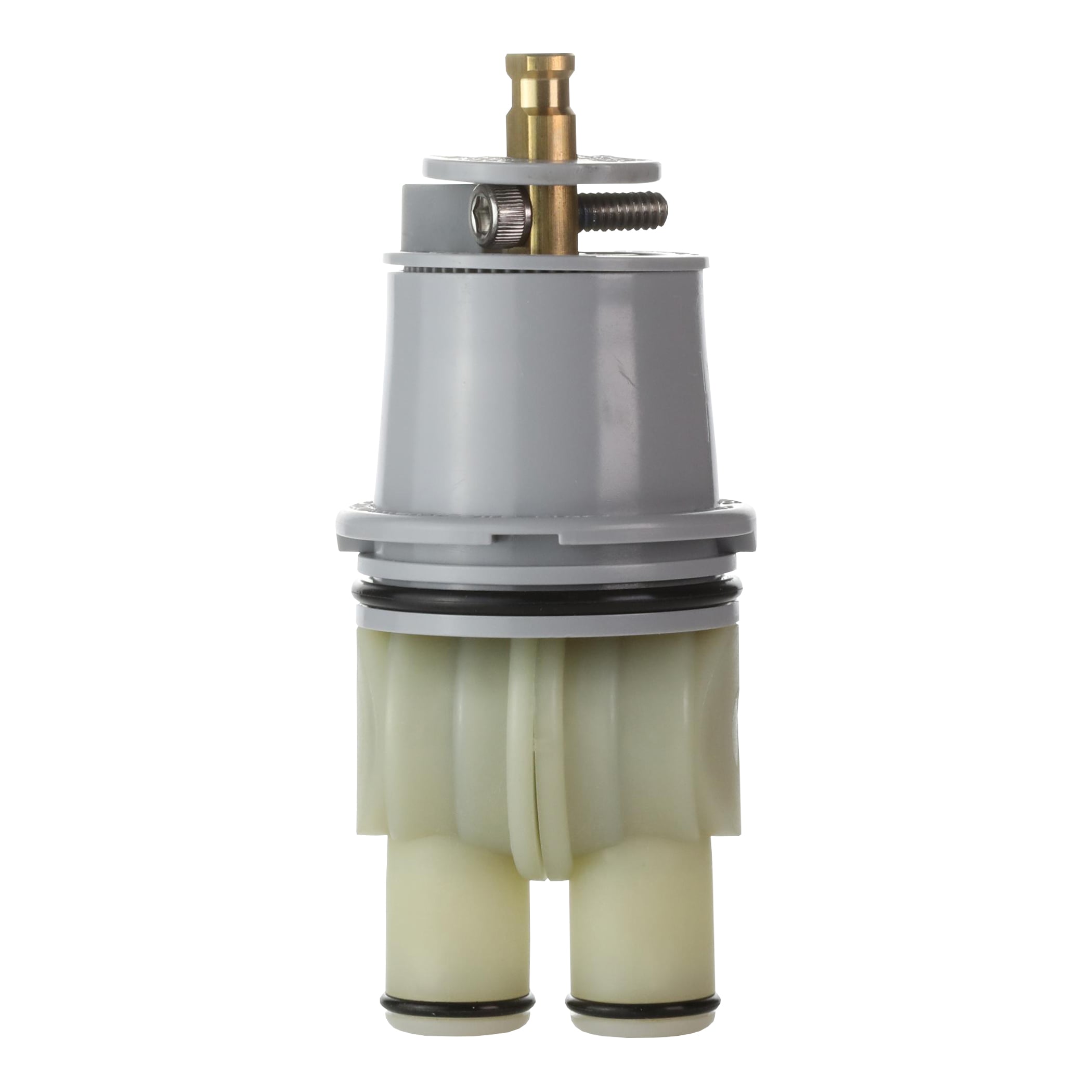

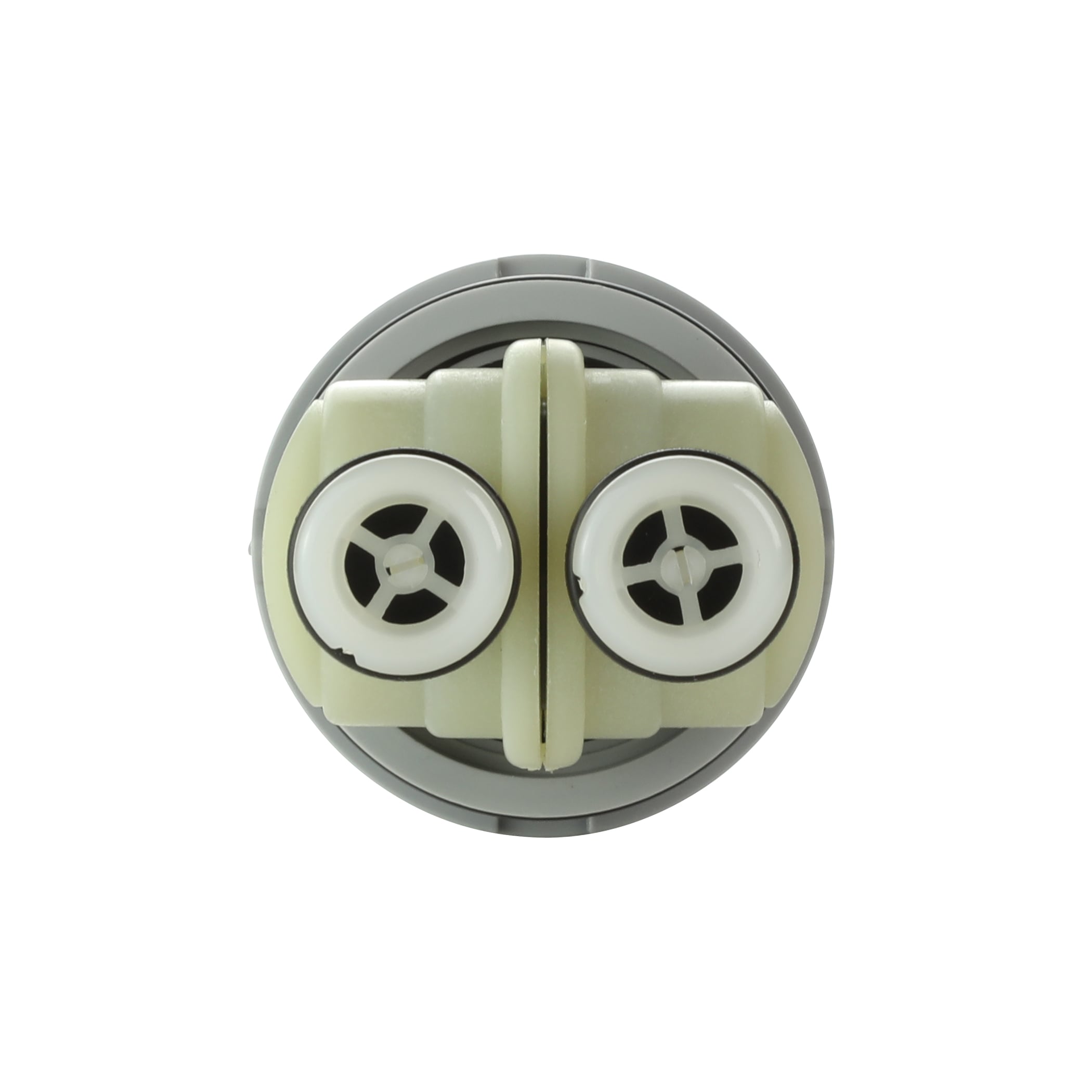

Cartridge for Delta Monitor 13/14 Tub/Shower Faucets
Cartridge for Delta Monitor 13/14 Tub/Shower Faucets
Cartridge for Delta Monitor 13/14 Tub/Shower FaucetsCartridge for Delta Monitor 13/14 Tub/Shower FaucetsCartridge for Delta Monitor 13/14 Tub/Shower Faucets

Cartridge for Delta Monitor 13/14 Tub/Shower Faucets

Repair your leaky faucet with the Danco Cartridge for Delta Monitor 13/14 Tub/Shower Faucets. Repairing a dripping faucet is an easy and inexpensive alternative to replacing the entire faucet. Installing a new cartridge returns the faucet to like new condition. This cartridge is made to provide single-function pressure-balance temperature control and is built for use with a Delta MultiChoice Universal valve body (not included). This replacement cartridge is easy to install and helps stop the leak so you can save water, energy and money!

Model # 10664
Unavailable
Danco
Not sure on the fit? Find out here Stem Finder Project Part Finder
Categories: , , , , ,

Product Description

Repair your leaky faucet with the Danco Cartridge for Delta Monitor 13/14 Tub/Shower Faucets. Repairing a dripping faucet is an easy and inexpensive alternative to replacing the entire faucet. Installing a new cartridge returns the faucet to like new condition. This cartridge is made to provide single-function pressure-balance temperature control and is built for use with a Delta MultiChoice Universal valve body (not included). This replacement cartridge is easy to install and helps stop the leak so you can save water, energy and money!

  • Plastic construction provides durability
  • Easy alternative to replacing the entire faucet
  • Fits Delta OEM# RP46074 (13/14 Series)
  • Made to provide single-function pressure-balance temperature control which keeps water temperature with a safe range
  • Built for use with a Delta MultiChoice Universal valve body (not included)
  • Compatible with hot and cold water applications
  • For use in single-handle tub/shower faucets
  • Stopping the leak saves water, energy and money
  • Similar to Danco model # 10347, but not exact match
    • Delta makes two very similar stems – both are sometimes interchangeable
  • Complies with the reduction of lead in drinking water act
  • White & Grey finish

Specifications

  • PKG Height (in.)7.40
  • PKG Width (in.)2.65
  • PKG Length (in.)2.20
  • PKG Weight (in.)0.34
  • Product Height(in).1.91
  • Product Width(in).1.91
  • Product Length(in).4.38
  • Product Outer Diameter (in.)1.91
  • OEM BrandDelta
  • Water/TypeHot, Cold
  • MaterialPlastic
  • Handle Type (1 Handle or 2 Handle)1
  • Product TypeFaucet Cartridge

Reviews

There are no reviews yet

Be the first to review “Cartridge for Delta Monitor 13/14 Tub/Shower Faucets”

Your email address will not be published. Required fields are marked *

* Answer is required

How to video

View Instructions 10664 Download Instructions

Step-by-step instructions

Leaky tub and shower faucets are not on our list of favorite things. But they're relatively simple to fix yourself. With a few tools and the right Danco replacement part, you can fix that leaky faucet yourself. Tools and supplies required: Phillips Screwdriver, Cartridge Puller, Pliers, Needle Nose Pliers, Fine Sandpaper or Steel Wool, Silicone Grease
1
step-1

The easiest way to remove the old Cartridge is to use a Cartridge Puller. Make sure to follow the instructions for the Cartridge Puller, which can be purchased at your local home improvement store. Because Cartridges are unique to specific type of Faucets, you will want to take your old Cartridge to your local home improvement store and use the Perfect Match locator system from Danco or use the online Stem Finder. This system makes it easy to find your replacement.

2
step-2

Next, remove the Temperature Limit Stop, Key Stop, Stop Tube, and the Trim Plate (as needed to access Cartridge).

3
step-3

Remove the Retainer Clip carefully as not to drop it behind wall.

4
step-4

The easiest way to remove the old Cartridge is to use a Cartridge Puller. Make sure to follow the instructions for the Cartridge Puller, which can be purchased at your local home improvement store. Because Cartridges are unique to specific type of Faucets, you will want to take your old Cartridge to your local home improvement store and use the Perfect Match locator system from Danco or use the online Stem Finder. This system makes it easy to find your replacement.

5
step-5

Using Silicone Grease, lubricate the inside of the Valve Body about 1”. Then lubricate the Exterior Rubber Components on the Cartridge with Silicone Grease as well.

6
step-6

Insert the new Cartridge, Hot inlet Left Side, Cold inlet Right Side into the Valve Body with the tab stamped “HC” on top and with the Stem Notch down.

7
step-7

Reinstall Trim Plate with original Screws.

8
step-8

Reinstall the Retainer Clip, Stop Tube, Key Stop, and the Temperature Limit Stop, in that order.

9
step-9

Slide the Handle onto the Stem or Handle Adapter onto the Stem. Do not use Handle Screws at this point. Turn the water supply back on and test for leaks and ensure the hot water temperature is adequate. Be sure not to exceed the maximum temperature allowed by local plumbing code. Finally, secure the Handle with the Set Screw and your project is complete.



Related Items

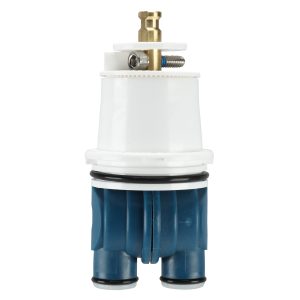

Replacement Cartridge for Delta Monitor Single-Lever Faucets
