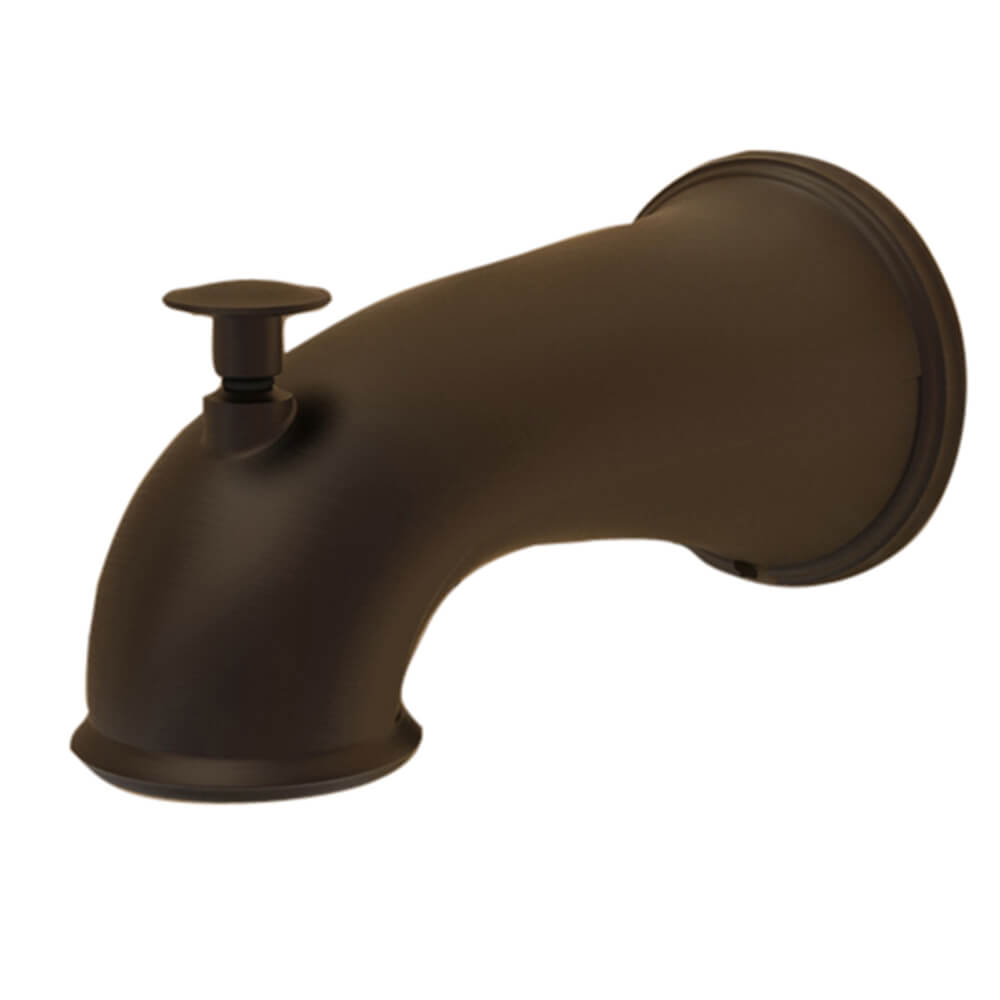

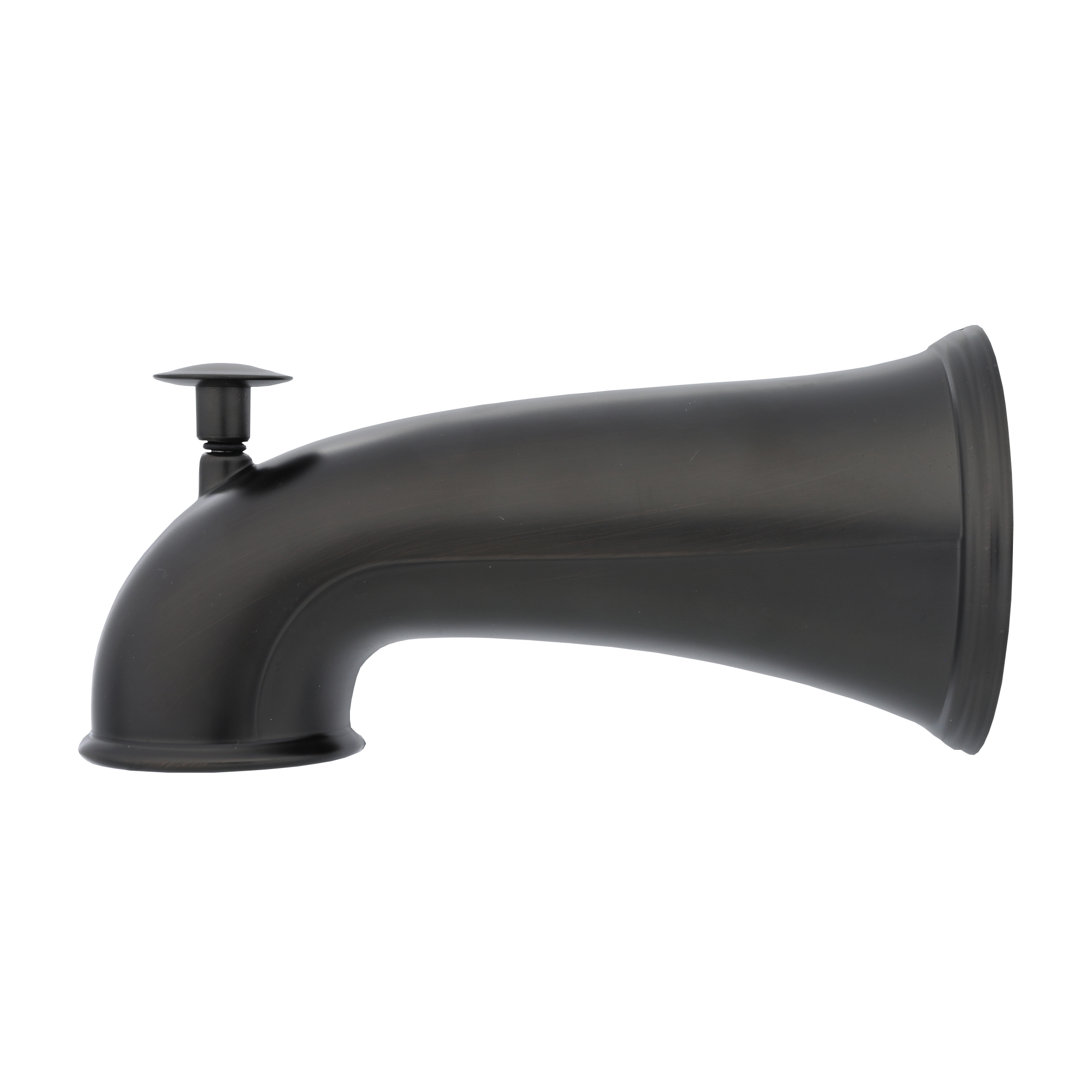

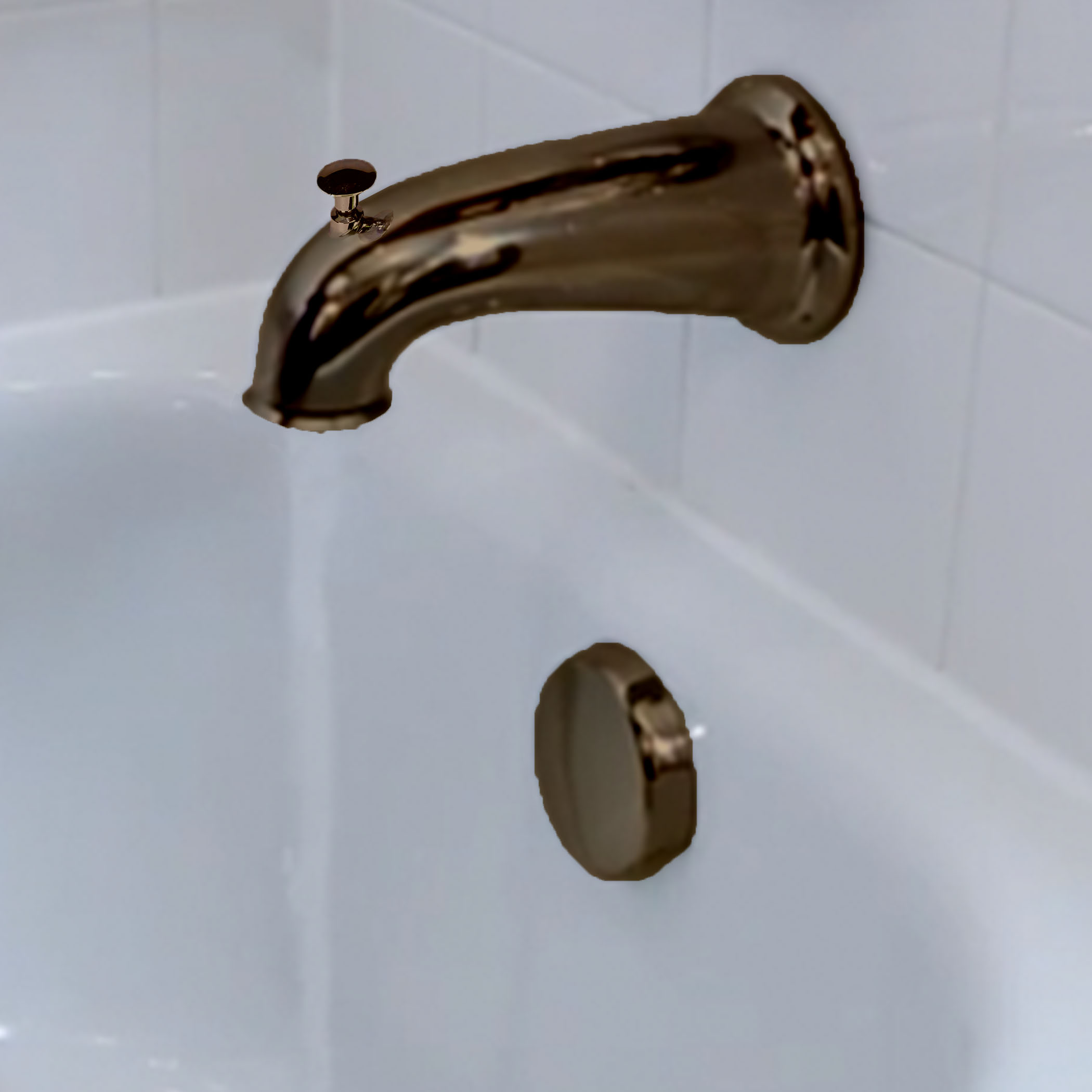

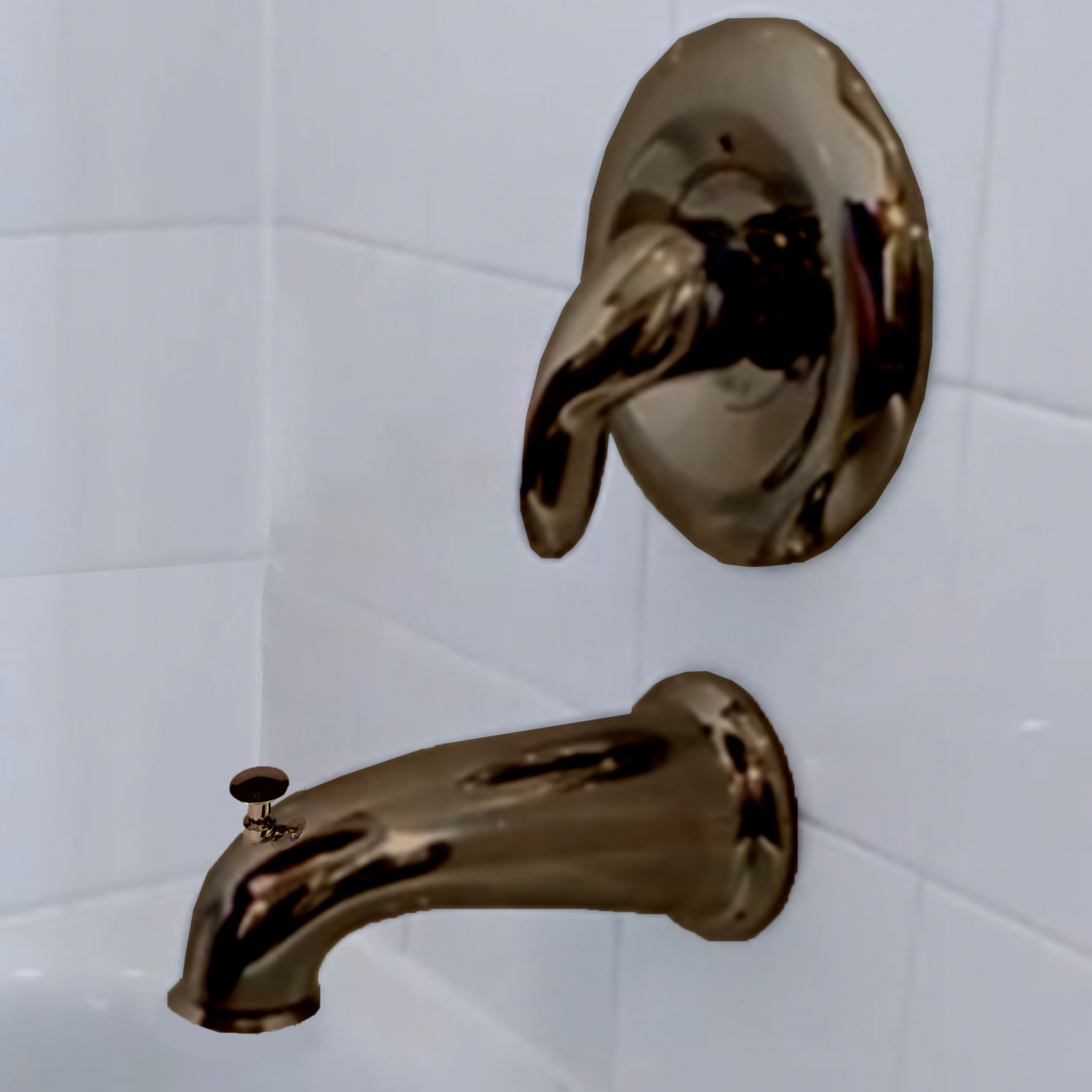

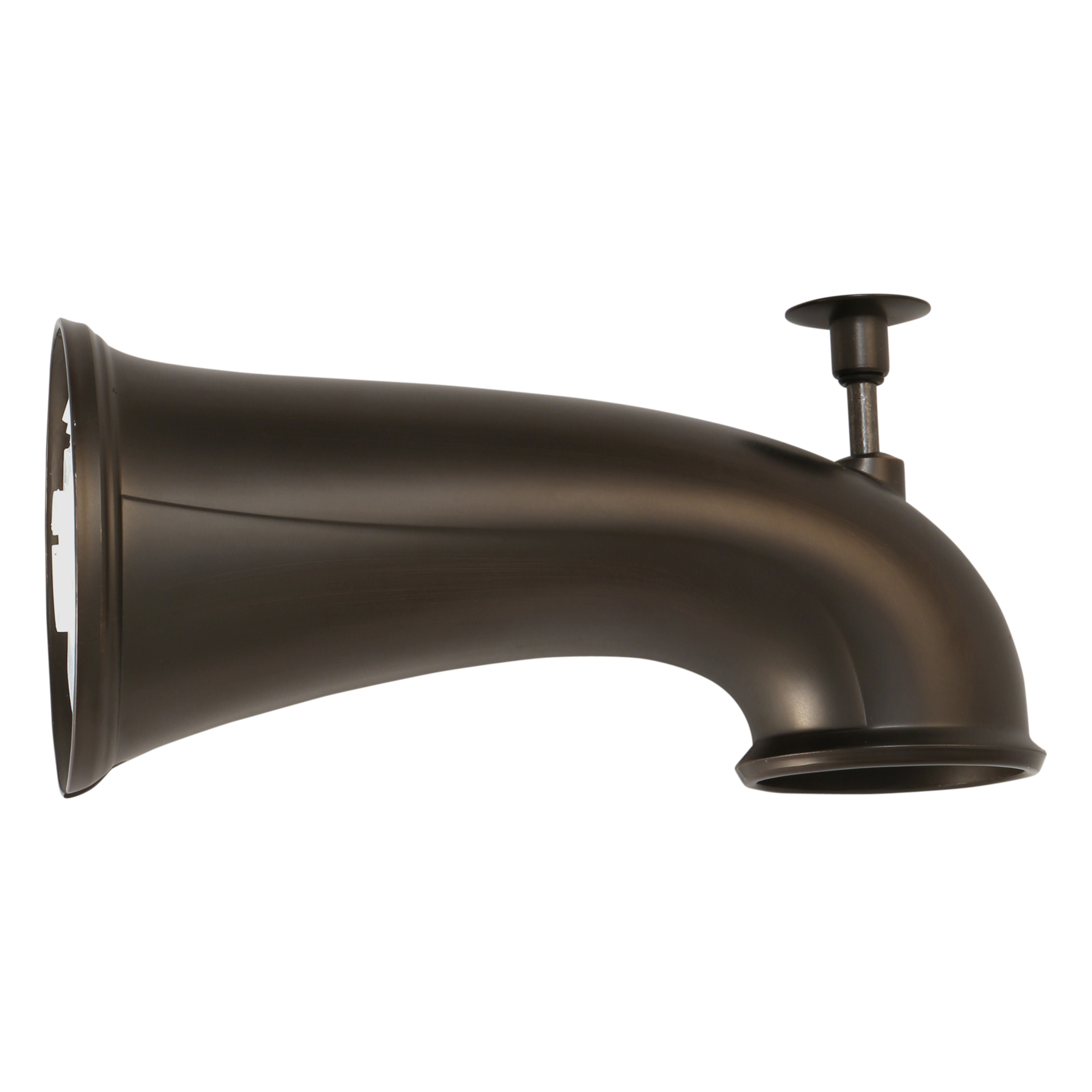

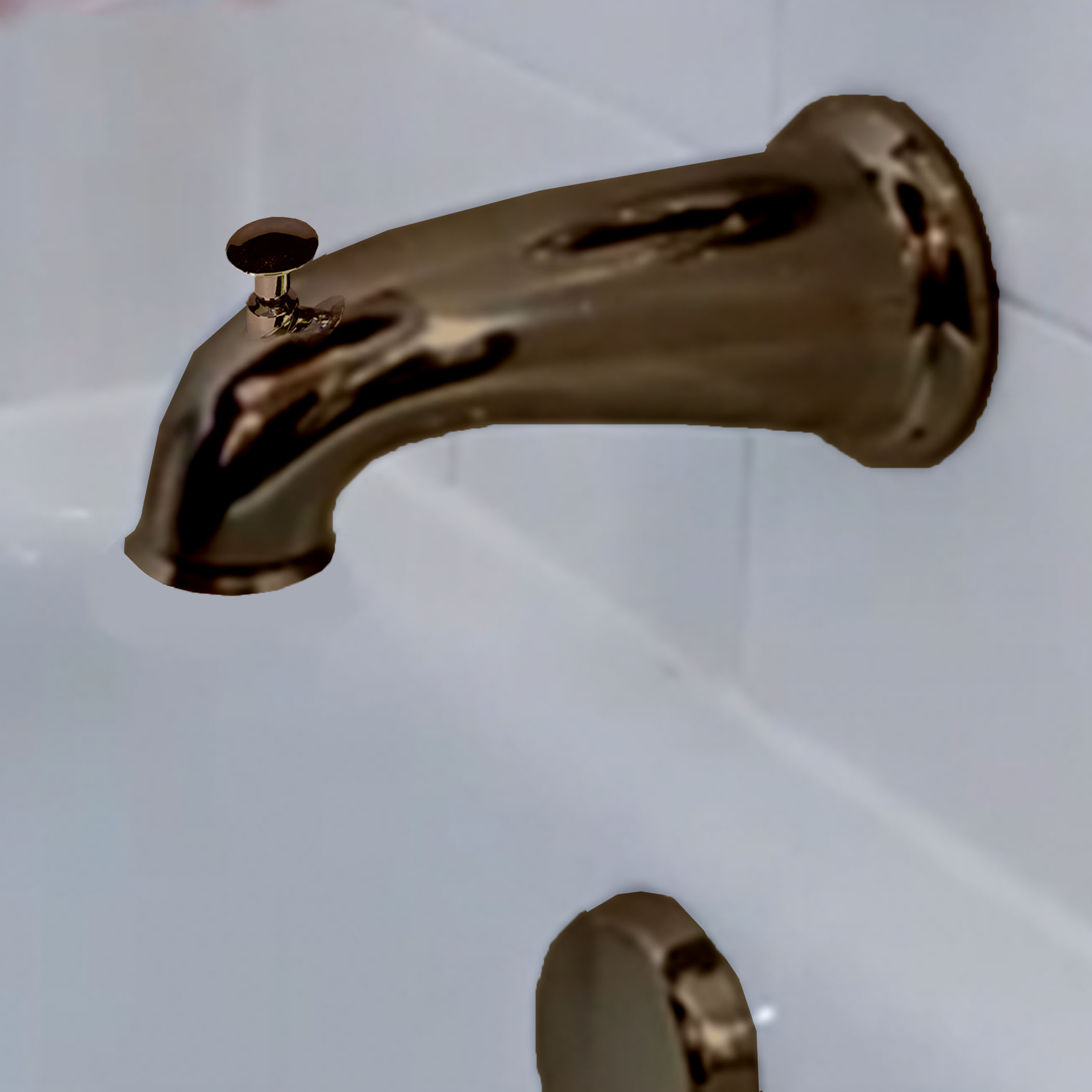

6 in. Decorative Tub Spout with Pull Up Diverter in Oil Rubbed Bronze

Product Description

Update your bathroom with the DANCO Tub Spout with Diverter in Oil Rubbed Bronze. Old worn out tub spouts have a tendency to erode and crack creating unwanted leaks. Replacing your dirty, dingy tub spout will help upgrade the look of your tub/shower and help prevent leaks which will save water and save you money. This tub spout is constructed from metal for strength and durability in your tub/shower. It features a 5-1/2 in. reach to provide an abundance of clearance space. This tub spout comes complete with adapters for a hassle-free installation.

• MODERN DESIGN – The Danco tub spout is ideal for replacing and updating your worn-out, non-functioning tub spout and the decorative design will give a fresh update to your bathtub.

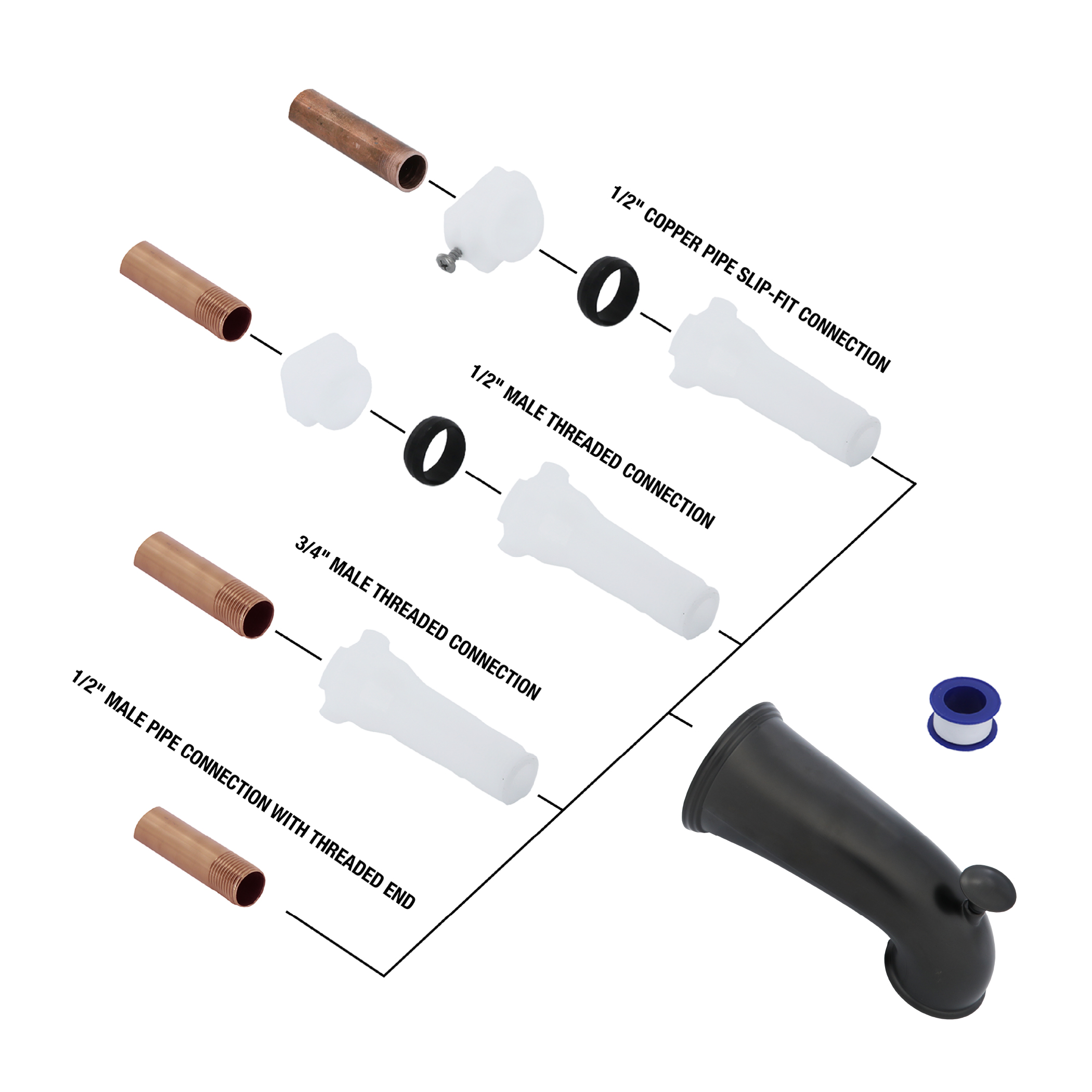

• CONNECTION SIZE: Designed to fit 1/2 in. Copper Pipe Slip Connection, 1/2 in. Male Threaded Connection with Short Stub out connection, 1/2 in. Male Threaded Connection with Long Stub out Nipple and 3/4 in. Male Threaded Connection with Short Stub Out Nipple.

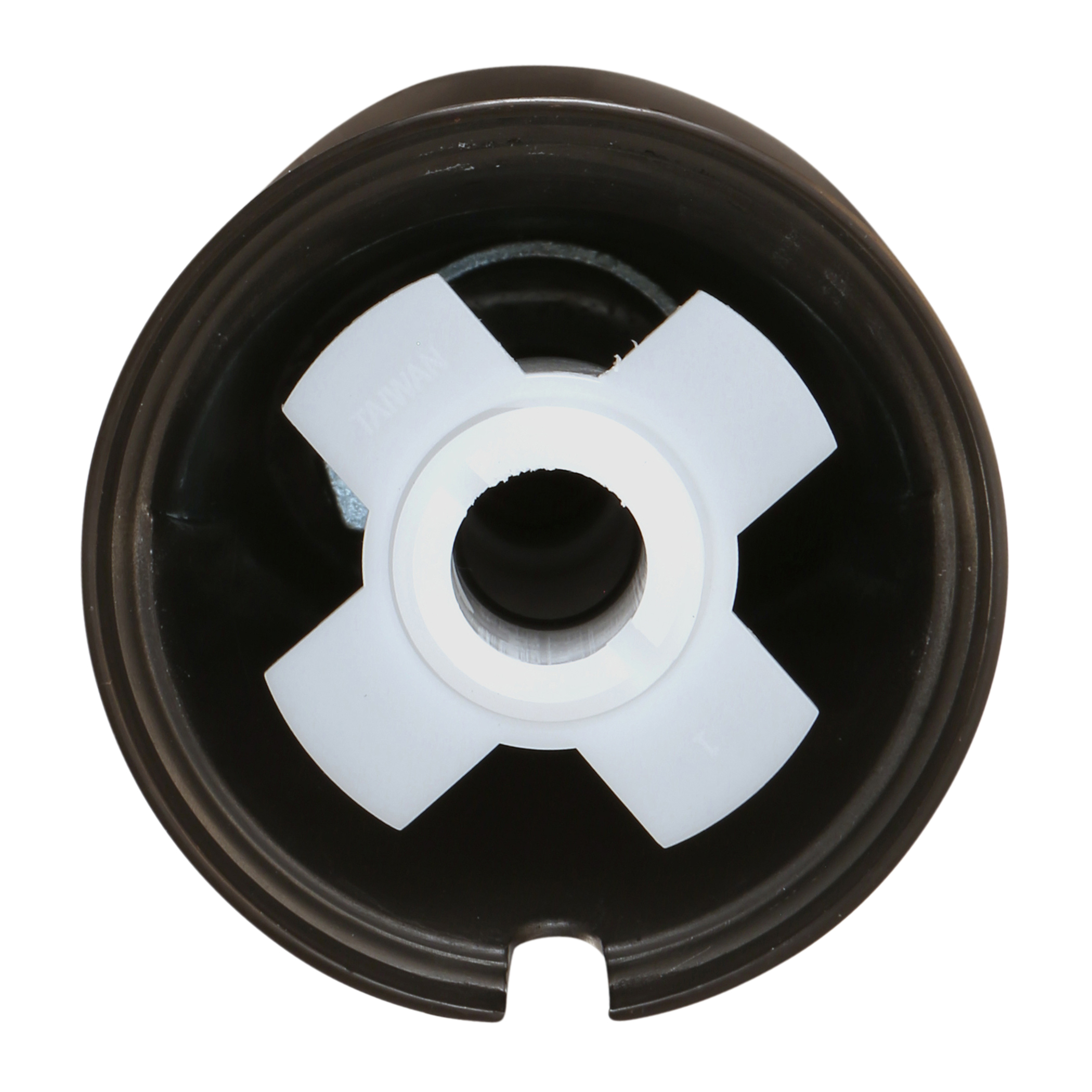

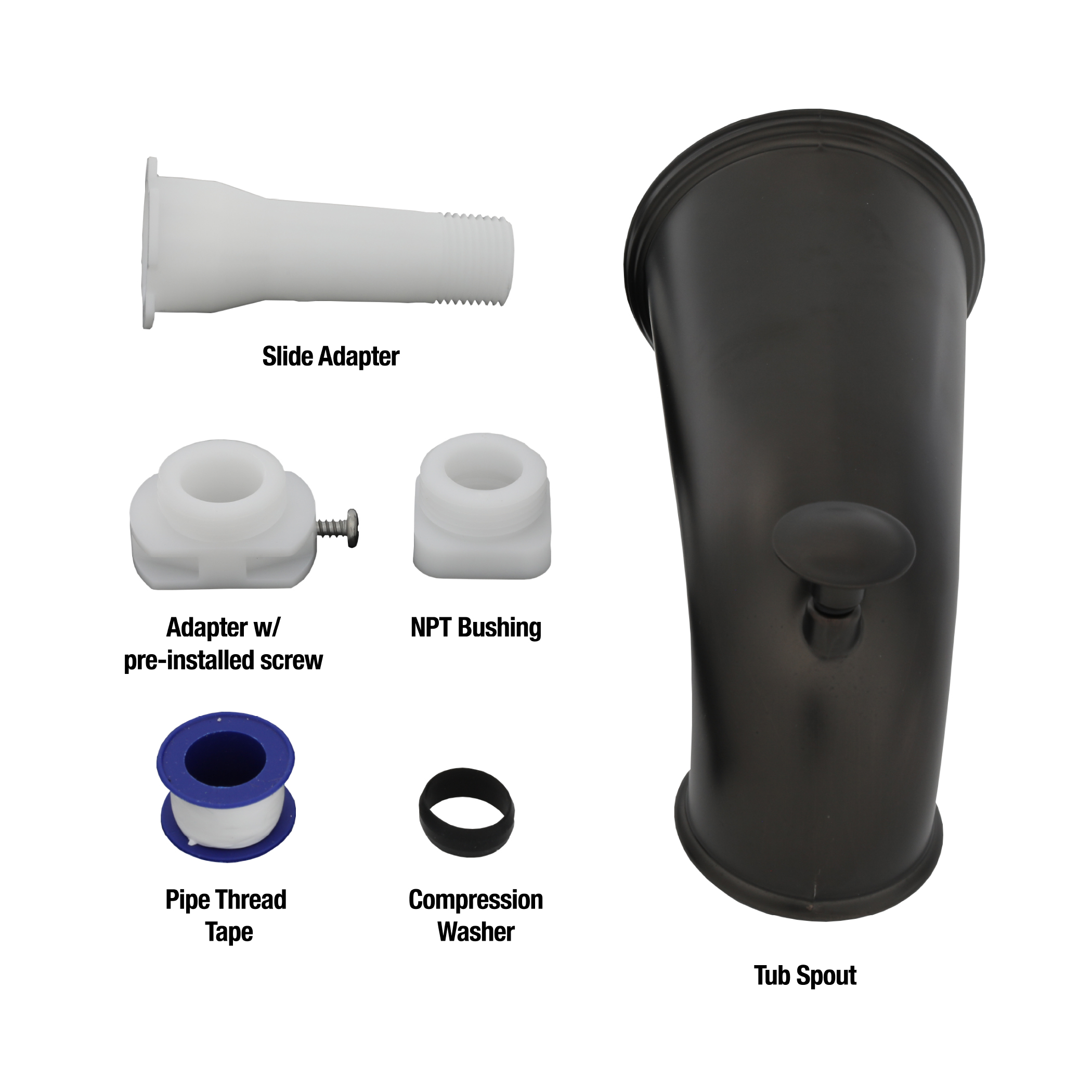

• ADAPTERS INCLUDED: This Tub spout DIY installation kit comes with an extension nipple and adapter to ensure a snug fit onto your existing stub out nipple pipe to replace your existing tub spout.

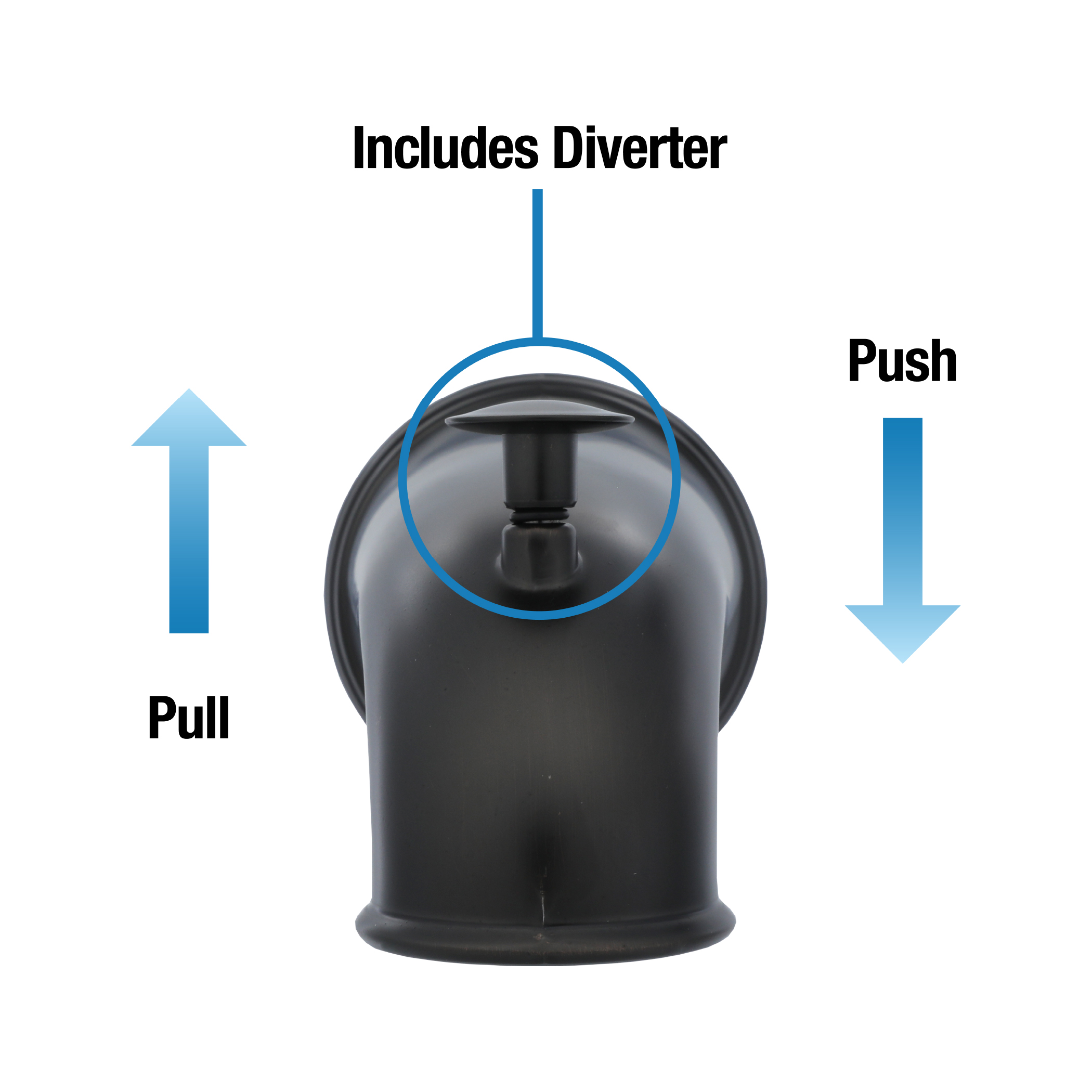

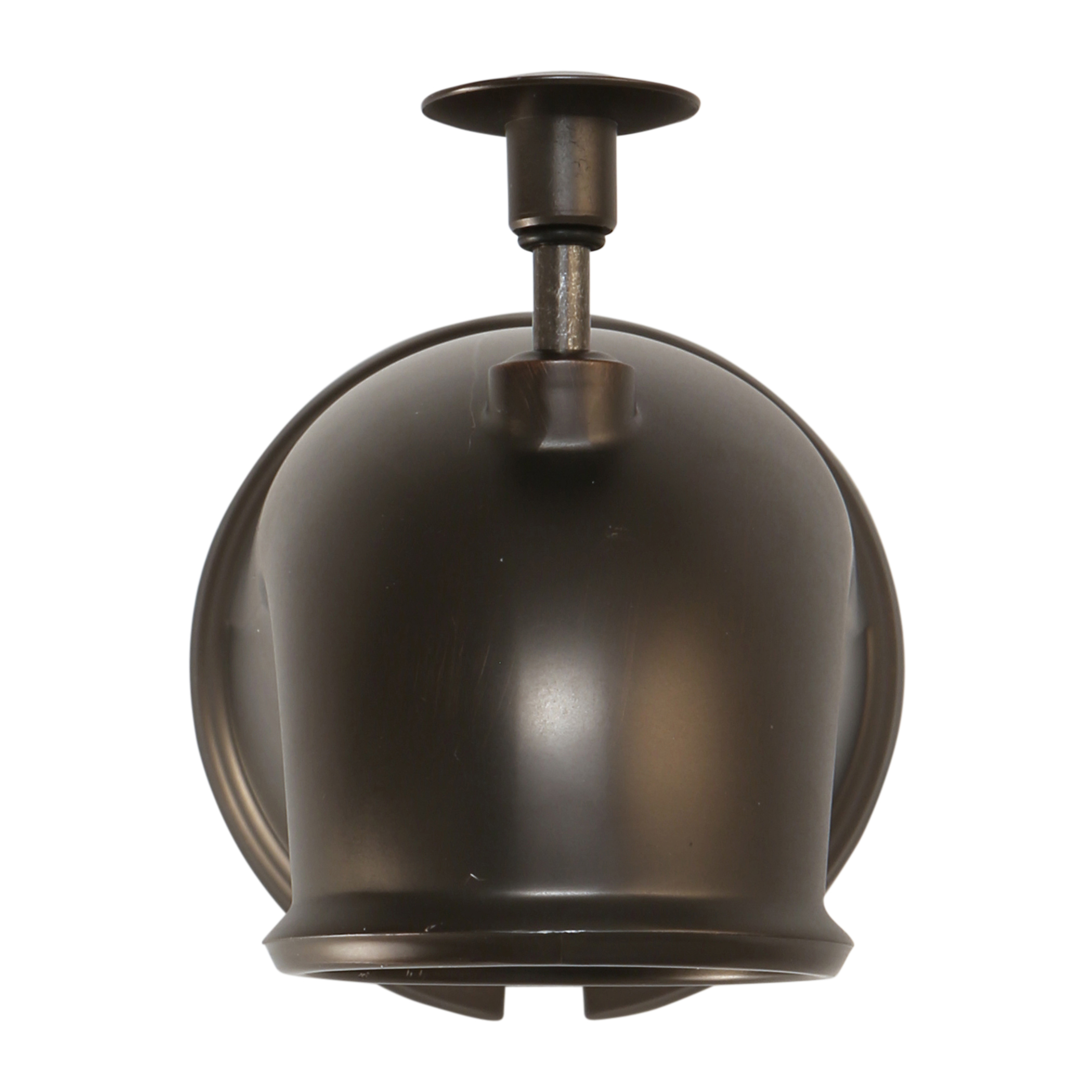

• DIVERTER INCLUDED: This tub spout includes a diverter lift rod to allow water stream to flow though downward into the tub or upward into showerhead.
• TUB SPOUT REACH: The bathtub faucet spout has a 5 in. reach.
• BUILT TO LAST: The durable metal construction provides strength, longevity and will endure the rigors of everyday use.
• HASSLE-FREE INSTALLATION: You will need Phillips screwdriver, sandpaper, silicon grease and pipe thread tape to install and to help prevent leaks and provide a better seal during installation.
• OIL RUBBED BRONZE FINISH resists corrosion and tarnishing and will complement your existing bathroom fixtures.

Specifications

• PKG Height (in.)7.00
• PKG Width (in.)7.80
• PKG Length (in.)3.10
• PKG Weight (in.)1.20
• Product Height(in).3.00
• Product Width(in).6.10
• OEM BrandUniversal
• MaterialMetal
• Product TypeTub Spout

How to video

Step-by-step instructions

Replacing a Tub Spout is an easy project that you can definitely handle yourself. It’s a great way to upgrade the look of your bathroom or to repair a spout that has seen better days. There are several different types of Tub Spouts. Here we are going to detail how to replace a ½” Copper Pipe Slip Connection, which is the most popular type of connection. For other connections, be sure to follow the manufacturer’s directions for installing your Tub Spout. Tools and supplies required: Phillips Screwdriver, Flat Head Screwdriver, Adjustable Pliers, Fine Gauge Sandpaper

1

Turning counterclockwise, remove the old Tub Spout. If your Tub Spout has a set screw holding it in place, be sure to remove that prior to rotating the Spout off. If your Tub Spout is hard to remove, you may need to use the end of a hammer or large wrench to help loosen while turning. Just insert the handle into the opening of the Tub Spout for leverage.

2

Measure the Stub Out Nipple length from the wall surface to the end of the Pipe. The Stub Out Nipple must be between 2” and 3” long. The end of the Stub Out Nipple should be even.

3

Use Sandpaper to remove burrs and sharp edges from the end of the Tubing and to polish the Tube surface to a smooth, bright copper color.

4

Slide the Adapter onto the Stub Out Nipple with the threads toward the wall. Lubricate the Stub Out Nipple tubing about 1” with Silicone Grease.

5

Slide the O-ring onto the Stub Out Nipple at least 1/2” from the end of the Nipple.

6

Slide the Extension Nipple onto the Stub Out Nipple and thread onto the Adapter aligning hole in the Extension Nipple with the slot in the Adapter. Turning clockwise, tighten the Extension Nipple onto the Adapter until the slot in the Adapter aligns with the hole in the Extension Nipple.

7

Thread the Screw into the Retainer Ring. Slide the Retainer Ring Assembly onto the Extension Nipple. Align the Screw with recessed hole on the Extension Nipple. Tighten the Screw, forcing it to break through the Extension Nipple. Using a Phillips Screwdriver, tighten the Screw until it touches the Stub Out Nipple. Then tighten 1/2 to 1 full turn to secure the Extension Nipple to the Stub Out Nipple. Do not over tighten.

8

Turning clockwise, apply 6 to 8 turns of the Pipe Thread Tape to the threads on the Male end of Extension Nipple.

9

Turning clockwise, tighten the new Spout onto the Extension Nipple.

10

Turn water on and test for leaks. If water is leaking from the rear of the Tub Spout, reinstall, as this could damage your wall.
