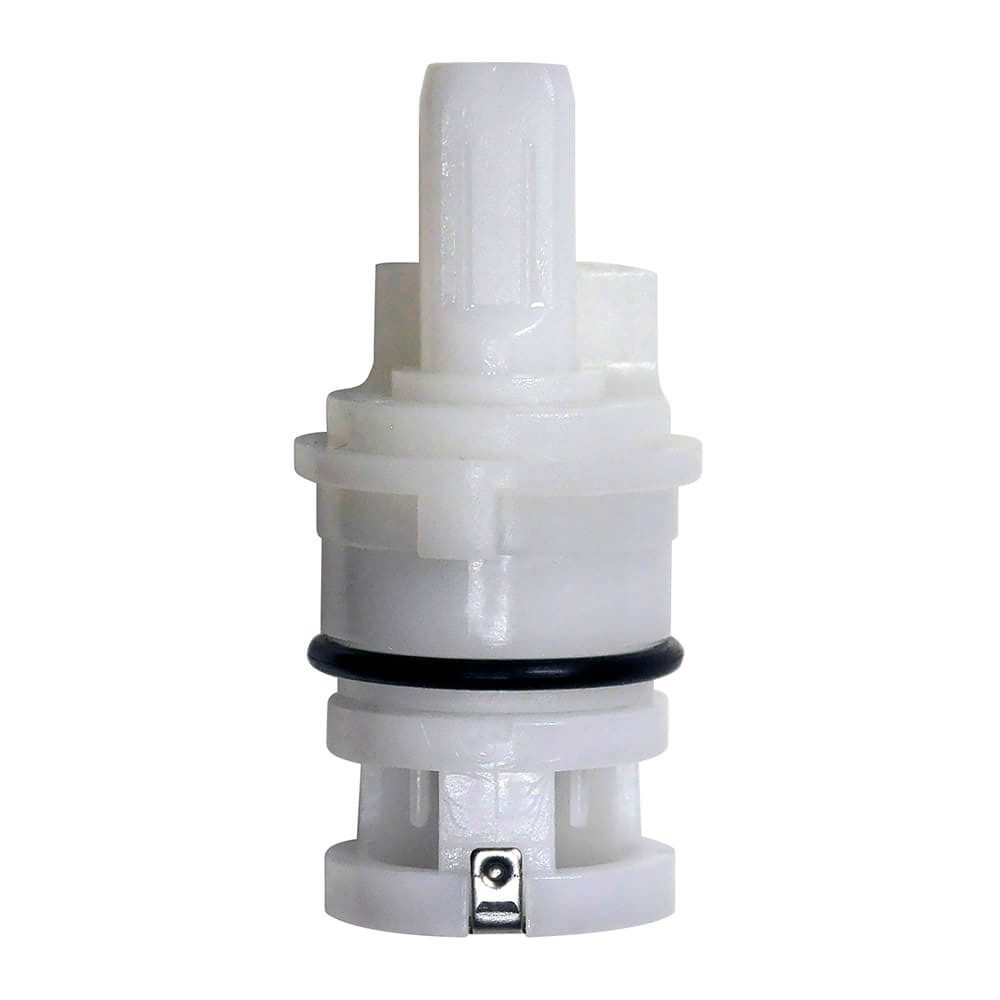

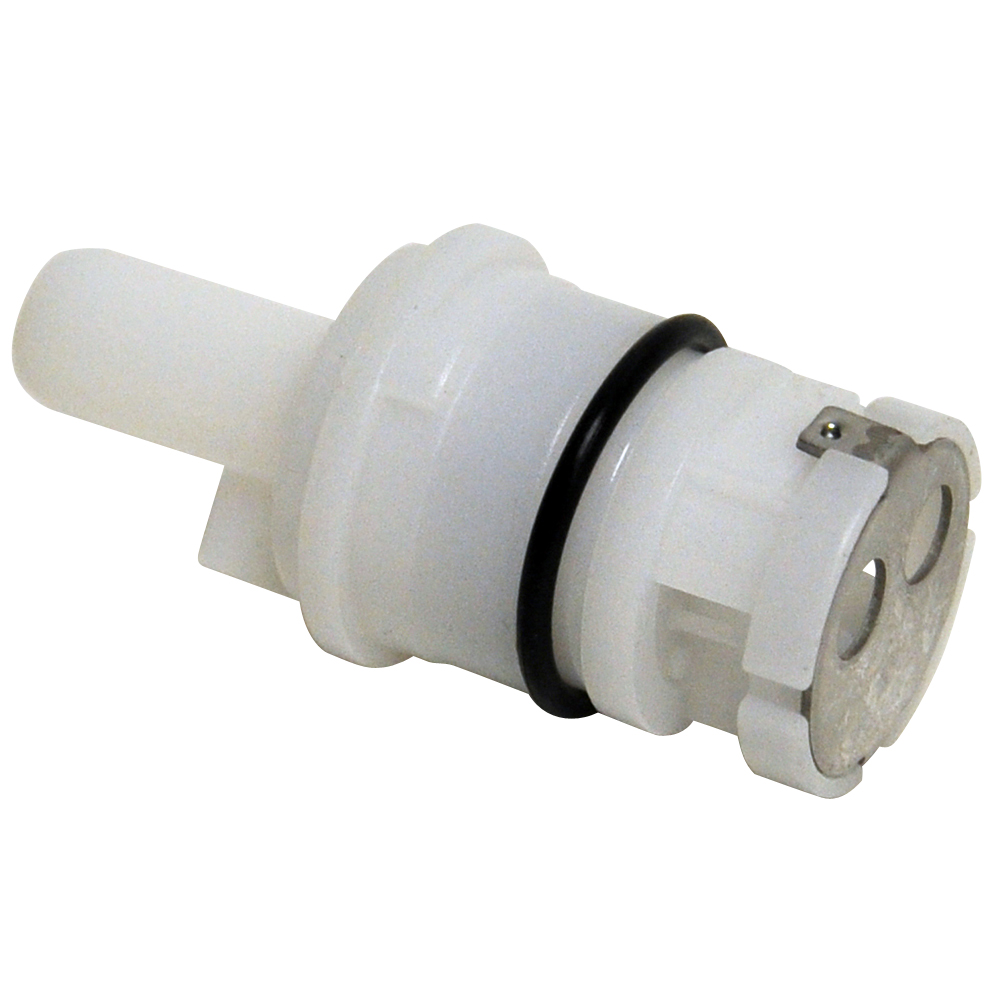

3S-9H/C Hot/Cold Stem for Delta/Glacier Bay Faucets

Repair your leaky faucet with the Danco 3S-9H/C Hot/Cold Stem for Delta/Glacier Bay Faucets. Replacing a faucet stem is an economical alternative to replacing the entire faucet. A dripping faucet wastes both water and energy. The installation of a new faucet stem and seat will stop the drip and return your faucet to like new condition.

Model # 10405A
3.88 out of 5 based on 8 customer ratings
8 customer reviews Write a review

Available at

Create a new project list

Product Description

Repair your leaky faucet with the Danco 3S-9H/C Hot/Cold Stem for Delta/Glacier Bay Faucets. Replacing a faucet stem is an economical alternative to replacing the entire faucet. A dripping faucet wastes both water and energy. The installation of a new faucet stem and seat will stop the drip and return your faucet to like new condition.

  • Durable plastic construction
  • Fits Delta, Glacier Bay and Luxtra faucets
  • Suggestion: Danco handles to use – model # 10304 & 10537
  • For hot and cold water applications
  • Ceramic disc style stem; bonnet included
  • ID length 3, broach S
  • Complies with the reduction of lead in drinking water act

Specifications

  • PKG Height (in.)4.18
  • PKG Width (in.)1.80
  • PKG Length (in.)1.11
  • PKG Weight (lb.)0.04
  • OEM BrandDelta, Glacier Bay, Luxtra
  • Water/TypeHot,Cold
  • Handle Type (1 Handle or 2 Handle)2
  • ApplicationSink
  • Product Height(in).0.00
  • Product Width(in).0.94
  • Product Length(in).1.88
  • Product Outer Diameter (in.)0.00
  • Product Inner Diameter (in.)0.00
  • MaterialPlastic
  • Product TypeFaucet Stem

How to video

  View Instructions 10405A Download Instructions

Step-by-step instructions

Is anything more annoying than a leaky faucet? Maybe not; But it's also well within your power to fix it yourself with Danco. Read on, to find out how. Tools and supplies required: Flat head screwdriver, Phillips head screwdriver, wrench, seat removal tool (optional)
1
step-1

First, determine the source of the leak. If water is leaking from underneath the handle onto the counter, the stem of whichever handle is leaking needs to be replaced. If water is dripping from the faucet, turn off the hot water supply valve under the sink. If water is still dripping, you need to replace the cold stem (right handle). If the water stops dripping when you turned off the hot water valve, you need to replace the hot stem (left handle). Once you’ve determined the trouble stem, turn off the water supply.

2
step-2

Remove the Handle by lifting off the Index Cap with a flathead screwdriver. Next, Remove the handle (so the stem is visible) by loosening the Set Screw by the screw counter-clockwise. Set aside the Handle, Set Screw and Handle Button to reinstall at the end of the project.

3
step-3

If you have a plastic stem, unscrew the top cap and pop out the stem. If you have a brass stem, remove the stem by using a wrench and rotating it counter clockwise until it threads out entirely. Take a look at the Washer which is located on the lower end of the Stem. If the Washer is squeezed flat or has a groove worn in it, a Washer Kit coupled with a new Faucet Seat will likely solve your problem. When replacing the faucet seat, you can remove and replace the seat with an Allen wrench or a seat removal tool. Turn the seat counterclockwise to loosen, clockwise to tighten. Once removed, you will need to take your stem to your local home improvement store and use the Perfect Match locator system from Danco or use the online Stem Finder. This system makes it easy to find your replacement.

4
step-4

Once you have purchased your new stem, you can install it into your faucet

  • Install a brass stem by rotating clockwise until it threads entirely and tighten with a wrench.
  • Install a plastic stem by placing the stem into the handle base and screw on the top cap.

5
step-5

Now is a great time to upgrade your faucet’s appearance with universal metal handles. How to install the new universal handles

  • Place the handle adapter over the stem and tighten
  • Place the new handle on the adapter and insert the handle screw into the washer then into the handle and tighten.
  • If your new handle has an index button, place it on the handle.

Finally, turn the water back on to ensure the leak is fixed.

8 reviews for 3S-9H/C Hot/Cold Stem for Delta/Glacier Bay Faucets

Sort by
  1. 5 out of 5

    Looks like it was a match for my Pfister Classic 974-013 as well, stopped the drip.

  2. 3 out of 5

    argh. lining up the cartridge is a bear. there are ears on the left and right that have to slide into the receiving sleeve. does it matter which way the cartridge is situated? There are two choices. I finally got the bugger in and closed everything up. when i reopened the wate...Read More

    • Danco

      Good Morning Joe,
      Thank you for your feedback. It sounds like the seat and spring may not have been installed properly on the initial installation. The spring should go in first, wide end down, and then the rubber seat goes on top of the spring. Getting this out of order...Read More

  3. 3 out of 5

    I was surprised to see NO INSTRUCTION in the package, and nothing on the website either. If you enter the model number, which is “10405” in this case, “No Installation Instructions Found” come out as a new surprise from Danco. Product is good, but in mo...Read More

    • Danco

      Good Afternoon Anton,
      Thank you for your feedback. Instructions and an installation video can be found at https://www.danco.com/how-to-center/repair-leaky-two...Read More

  4. 5 out of 5

    This will fit a Glacier Bay two handle kitchen faucet, model#385-039. The Danco has a plastic stem and my original had a brass. However, it fit perfectly. The rubber seal comes with a spring. To remove the seal, all you have to do is use a small screwdriver and pry up – ...Read More

  5. 3 out of 5

    I replaced this item with very little instructions. I agree with a previous reviewer that there should be instructions in the package and also it should specify what a “seat” actually is. Remember we are the DIY consumer and not actual plumbers. Otherwise, I am sa...Read More

    • Danco

      Good Morning Jim,
      The seat is the black rubber piece that goes on top of the spring. There is a picture on step 4 in the “Installation & How To” section on the product page. It can be also shown under our How To Center which is located under the Support ...Read More

  6. 3 out of 5

    There are no instructions in the box. The online video says to “replace the seat” but then does not tell you what a “seat” is. A simple that is what the spring and gasket are would have been helpful to someone like me taking on home repairs for the fi...Read More

    • Danco

      Good Morning Christina,
      Hello! Thank you for choosing Danco products. We apologize for the confusion you experienced. We know it can be very frustrating when your DIY install doesn’t go as smoothly as you intended. We will let our Design team know about your concer...Read More

  7. 5 out of 5

    Easy, exact replacement for my Delta faucet cartridge.

  8. 4 out of 5

    Does this fit a Glacier Bay lav faucet 67090W-5001? Is this the same as GB’s part #RP22010, from the faucet’s manual? I’d look at one, but Home Depot doesn’t have them.

    • Danco

      Good Afternoon Scott,
      Thank you for your inquiry and interest in Danco products. This stem is a replacement for the RP22010 and will fit a Glacier Bay Lavatory Faucet 67090W-5001.I hope this helps in your DIY installations. If you have any more questions feel free to re...Read More
