Premium Sink Side Spray Replacement Hose

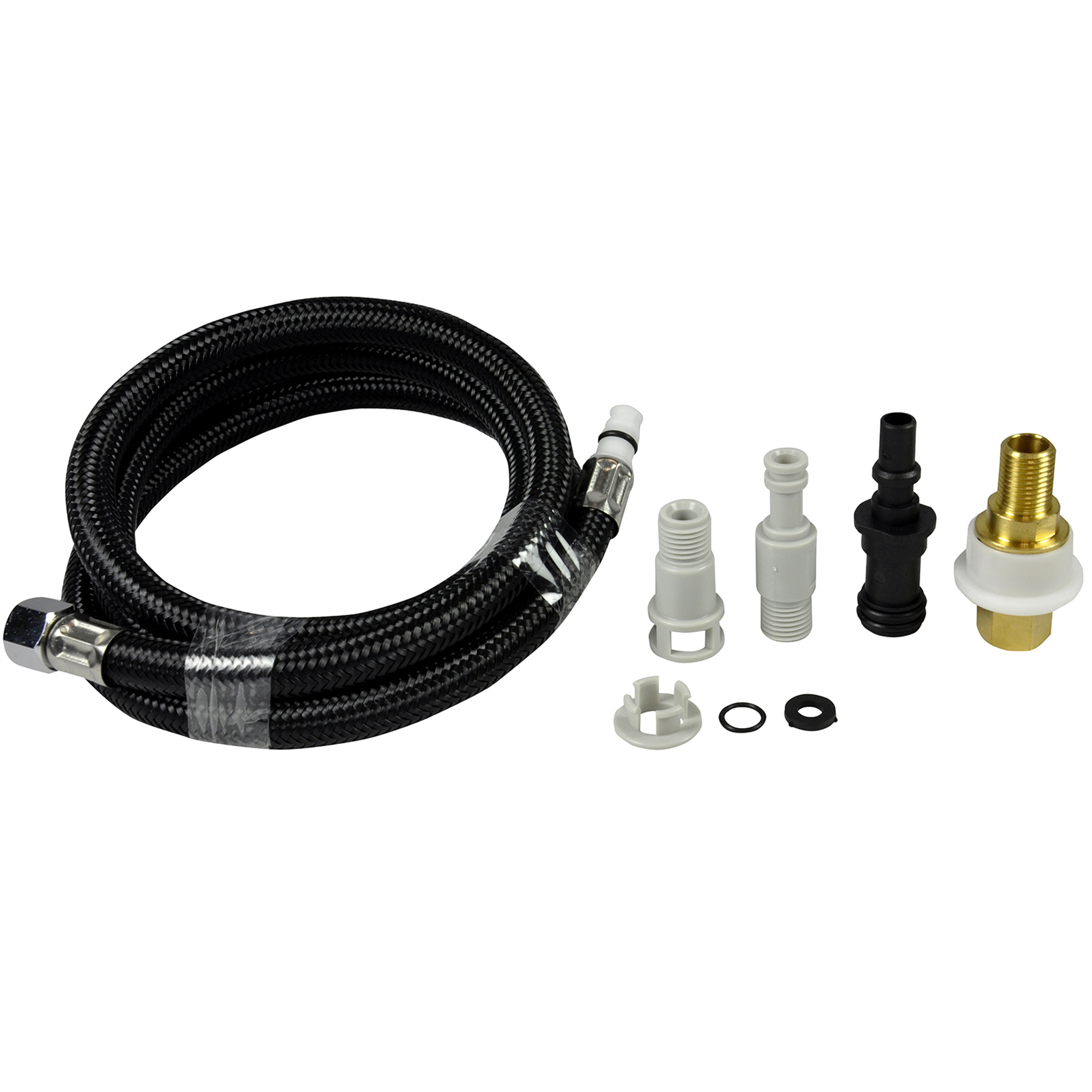

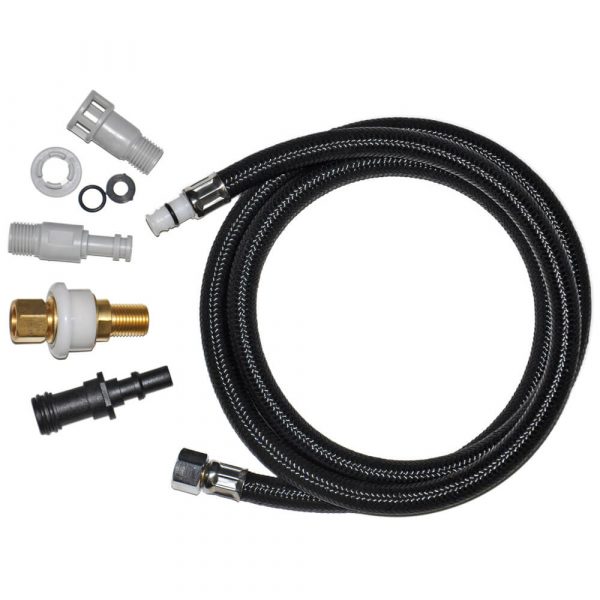

This Danco Faucet Pull-Out Spray Hose connects the pull-out spray head to the faucet. It provides an upgrade over traditional vinyl hoses. It features a 3/8 in. diameter and included are quick connect adapter fittings that make for an easy installation. The kink resistant hose provides a quiet operation and its design will work with most faucet brands, but works best with most Moen, Delta and Oak Brook faucets.

Model # 10340A

Available at

Create a New Project List

Product Description

This Danco Faucet Pull-Out Spray Hose connects the pull-out spray head to the faucet. It provides an upgrade over traditional vinyl hoses. It features a 3/8 in. diameter and included are quick connect adapter fittings that make for an easy installation. The kink resistant hose provides a quiet operation and its design will work with most faucet brands, but works best with most Moen, Delta and Oak Brook faucets.

  • Durable vinyl construction provides a reliable performance
  • Nylon braided, kink-resistant hose

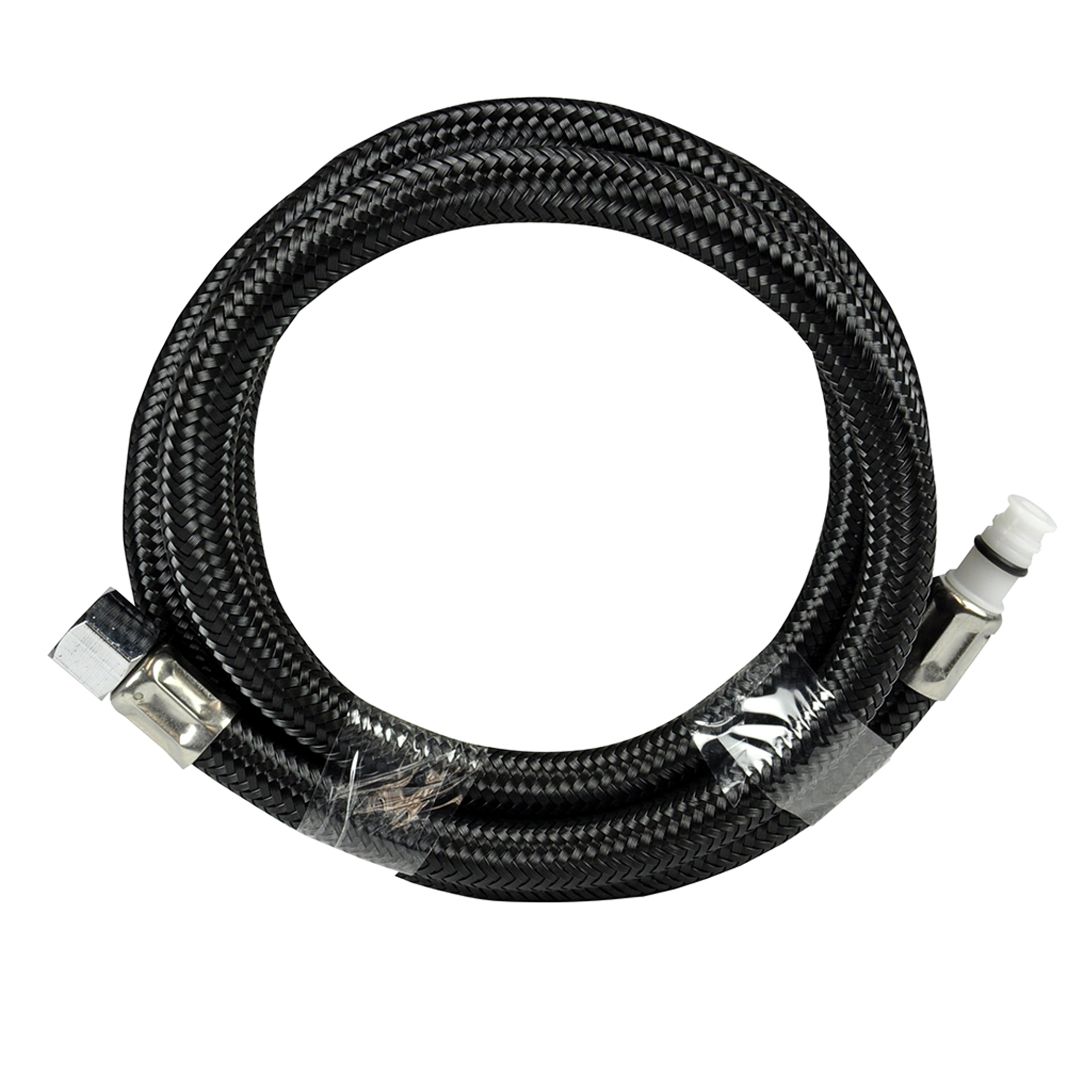

  • Features a 48 inch kink-resistant hose with a 3/8 inch diameter
  • Includes quick connect adapters to fit most Moen, Delta and Oakbrook Faucets
  • Fits many pull-out faucets from most major manufacturers that have a 1/4″ threaded connection
  • Designed for use with kitchen pullout heads
  • Quick connect adapters allows for an easy snap-on connection

Specifications

  • PKG Height (in.)9.65
  • PKG Width (in.)6.96
  • PKG Length (in.)1.77
  • PKG Weight (lb.)0.83
  • OEM BrandUniversal
  • ApplicationSink
  • Product Height(in).48.00
  • Product Width(in).0.38
  • Product Length(in).0.00
  • Product Outer Diameter (in.)0.00
  • Product Inner Diameter (in.)0.00
  • MaterialPVC
  • Product TypeSide Spray Hose

Step-by-step instructions

Yes, we love plumbers, we really do. But they're not always necessary when the power is within you to Do It Yourself. You can handle this project without worry, we're betting on it.

Tools and supplies required: Pipe Thread Tape, Adjustable Wrench, Adjustable Pliers

1
step-1

Turn off the water supply to the sink before you begin making repairs. Remove the old Hose by unscrewing the Threaded Connectors at the Spray Head and Faucet under the Sink. Next, examine the new Hose. The Round Nut connects to the Spray Head, the Hex Nut connects to the female Quick Connector.

2
step-2

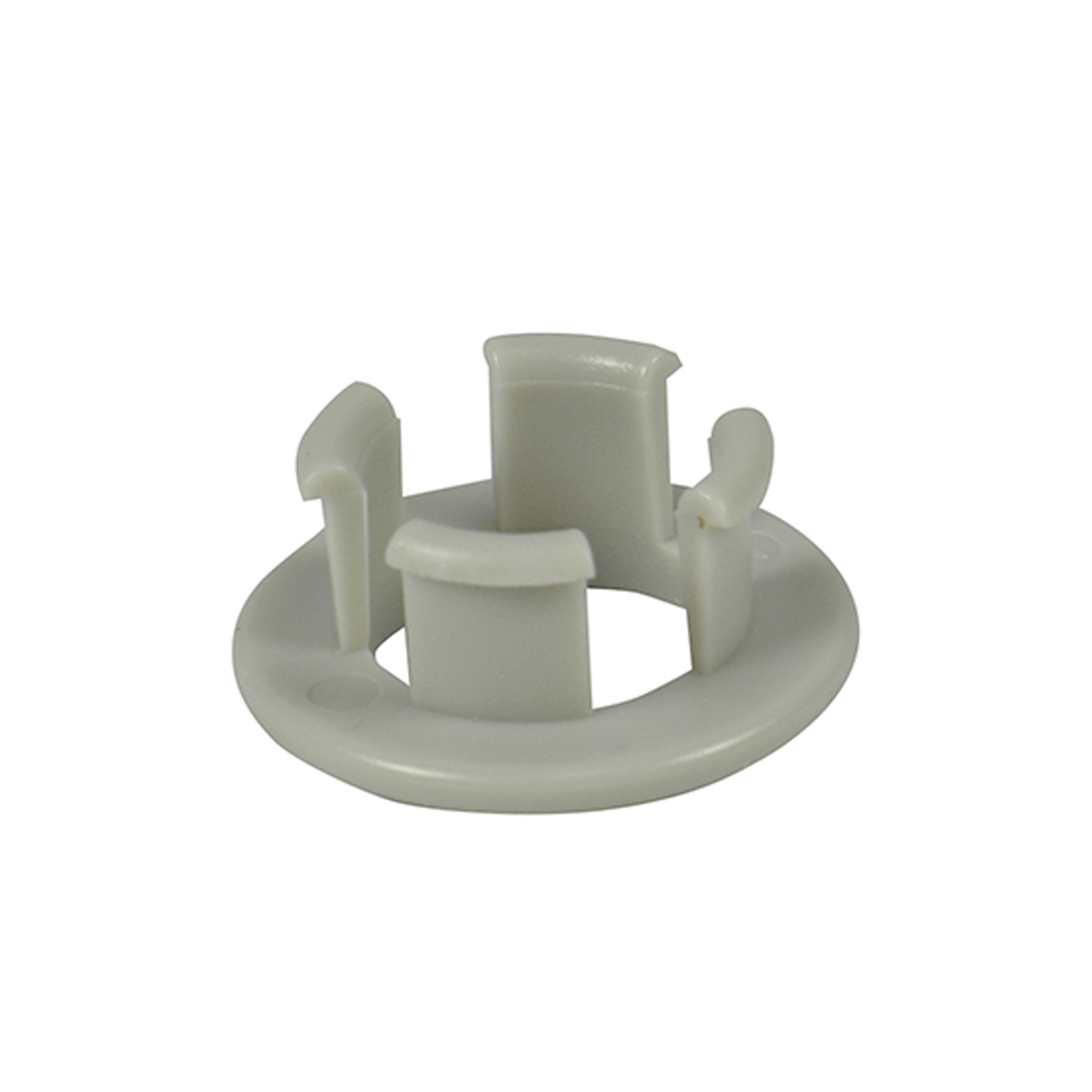

Install the new Guide in the Sink opening and tighten the Nut from the bottom of the Sink.

3
step-3

Unscrew the Nut from the Spray Head.

4
step-4

Push the hose through the Nut.

5
step-5

Snap the included Clip onto the Hose. Some Danco products use a larger clip to like the one shown to make it easier to attach. However, traditional smaller clips like this can also be used, depending on the type of clip that is included with your new Sink Spray.

6
step-6

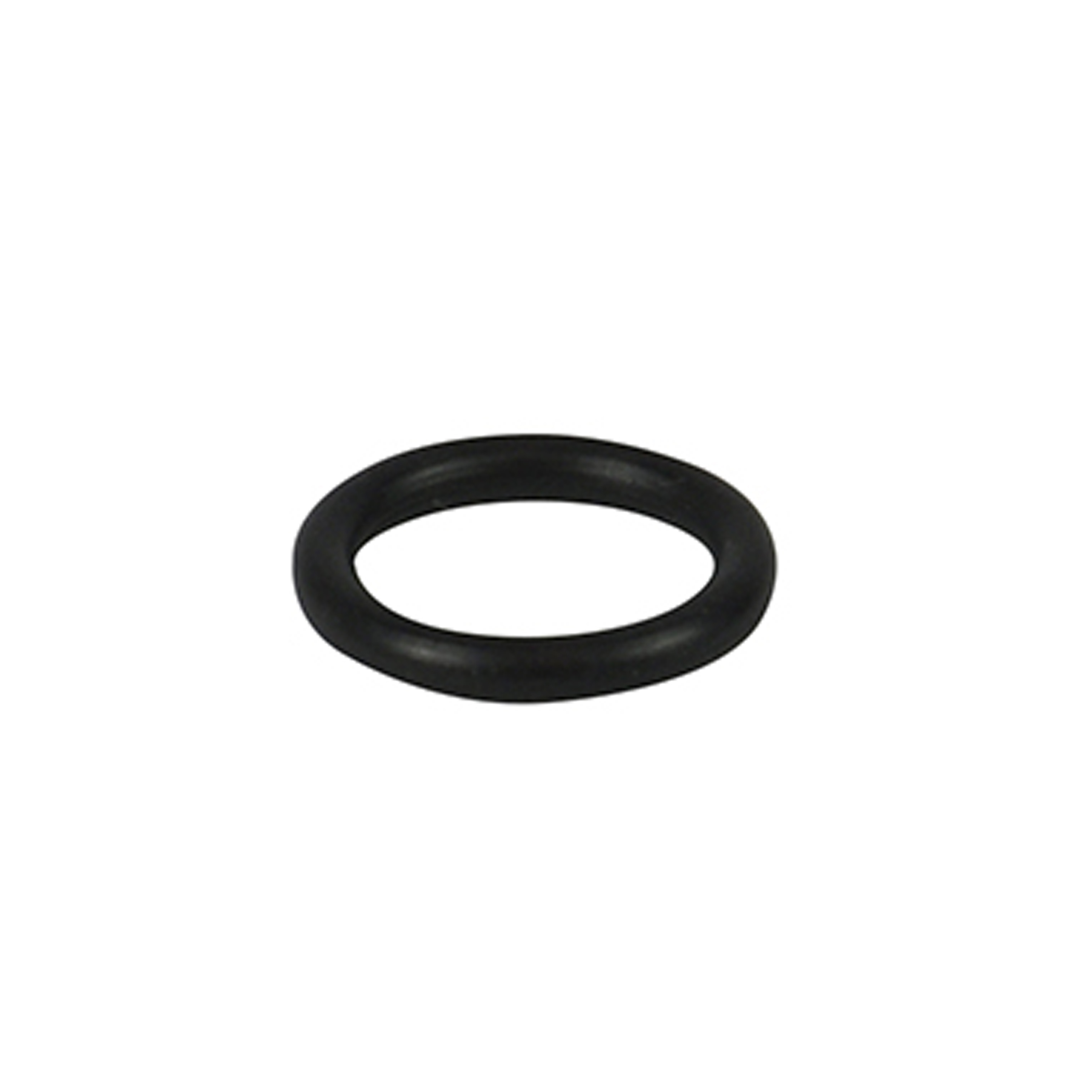

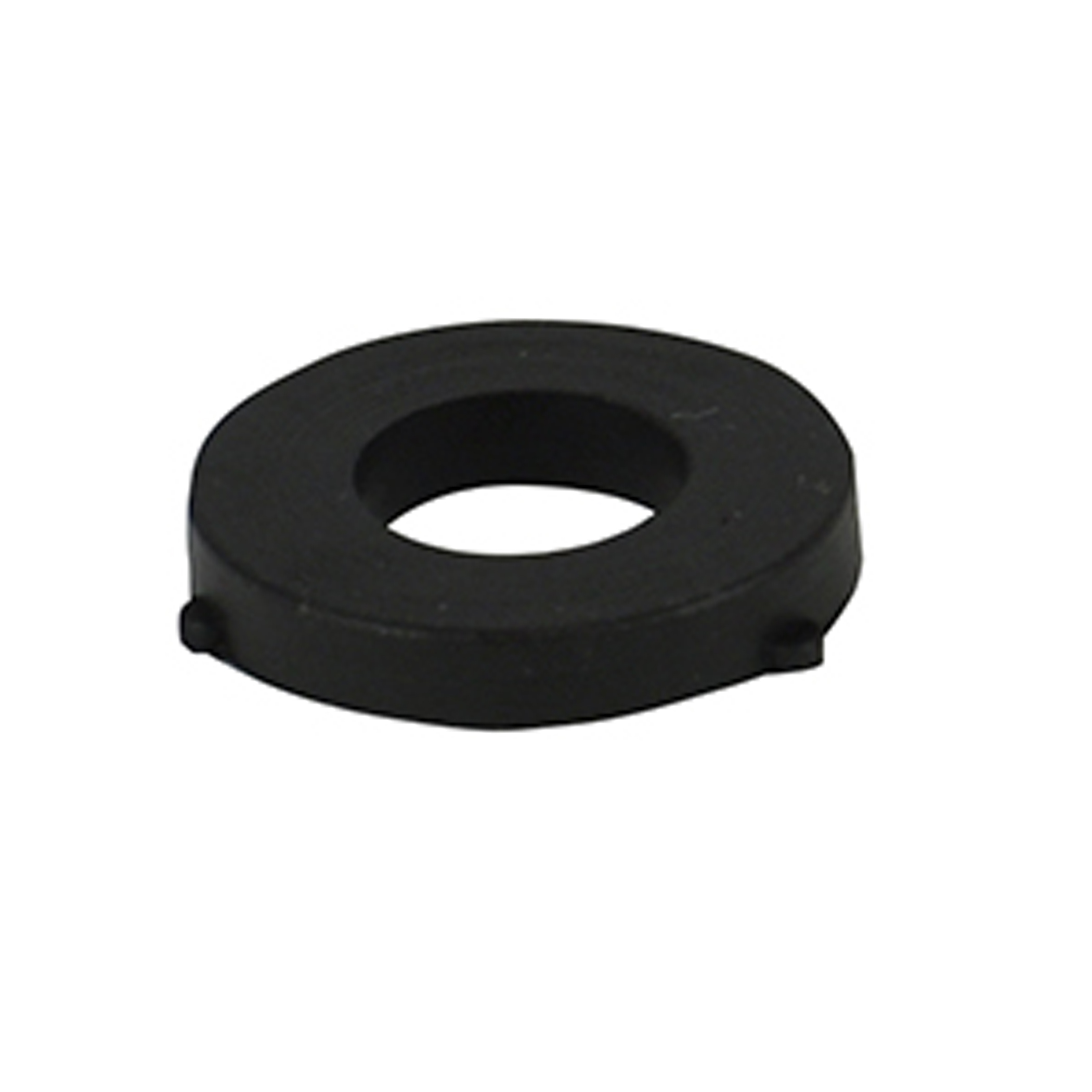

Install the Nylon Washer first onto the Hose and then place the Rubber Washer onto the Hose over the first Washer. Hand tighten Nut clockwise onto Spray Head, but be sure not to overtighten.

7
step-7

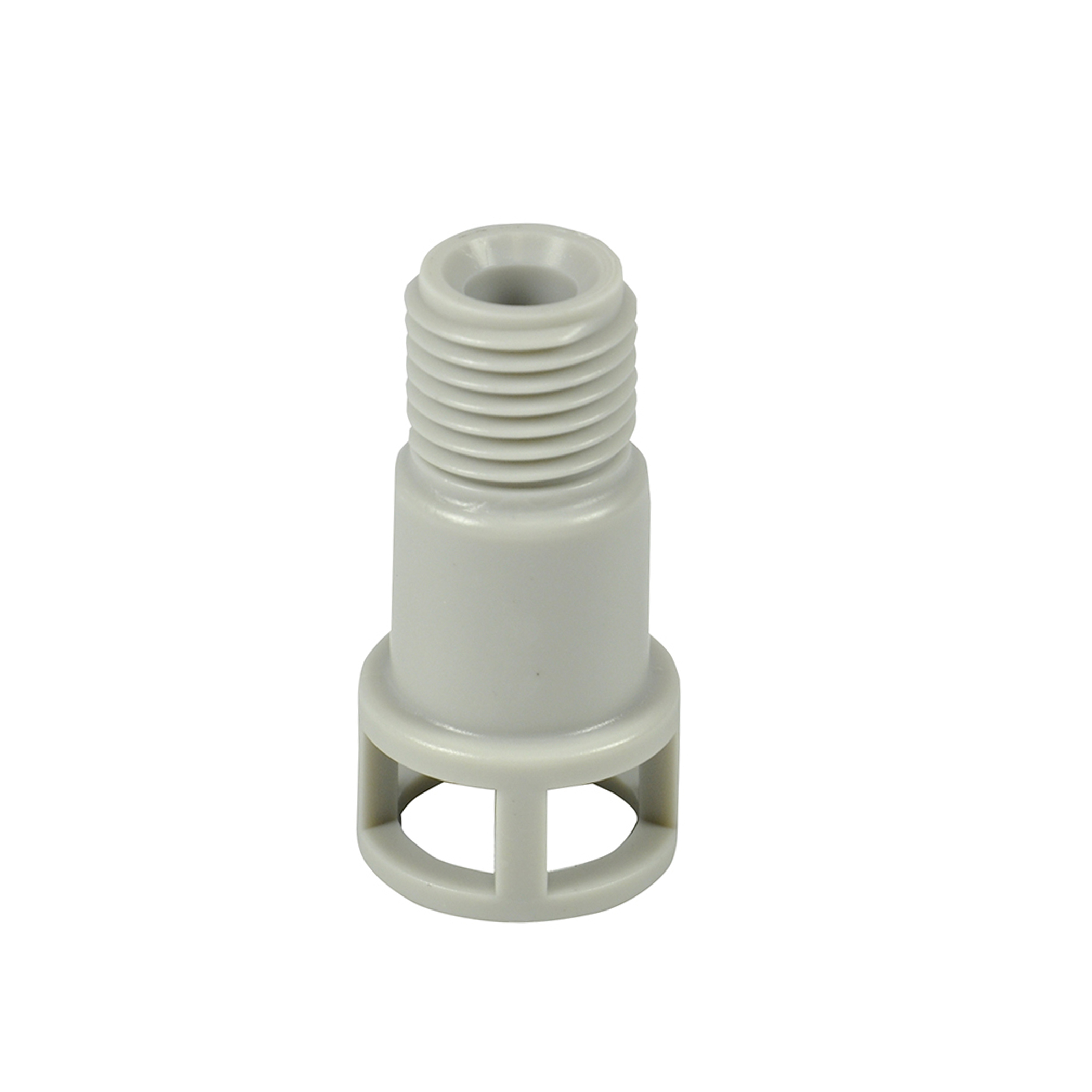

Attach the Female Quick Connect to the Hose by sliding the free end of the Hose downward through the Guide Hole until the Spray Head is fully seated in the Guide. Insert the Small Washer into the Hex Nut. Screw the Quick Connect Adapter into the Hex Nut. Tighten gently with the Adjustable Wrench and Adjustable Pliers. Over Tightening May Damage The Washer.

8
step-8

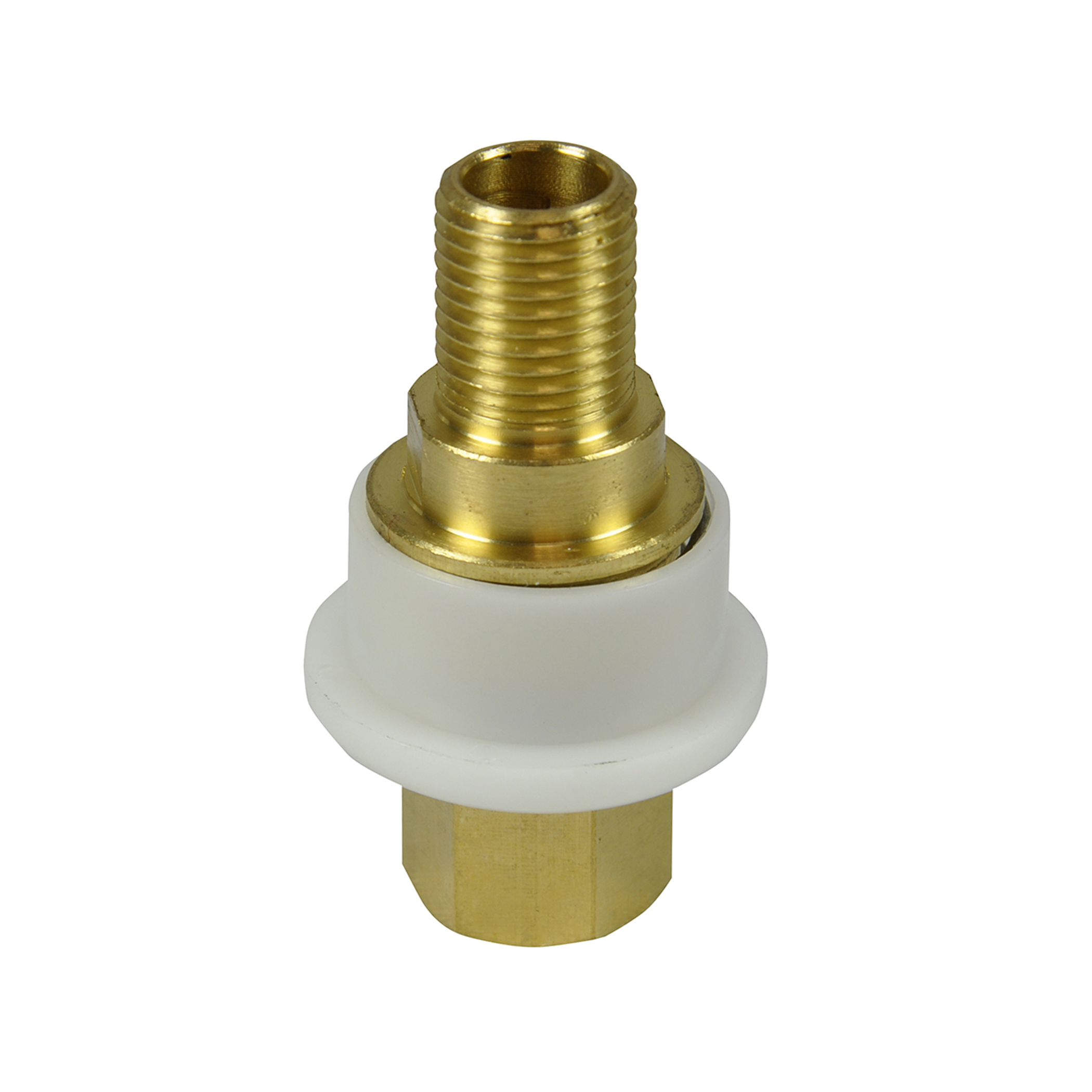

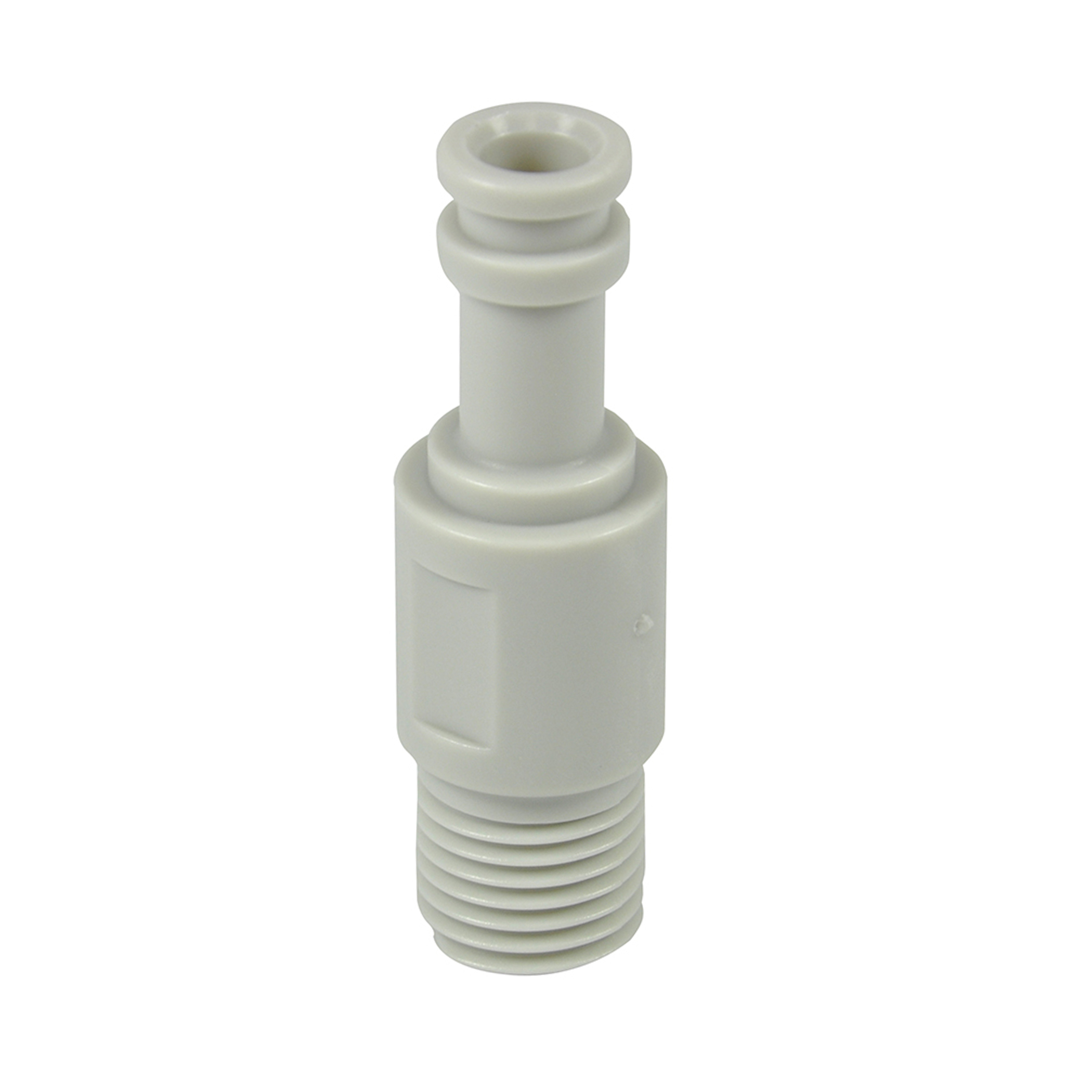

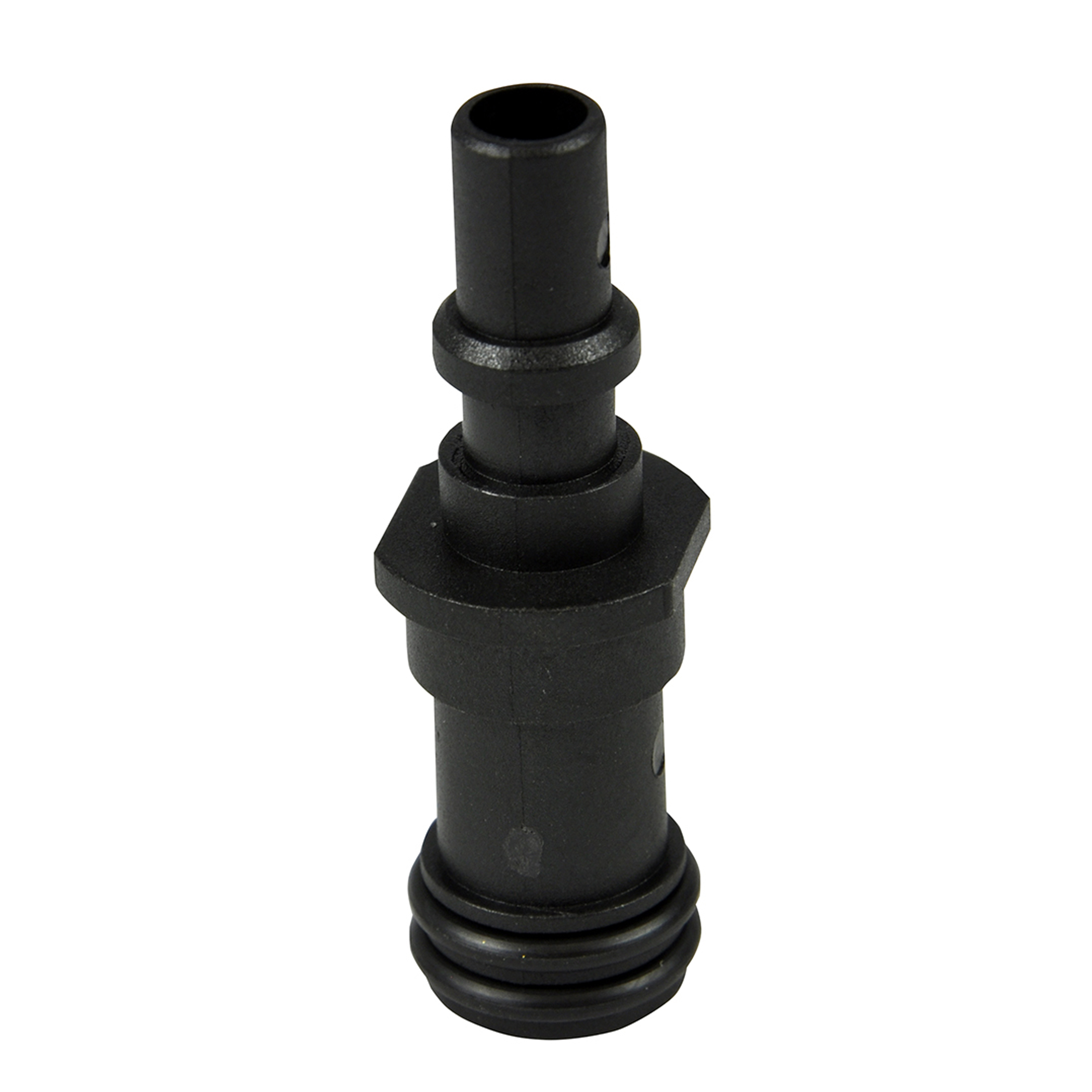

From supplied Nipple Adapters, choose a Nipple Adapter that fits the Faucet Connection under sink. Wrapping clockwise, apply 2 to 4 turns of the Pipe Thread Tape to the threads on the Male Faucet Connection or Male Nipple Adapter. Tighten the Adapter onto the Faucet Connection with the Adjustable Wrench. Do not overtighten.

9
step-9

While pulling back on the white collar on the Quick Connect Adapter, push the Quick Connect Adapter onto the Adapter Nipple on the Faucet connector.

10
step-10

When fully seated, release the white collar. Tug the Hose to make sure the Quick Connect Adapter is secure. Turn the water supply on, run water and check for leaks.
